3-3 Fail recoord dump
The fail record can be displayed by selecting Diagnosis and Fail record. (See fig. 3.)
By selecting the Fail record, the system reads the contents of the EEPROM and checks the information on
failures.
If failures are found, each failure item and the number of times on the hour meter can be scrolled at 1.5-sec-
ond intervals.
By pressing the display selector just once, the next failure point can be viewed.
If there is no failure, "No fail record" will be displayed.
(See the Section of Fail Safe for failures in detail.)

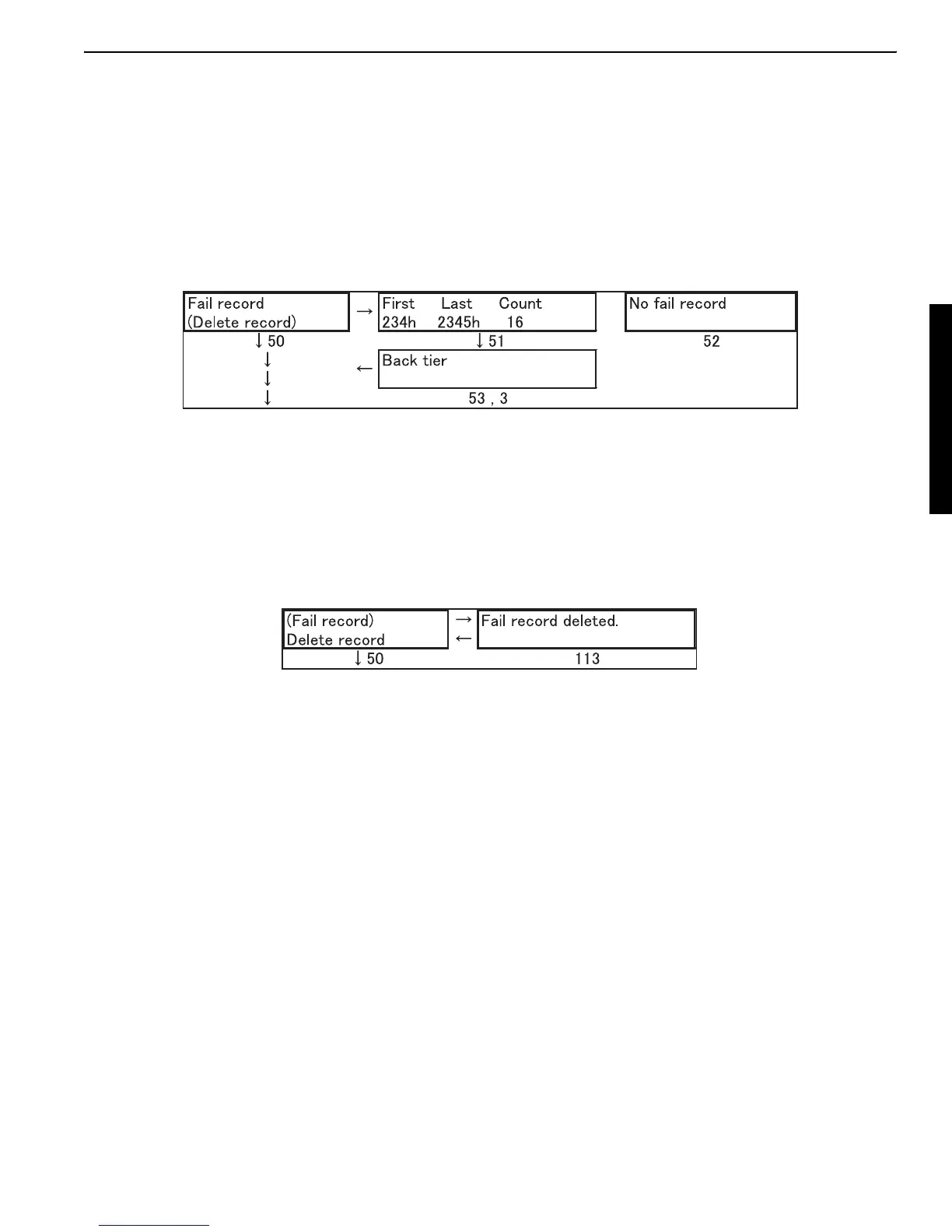

Fig. 3 Fail record dump
3-4 Deletion of Fail Record
The fail record can be deleted by selecting Diagnosis and Delete record. (See fig. 4.)
The message "Fail record deleted" will be displayed when the record is deleted.
By pressing the display selector while this message is displayed, the message to read the fail record will
appear again. The message to read the fail record will, however, appear automatically in 3 seconds without
pressing the display selector.
Fig. 4 Fail record delete
