87PERIODIC SERVICE
BChecking Seat Belt and ROPS
1. Always check condition of seat belt and ROPS
attaching hardware before operating tractor.
2. Replace if damaged.
EVERY 50 HOURS
BLubricating Grease Fittings
Apply a small amount of multipurpose grease to the
following points every 50 hours:
If you operated the machine in extremely wet and muddy
conditions, lubricate grease fittings more often.
[2WD]
[L4240, L4740, L5040, L5240, L5740]
When apply a grease to forward front axle support,
remove the breather plug and apply a grease until grease
overflows from breather plug port.
After greasing reinstall the breather plug.

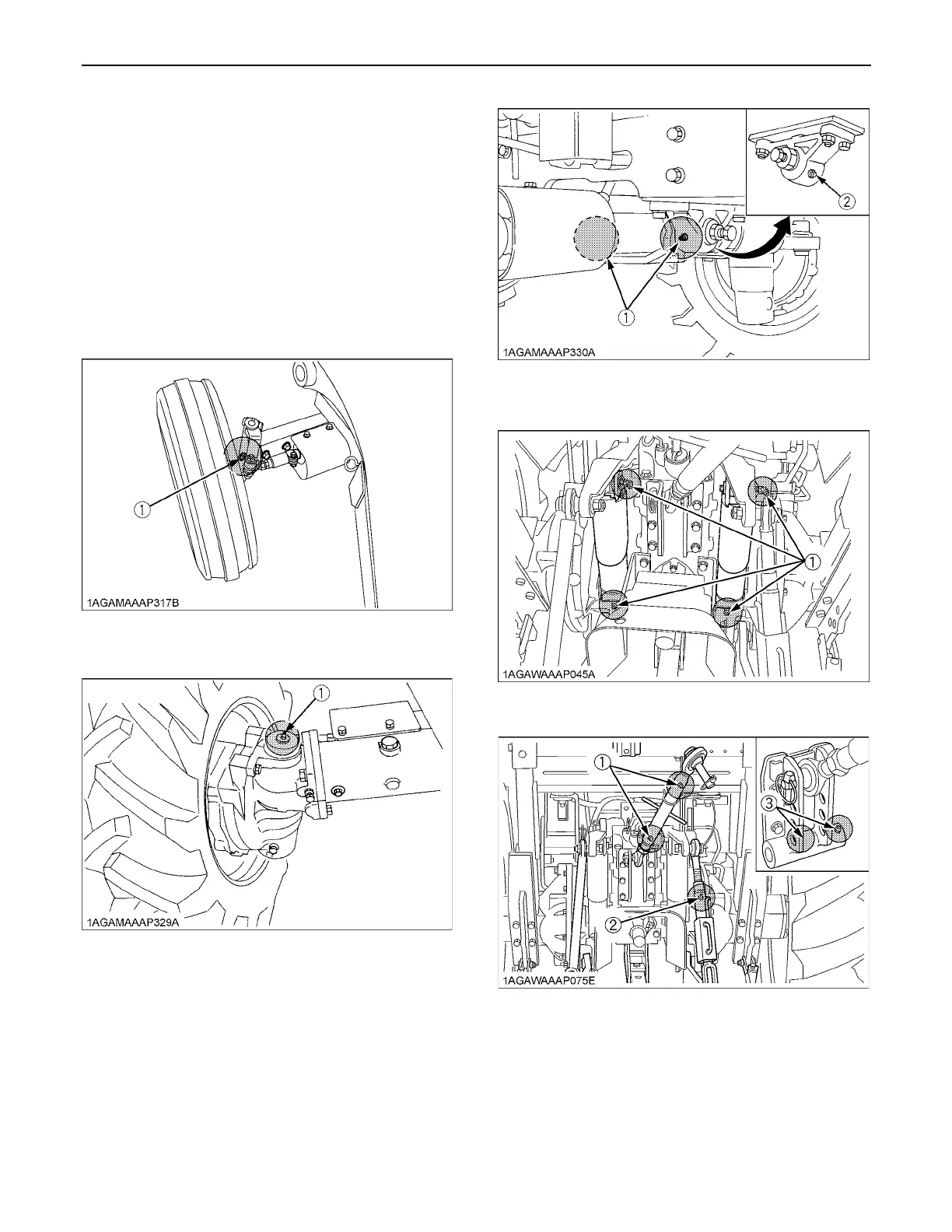

(1) Grease fitting (Knuckle shaft)[RH, LH]
(1) Grease fitting (Front wheel case support)[RH, LH]
(1) Grease fitting (Front axle support)
(2) Breather plug
(1) Grease fitting (Lift cylinder)
(1) Grease fitting (Top link)
(2) Grease fitting (Lifting rod) [RH]
(3) Grease fitting (Top link bracket)
To Next Page
