TIRES, WHEELS AND BALLAST10
BRear Wheels

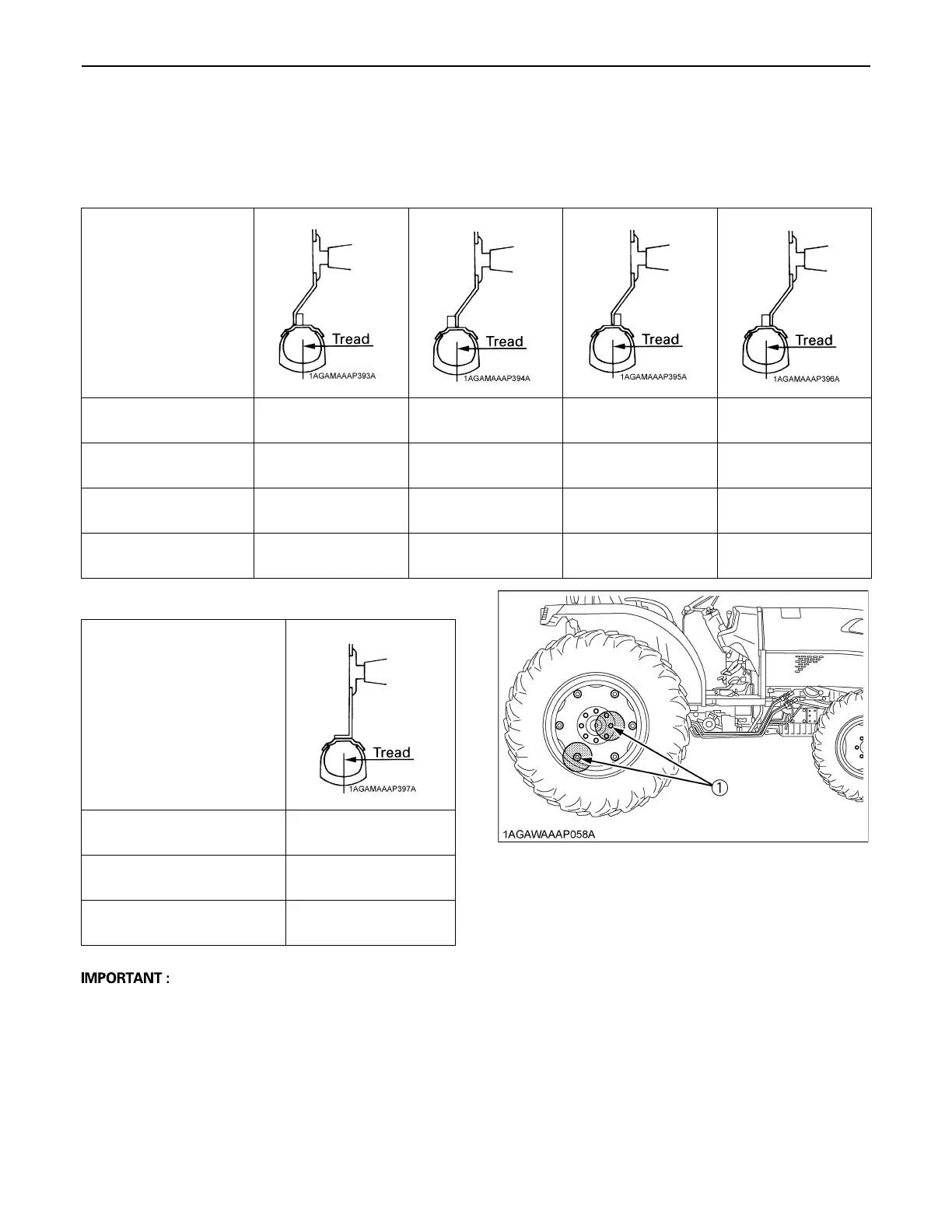

Rear tread width can be adjusted as shown with the
standard equipped tires.
To change the tread width
1. Remove the wheel rim and / or disk mounting bolts.
2. Change the position of the rim and / or disk (right and
left) to the desired position, and tighten the bolts.
A Always attach wheels as shown in the drawings.
A If not attached as illustrated, transmission parts may
be damaged.
A When re-fitting or adjusting a wheel, tighten the bolts
to the following torques then recheck after driving the
tractor 200 m (200 yards) and 10 times of shuttle
movement by 5 m (5 yards), and thereafter according
to service interval.
(See "MAINTENANCE" section.)
Models
L3240, L3540
12.4-24 Farm
1200 mm 1300 mm 1385 mm 1480 mm
L4240
13.6-24 Farm
--- 1285 mm 1435 mm 1530 mm
L4240
14.9-24 Farm
--- 1285 mm 1435 mm 1530 mm
L5240, L5740
13.6-28 Farm
1225 mm 1325 mm 1425 mm 1525 mm
Models
L3240, L3540
355 / 80-D20 Turf
1290 mm
L5240, L5740
475 / 65-D20 Turf
1415 mm
L4240, L5240, L5740
44 x 18-20 Turf
1415 mm
(1) 215 N-m (22 kgf-m)
