Kubota L3940 User Manual

14 INSTRUMENT PANEL AND CONTROLS
INSTRUMENT PANEL AND CONTROLS
B Instrument Panel, Switches and Hand Controls
C HST Type

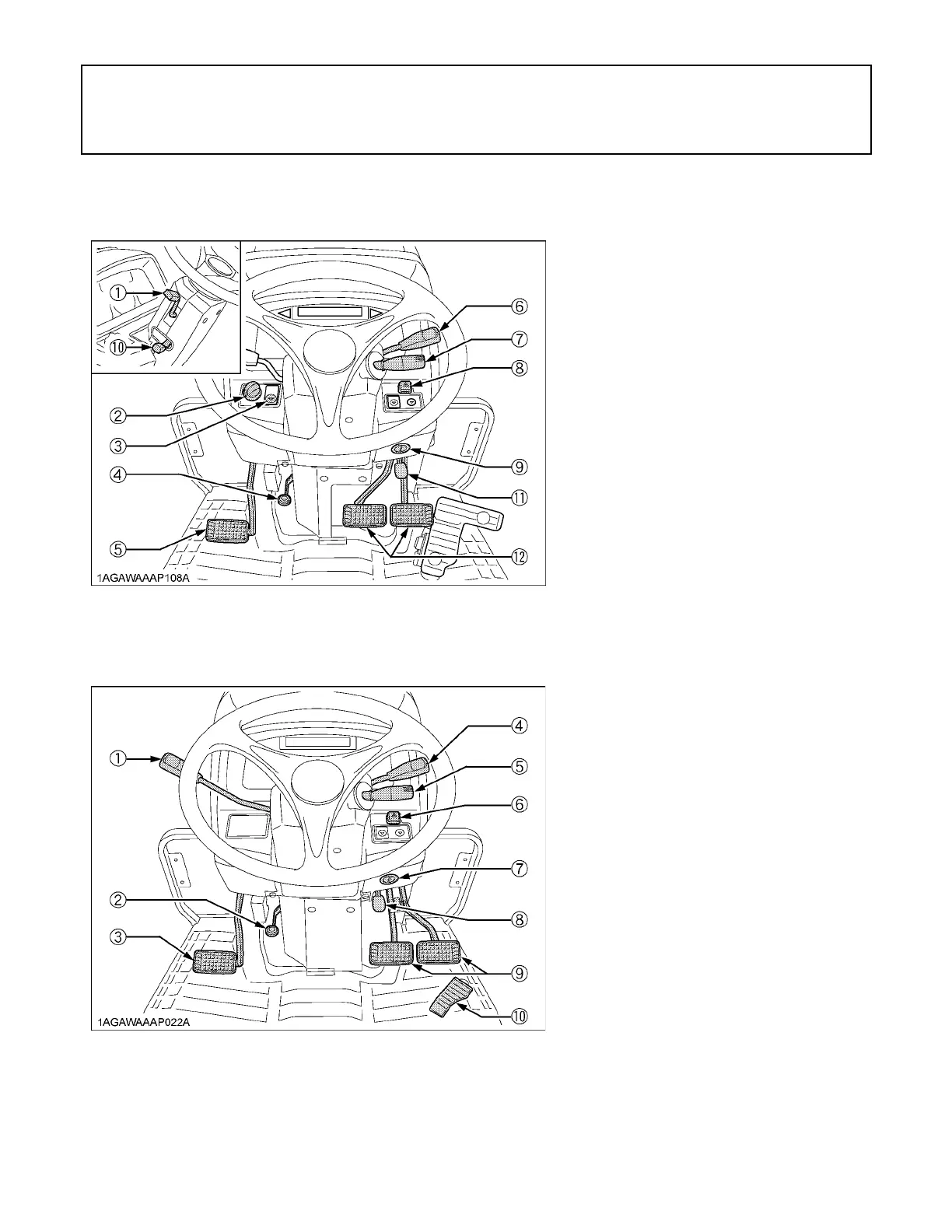

ILLUSTRATED CONTENTS
(1) H-DS lever .......................................... 36
(2) HST response control dial ................... 36
(3) HST mode select switch ...................... 37
(4) Tilt pedal ............................................. 30
(5) Clutch pedal ........................................ 34
(6) Hand throttle lever ............................... 39
(7) Turn signal / Head light switch ............. 31
(8) Hazard light switch .............................. 31
(9) Key switch ........................................... 19
(10) ATA lever .......................................... 41
(11) Parking brake lever ........................... 19, 39,
54
(12) Brake pedal ....................................... 33
C GST / Manual Transmission Type
ILLUSTRATED CONTENTS
(1) Shuttle shift lever [GST Type]
Synchro-shuttle shift lever [Manual
Transmission Type]............................. 42, 47
(2) Tilt pedal ............................................. 30
(3) Clutch pedal ........................................ 34
(4) Hand throttle lever ............................... 45, 49
(5) Turn signal / Head light switch.............. 31
(6) Hazard light switch............................... 31
(7) Key switch........................................... 19
(8) Parking brake lever ............................. 19, 46,
49, 54
(9) Brake pedal ......................................... 33
(10) Foot throttle ....................................... 45, 49

Kubota L3940 Specifications

General

Hydraulic System	Open Center
3-Point Hitch	Category I
Engine Type	Diesel
Engine Power	39 hp
PTO Power	32 hp
Turning Radius	8.2 feet
