OPERATING THE TRACTOR38

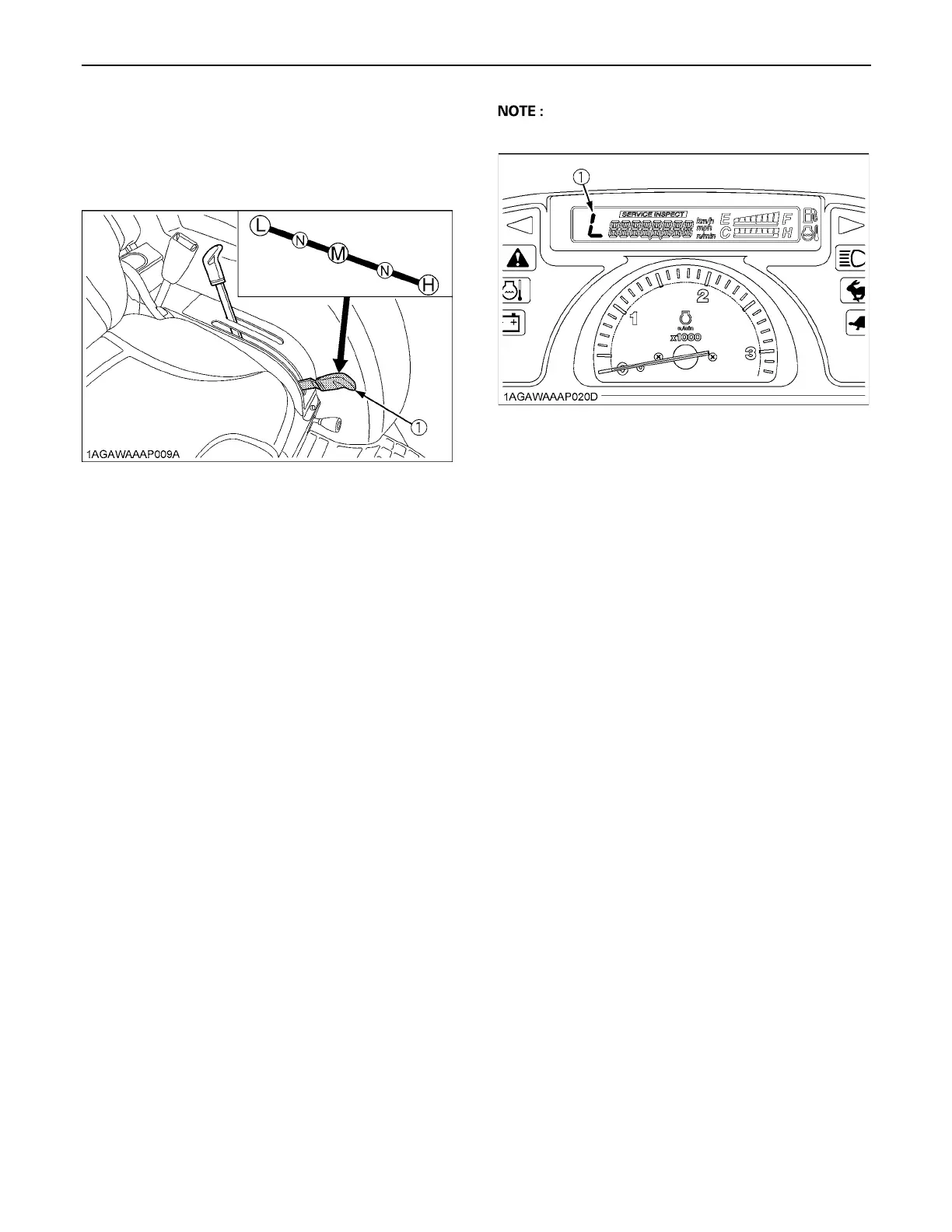

BRange Gear Shift Lever (L-M-H)
The range gear shift can only be shifted when the tractor
is completely stopped and the speed control pedal is in
the neutral position.
IMPORTANT:
To avoid transmission and shift linkage damage when
shifting:
A Completely stop the tractor using the brake pedals.
A Do not force the range gear shift lever.
A If it is difficult to shift the lever into L, M, or H from
neutral position:
On slopes be sure to set the parking brake before
starting the procedure.
(1) Slightly depress the speed control pedal to rotate
the gears inside of the transmission.
(2) Release the speed control pedal to the neutral
position.
(3) Depress the clutch pedal, wait for a moment and
then shift the lever.
A The range gear shift number being selected appears
on the display.
(1) Range gear shift lever (L-M-H) (H) "HIGH"
(M) "MIDDLE"
(L) "LOW"
(N) "NEUTRAL POSITION"
(1) Gear shift number (H-M-L) N: "NEUTRAL"
