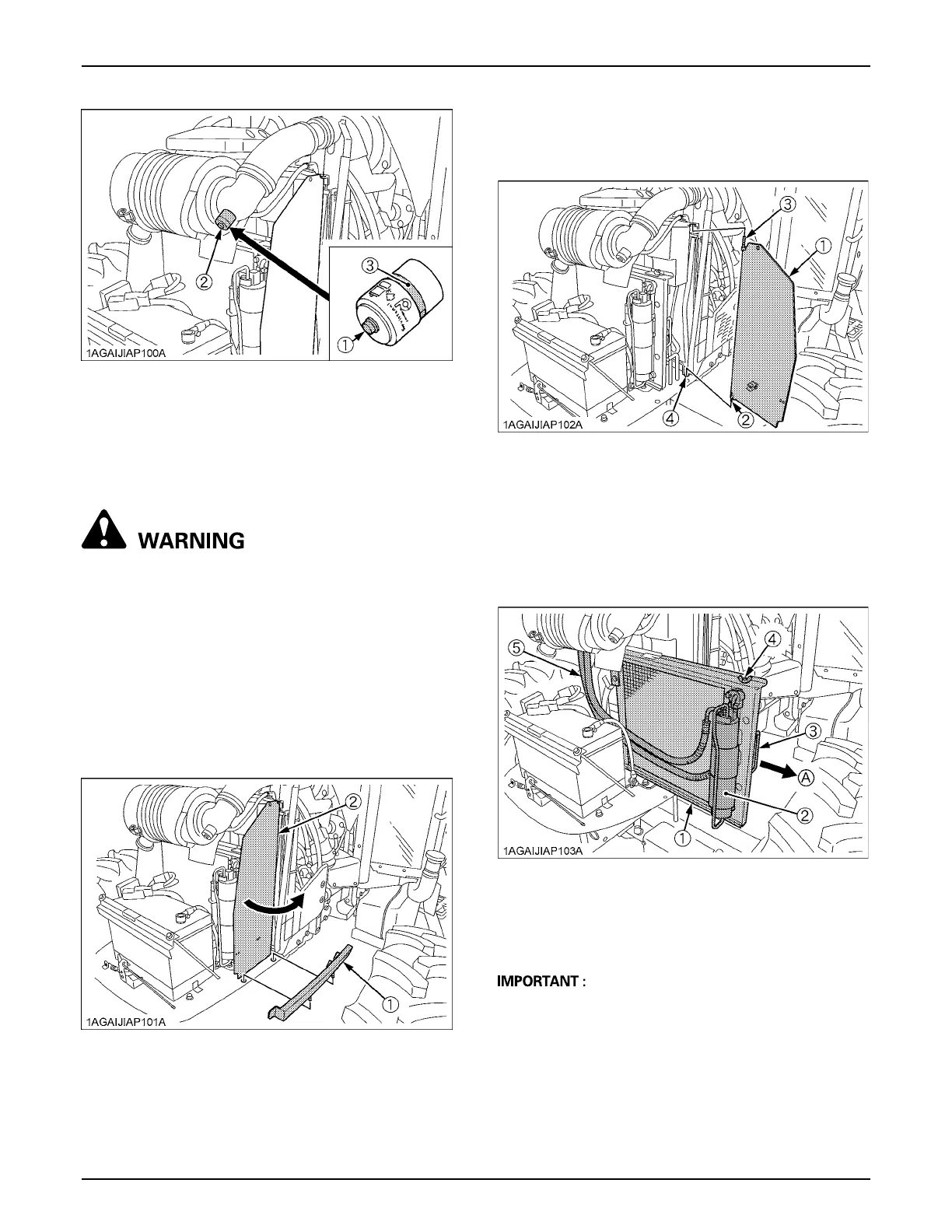

PERIODIC SERVICE88
BCleaning Grill, Radiator Screen, Oil Cooler
and Battery Mount
To avoid personal injury or death:
A Be sure to stop the engine before removing the
screen.
A The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning them, wait until they cool down
enough.
C Opening the panel
1. Detach the side cover.
2. To open the panel, pull its front outward.
3. To close the panel, push it inward to get locked and
attach the side cover.
C Detaching the panel
1. Raise the panel until pin (A) clears the hole, and take
out the panel.
2. Attaching the panel is performed vice versa.
C Sliding the air conditioner condenser
1. Loosen the wing nut.
2. Hold the handle, slide the air conditioner condenser
assembly toward yourself.
A Do not hold the air conditioner receiver or the air
conditioner pipes when sliding out the condenser for
cleaning.
(1) "RESET" button
(2) Dust indicator
(3) Red signal
(1) Side cover
(2) Panel
(1) Panel
(2) Pin (A)
(3) Pin (B)
(4) Hole
(1) Condenser
(2) Receiver
(3) Handle
(4) Wing nut
(5) Air conditioner hose
(A) "PULL"
