71CAB OPERATION
AIR CONDITIONER
To avoid personal injury;
A If the window fails to defrost in extreme
conditions or becomes cloudy when
dehumidifying the CAB, wipe off moisture with
a soft cloth.
A Do not block all the air outlets of the air
conditioner. A problem could occur.
BAirflow
Air in the CAB and fresh air introduced into the CAB flow
as shown below. Adjust the seven air ports to obtain the
desired condition.
A Do not pour water directly into the fresh air port while
washing the vehicle.
BAir Control Vent

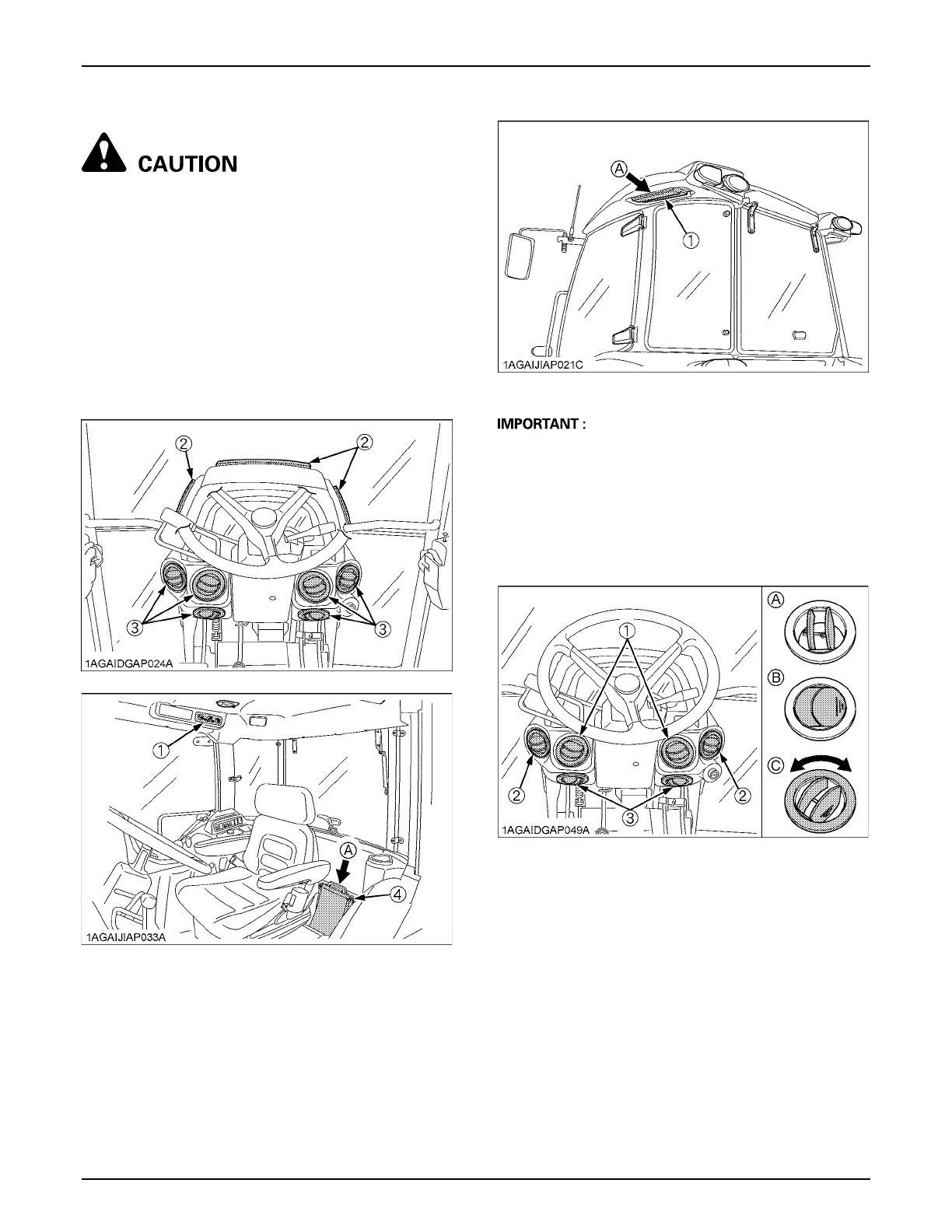

C Dashboard air outlet
The dashboard air outlets can be independently adjusted
as required.
(1) Control panel
(2) Defroster air outlets
(3) Dashboard air outlets
(4) Inner air filter
(A) Inner air recirculation
(1) Fresh air filter (A) "FRESH AIR INLET"
(1) Face area air outlets
(2) Back area air outlets
(3) Feet area air outlets
(A) "OPEN"
(B) "SHUT"
(C) "TURN"
