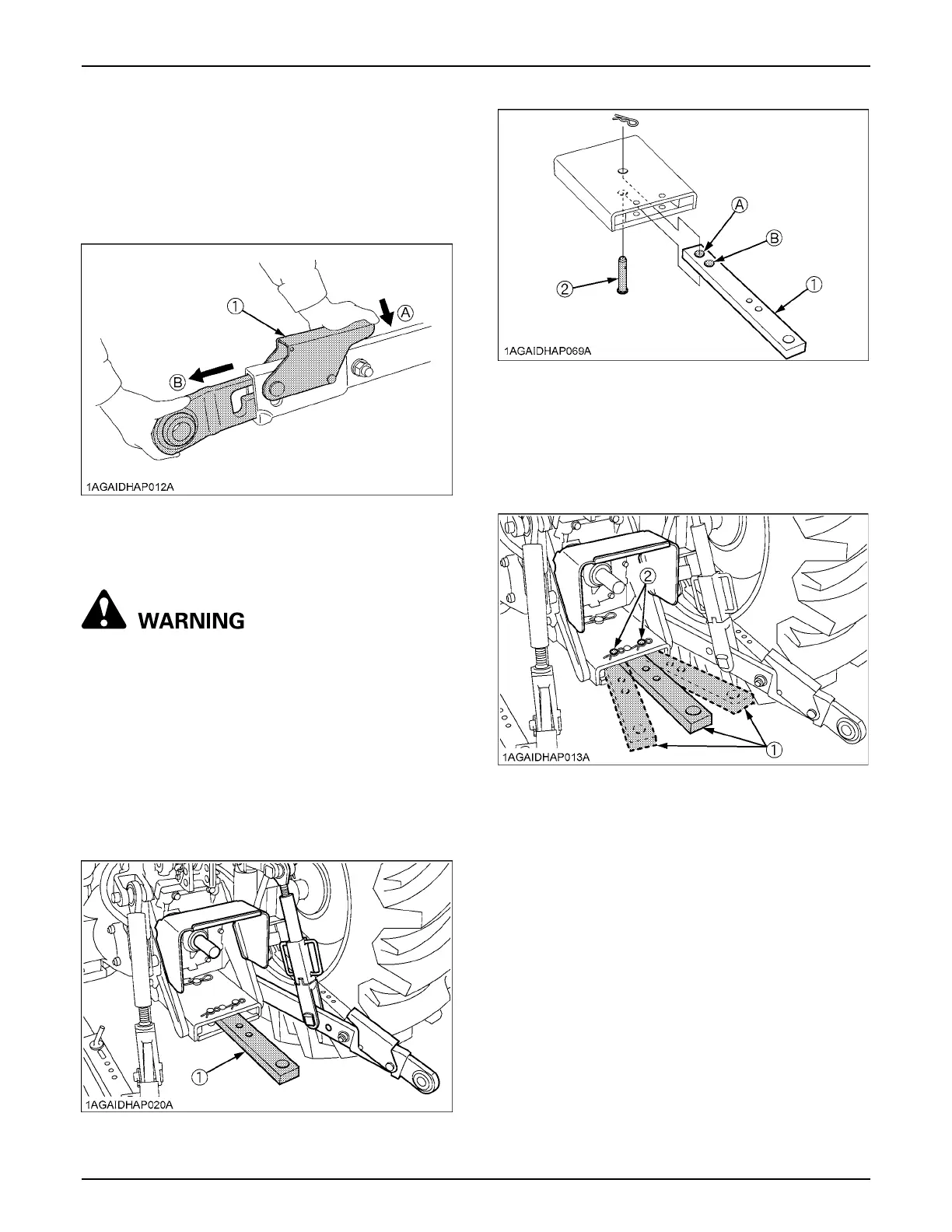

3-POINT HITCH & DRAWBAR54
BTelescopic Lower Links
To attach an implement, follow the instructions below:
1. Push the levers, pull out the lower link ends, and
attach to the implement.
2. Back up the tractor slightly to make sure the lower links
are pushed in securely.
DRAWBAR
To avoid personal injury or death:
A Never pull from the top link, the rear axle or any
point above the drawbar. Doing so could cause
the tractor to tip over rearward causing
personal injury or death.
BAdjusting Drawbar Length
When towing an implement, it is recommended that the
(A) hole in drawbar be utilized.
The drawbar load is specified in the "IMPLEMENT
LIMITATIONS" section.
BSwing Drawbar
The drawbar can be used in 3 different ways as illustrated
below. Assemble it correctly with locating pins.
(1) Lever (A) "PUSH"
(B) "PULL OUT"
(1) Drawbar
(2) Pivot pin
Holes: (A), (B)
(1) Drawbar
(2) Locating pin
To Next Page
