101PERIODIC SERVICE

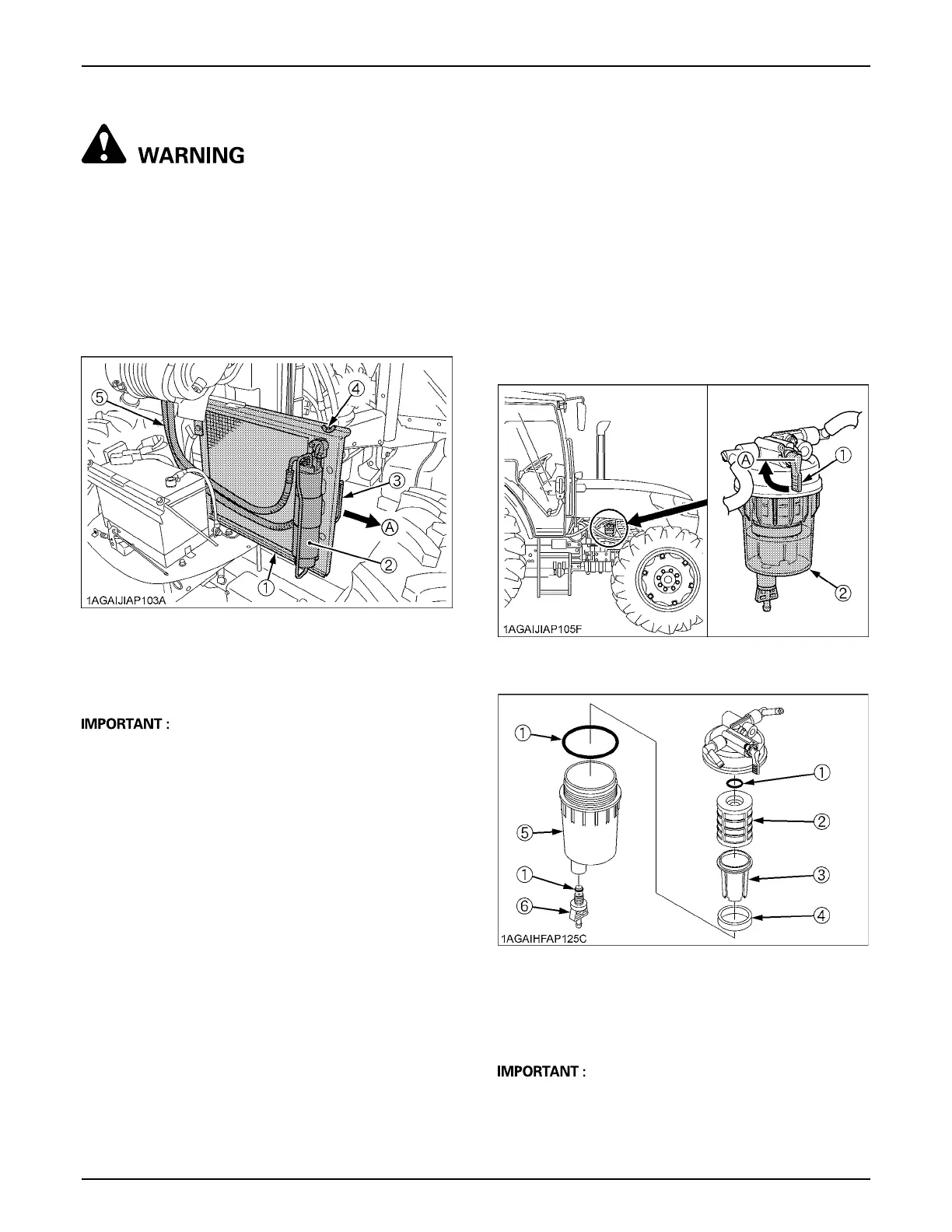

C Sliding the air conditioner condenser
To avoid personal injury or death:
A Be sure to stop the engine before removing the
screen.
A The condenser and receiver become hot while
the air conditioner is running. Before checking
or cleaning them, wait until they cool down
enough.
1. Loosen the wing nut.
2. Hold the handle, slide the air conditioner condenser
assembly toward yourself.
A Do not hold the air conditioner receiver or the air
conditioner pipes when sliding out the condenser for
cleaning.
EVERY 400 HOURS
BCleaning Water Separator
This job should not be done in the field, but in a clean
place.
1. Close the fuel shutoff-valve.
2. Unscrew the cup and remove it, then rinse the inside
with kerosene.
3. Take out the element and dip it in the kerosene to
rinse.
4. After cleaning, reassemble the water separator,
keeping out dust and dirt.
5. Bleed the fuel system.
(See "SERVICE AS REQUIRED" in "PERIODIC
SERVICE" section.)
A If the water separator and/or fuel filter is not well
maintained, the supply pump and injector may be
damaged earlier than expected.
(1) Condenser
(2) Receiver
(3) Handle
(4) Wing nut
(5) Air conditioner hose
(A) "PULL"
(1) Fuel shutoff-valve
(2) Cup
(A) "CLOSE"
(1) O ring
(2) Element
(3) Element cup
(4) Red float
(5) Cup
(6) Drain plug
