OPERATING THE TRACTOR26
BSeat Belt
To avoid personal injury or death:
A Always use the seat belt when any ROPS or
CAB are installed.
Adjust the seat belt for proper fit and connect the buckle.
This seat belt is auto-locking retractable type.

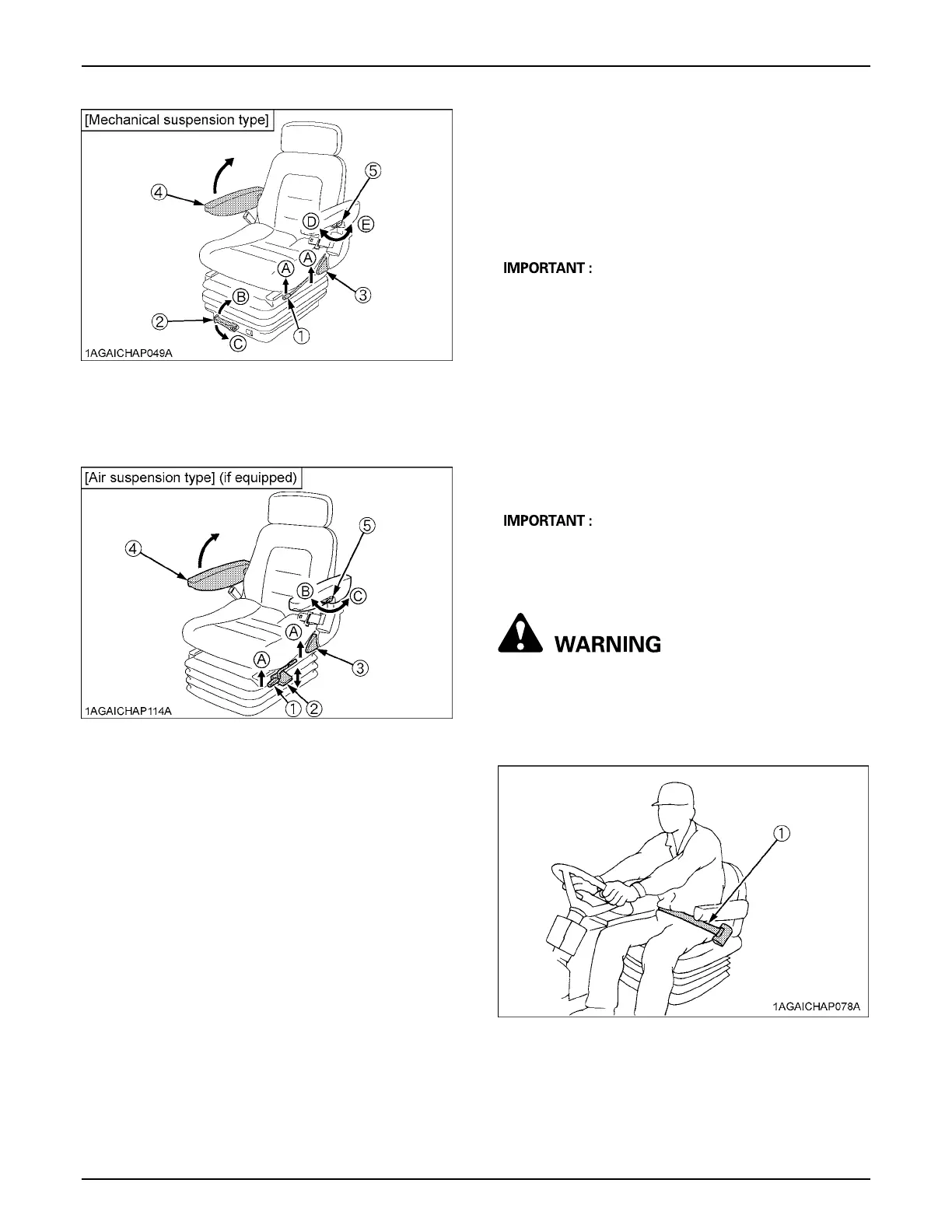

(1) Travel adjust lever
(2) Weight adjust lever
(3) Backrest tilt adjust lever
(4) Arm rest
(5) Arm rest angle adjust knob
(A) "UNLOCK"
(B) "TO INCREASE TENSION"
(C) "TO DECREASE TENSION"
(D) "TO INCREASE ANGLE"
(E) "TO DECREASE ANGLE"
(1) Travel adjust lever
(2) Weight / Height adjust lever
(3) Backrest tilt adjust lever
(4) Arm rest
(5) Arm rest angle adjust knob
(A) "UNLOCK"
(B) "TO INCREASE ANGLE"
(C) "TO DECREASE ANGLE"
C Travel adjustment
Unlock the travel adjust lever and slide the seat
backward or forward, as required. The seat will lock in
position when the lever is released.
C Weight adjustment [Mechanical suspension type]
Turn the weight adjust lever to achieve the optimum
suspension setting.
C Height adjustment [Mechanical suspension type]
Pull up with your hands the seat pan to the desired height
of the 3 available positions.
Once it has reached the highest level, it will return to the
lowest level.
C Weight and Height adjustment
[Air suspension type] (if equipped)
The seat should be adjusted for the operator’s weight by
briefly pulling up or pushing down the actuator lever of
the weight and height adjuster with the tractor in a
stationary position and the operator sitting on the seat.
The operator must sit absolutely during adjustment.
A In order to avoid damage of the seat, do not operate
the actuator lever for more than 1 minute.
C Tilt adjustment
Pull the backrest tilt adjust lever and tilt the backrest to
the desired position.
C Arm rest
Arm rest may be set at upright position if desired.
C Arm rest angle adjustment
Turn the arm rest angle adjust knob to the desired angle.
A After adjusting the operator's seat, be sure to check
to see that the seat is properly locked.
(1) Seat belt
