99PERIODIC SERVICE
C Adjusting procedures
1. Detach the snap ring.
2. Loosen the tie-rod nut.
3. Turn the tie-rod joint to adjust the rod length until the
proper toe-in measurement is obtained.
4. Retighten the tie-rod nut.
5. Attach the snap ring of the tie-rod joint.
BDraining Fuel Tank Water
Loosen the drain plug at the bottom of the fuel tank to let
sediments, impurities and water out of the tank. Finally
tighten up the plug.
A If the fuel contains impurities, such as water, drain the
fuel tank at shorter intervals.
A Drain the fuel tank before operating the tractor after a
long period of storage.
A The fuel tank is made of plastic. Be careful not to
overtighten the bolts.
BCleaning Inner Air Filter
Remove the knob bolts and pull out filter. Blow air from the
direction opposite to the filter's normal air flow.
Pressure of compressed air must be under 205 kPa (2.1
kgf/cm , 30 psi).

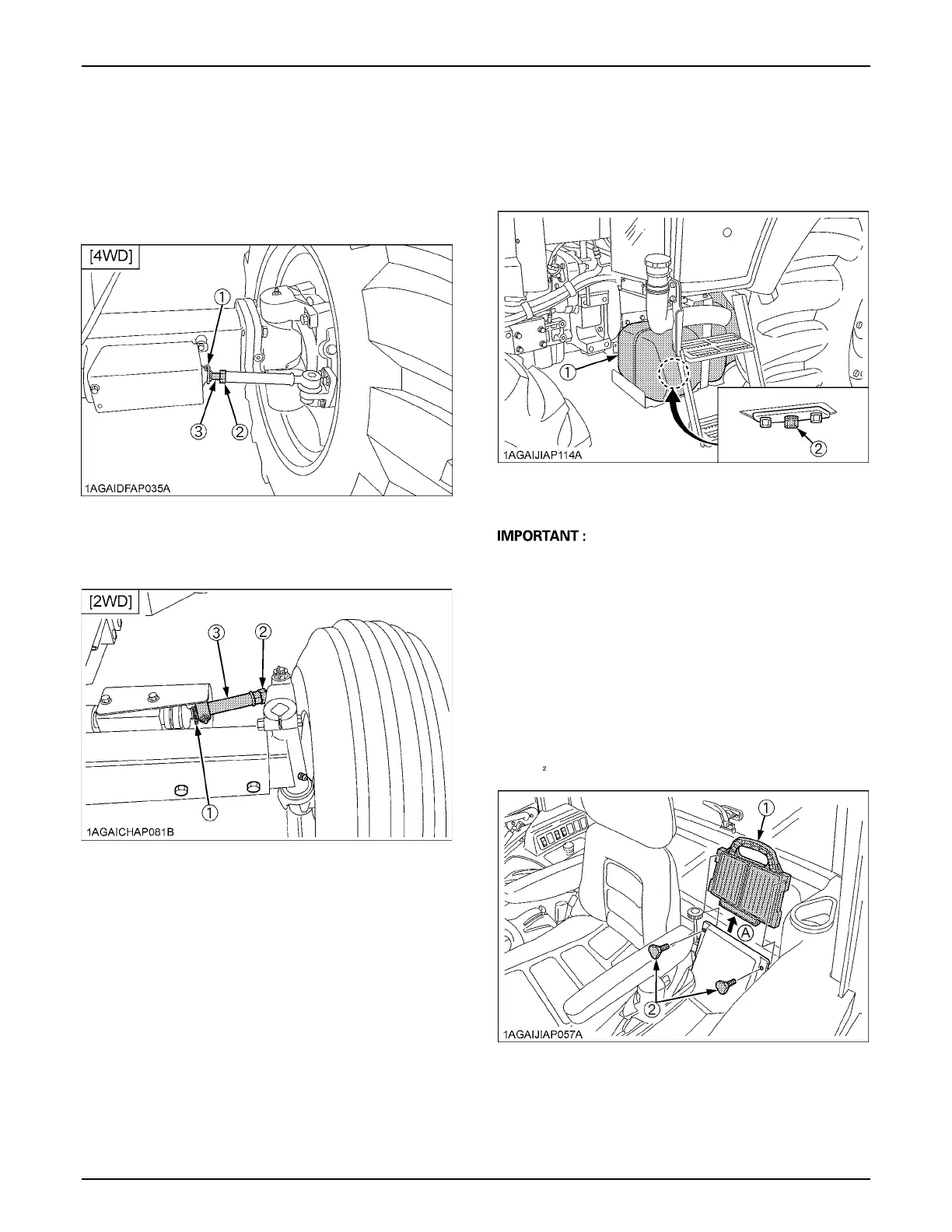

(1) Snap ring
(2) Tie-rod nut
(167 to 196 N-m, 17 to 20 kgf-m, 123.2 to 144.6 ft-lbs)
(3) Tie-rod joint
(1) Snap ring
(2) Tie-rod nut
(167 to 196 N-m, 17 to 20 kgf-m, 123.2 to 144.6 ft-lbs)
(3) Tie-rod joint
(1) Fuel Tank (Left)
(2) Drain plug
(1) Inner air filter
(2) Knob bolts
(A) "PULL OUT"
To Next Page
