47HYDRAULIC UNIT
BFloat Control
Place both the draft control lever and the position control
lever in the float position to make the lower links move
freely along with the ground conditions.
B3-point Hitch Lowering Speed
To avoid personal injury:
A Fast lowering speed may cause damage or
injury. Lowering speed of implement should be
adjusted to 2 or more seconds.
The lowering speed of the 3-point hitch can be controlled
by adjusting the 3-point hitch lowering speed knob.
REMOTE HYDRAULIC CONTROL SYSTEM
The hydraulic auxiliary control valves can be installed up
to triple segments.
It is not possible to use triple segments with flow control
valve.
BRemote Control Valve
There are two types of remote valves available for these
models.
A Double acting valve with detents and self cancelling:
This valve may be placed in the detent mode. The
lever will stay in this position until the pressure reaches
a predetermined level or a cylinder reaches the end of
its stroke. Then it will automatically return to neutral
A Double acting valve with float position:
This valve may be placed in the float mode with the
control lever all the way forward. The cylinder is free to
extend or retract, letting an implement such as a
loader bucket follow the ground.

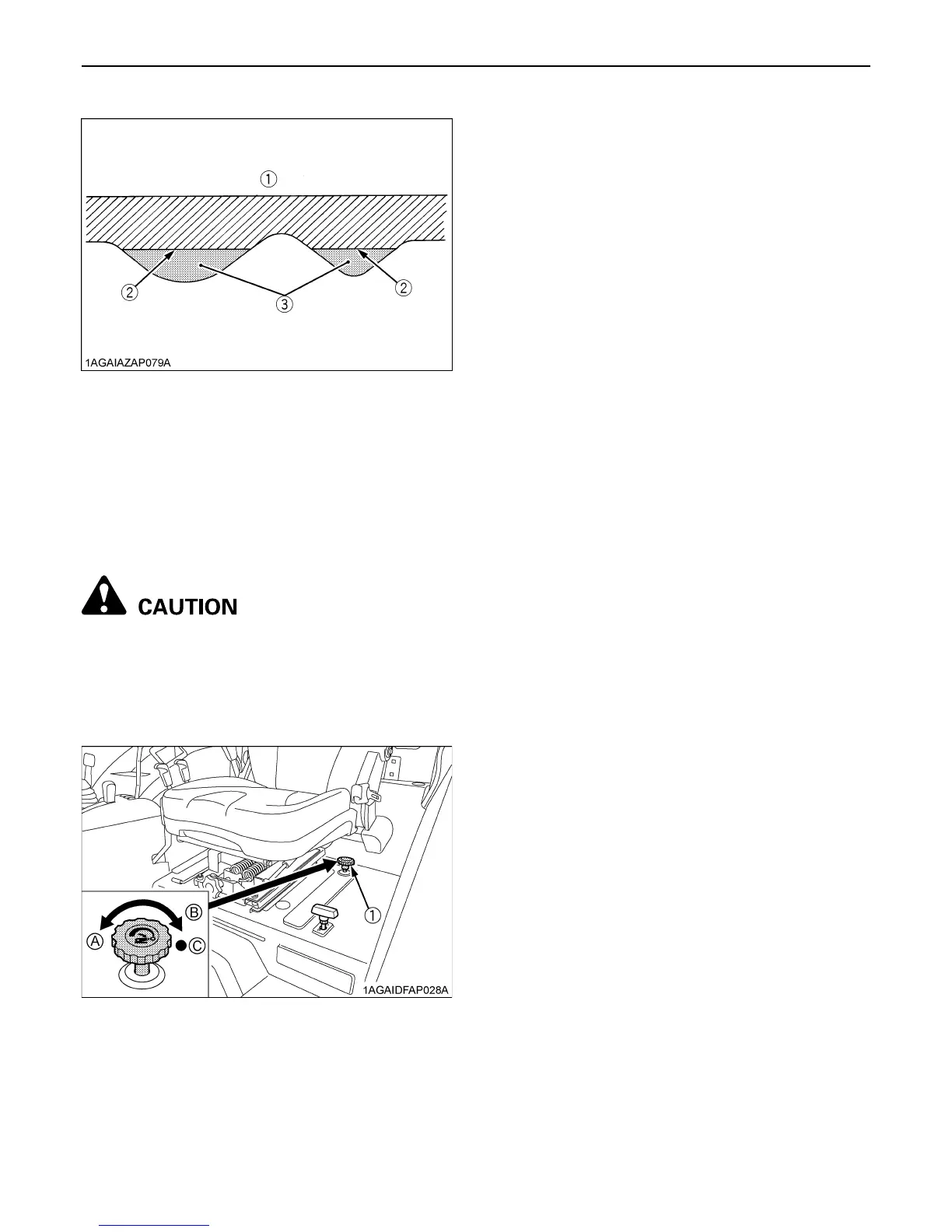

(1) Ground surface
(2) Implement penetration limit
(3) Light soil
(1) 3-point hitch lowering speed knob (A) "FAST"
(B) "SLOW"
(C) "LOCK"
To Next Page
