73PERIODIC SERVICE

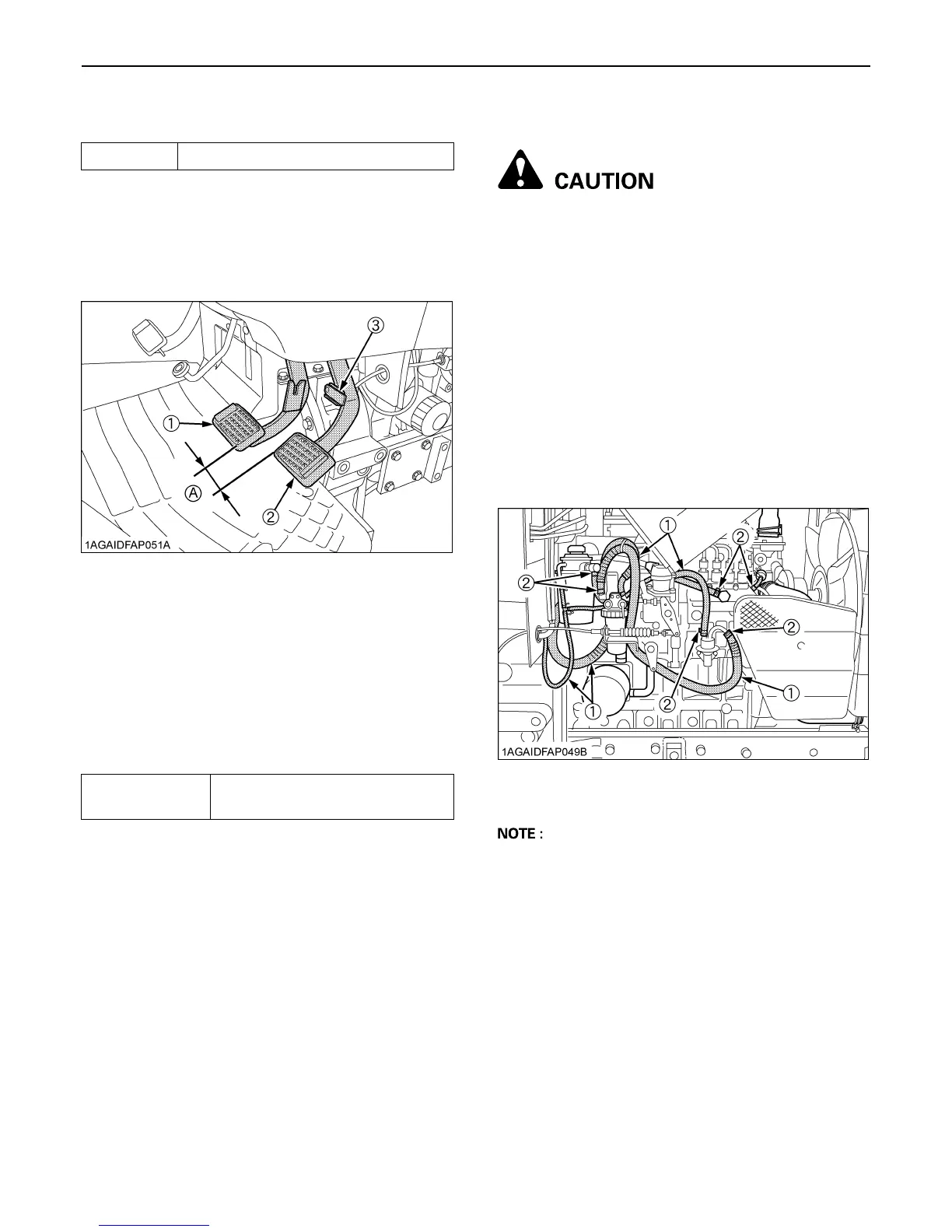

C Checking the brake pedal stroke
1. Disengage the brake pedal lock.
2. Depress the brake pedal several times.
3. Step on the right-hand pedal and measure the level
difference (pedal stroke) between this pedal and the
left-hand pedal.
4. Do the same for the left-hand pedal.
C Checking the equalizer working level
(anti-imbalance device)
1. Gently step on both brake pedals at once.
2. Further step on the right-hand pedal (the left-hand
pedal slightly raises itself) and measure the level
difference between the pedals.
3. Do the same for the left-hand pedal.
BChecking Parking Brake Lever
To avoid personal injury:
A Do not dismount the tractor while checking the
parking brake.
Confirm the tractor (tractor unit only) can surely be parked
on the slope of about 15 degrees (Slope that rises by 2.7
meters every 10 meters).
If the tractor moves, consult your local KUBOTA Dealer.
Always engage the parking brake before dismounting the
tractor.
BChecking Fuel Line
1. Check to see that all lines and hose clamps are tight
and not damaged.
2. If hoses and clamps are found worn or damaged,
replace or repair them at once.
A If the fuel line is removed, be sure to properly bleed the
fuel system.
(See "Bleeding Fuel System" in "SERVICE AS
REQUIRED" in "PERIODIC SERVICE" section.)
Pedal stroke Less than 100 mm (3.9 in.) at each pedal
(1) Brake pedal (LH)
(2) Brake pedal (RH)
(3) Brake pedal lock
(A) "PEDAL STROKE"
Equalizer working
level
Level difference of over 5 mm (0.2
in.) between both pedals
(1) Fuel lines
(2) Clamp bands
To Next Page
