51HYDRAULIC UNIT

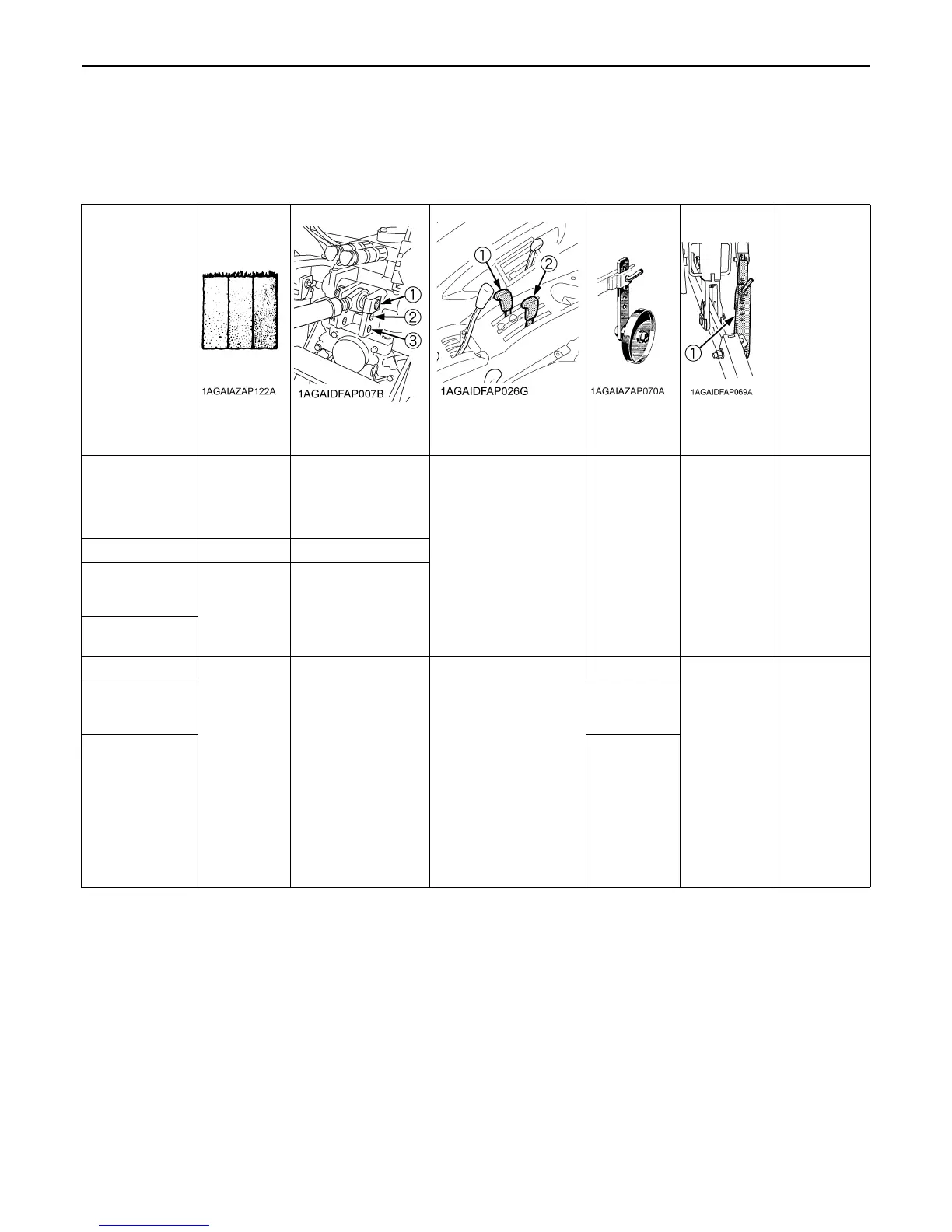

BHydraulic Control Unit Use Reference Chart
In order to handle the hydraulics properly, the operator must be familiar with the following.
Though this information may not be applicable to all types of implements and soil conditions, it is useful for general
conditions.
Implement Remarks
Soil condition Top link mounting holes
(1) Position control lever
(2) Draft control lever
Gauge wheel
(1) Telescopic
stabilizers
Moldboard plow
Light soil
Medium soil
Heavy soil
3
2 or 3
2
Draft and Mixed control
(Place the draft control lever
to the suitable position and
set the implement pull with
the position control lever.)
YES/NO Loose
Insert the set-pin
through the slot
on the outer
tube that align
with one of the
holes on the
inner bar.
For implements
with gauge
wheels, lower
the position
control lever all
way.
Disc plow --- 2 or 3
Harrower (spike,
springtooth, disc
type)
--- 2
Sub-soiler...............
Weeder, ridger........
--- 1
Position control
(Hold the draft control lever
at the front most position
during operation.)
YES
Tighten
Telescopic
stabilizer should
be tight enough
to prevent
excessive
implement
movement when
implement is in
raised position.
For implements
with gauge
wheels, lower
the position
control lever all
way.
Earthmover, digger,
scraper, manure
fork, rear carrier......
YES/NO
Mower (mid- and
rear-mount type)
Hayrake, tedder......
NO
