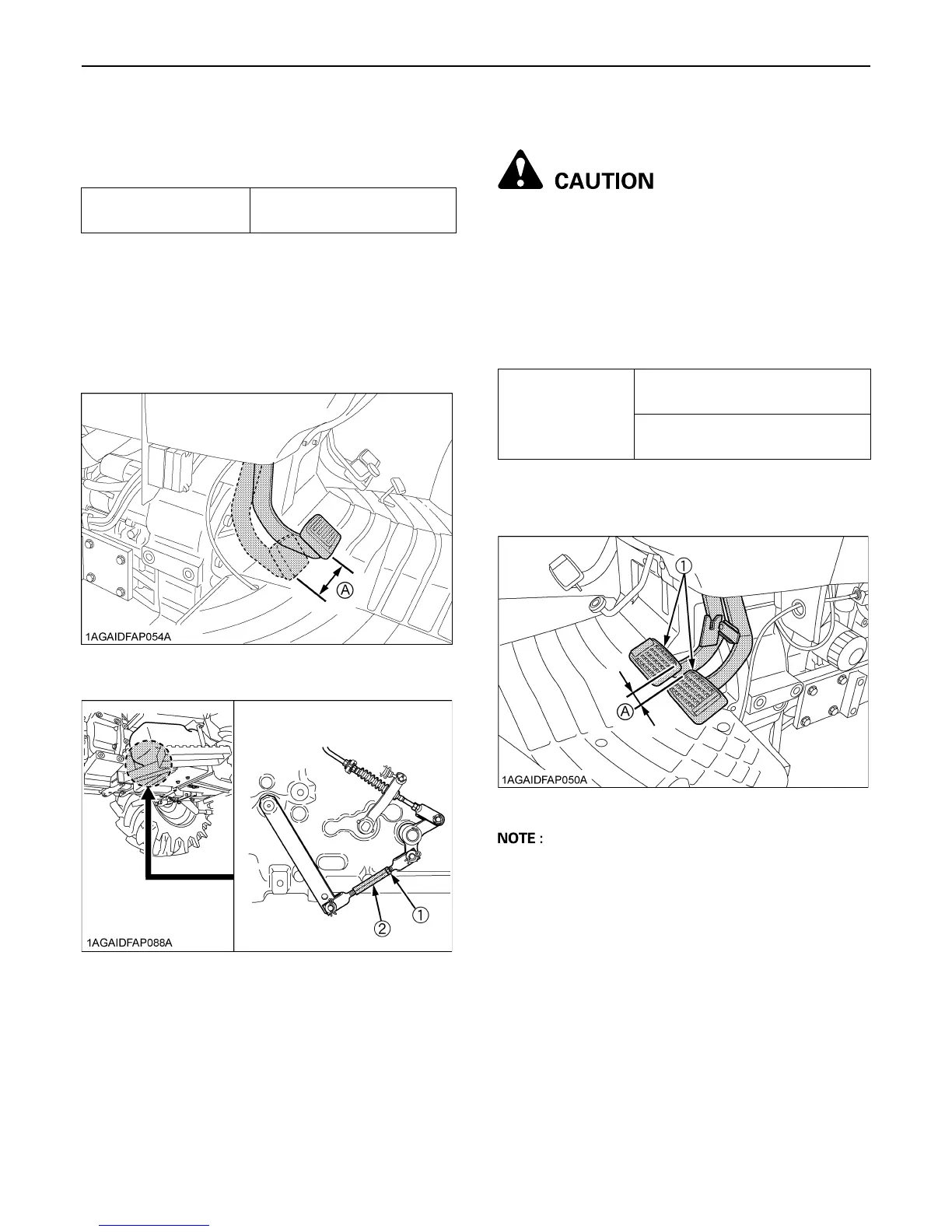

PERIODIC SERVICE72
BAdjusting Clutch Pedal
[Synchro shuttle model]
C Adjusting procedure
1. Stop the engine and remove the key.
2. Slightly depress the clutch pedal and measure free
travel at the top of pedal stroke.
3. If adjustment is needed, loosen the lock nut and turn
the turnbuckle to adjust the rod length within
acceptable limits.
4. Retighten the lock nut.
BAdjusting Brake Pedal
To avoid personal injury:
A Stop the engine and chock the wheels before
checking brake pedal.
A To prevent uneven braking, the specification
must be within the recommended limit. If found
out of the specifications, contact your local
KUBOTA Dealer for adjusting the brakes.
C Checking the brake pedal free travel
1. Set the parking brake.
2. Slightly depress the brake pedals and measure free
travel at the top of pedal stroke.
A Brake pedals should be equal when depressed.
Proper clutch pedal
free travel
40 to 50 mm (1.6 to 2.0 in.)
on the pedal
(A) Free travel
(1) Lock nut
(2) Turnbuckle
Proper brake pedal
free travel
7 to 14 mm (0.3 to 0.6 in.) on the
pedal
Keep the free travel in the right and
left brake pedals equal.
(1) Brake pedals (A) "FREE TRAVEL"

Kubota M8540 Specifications

General

Engine Type	Diesel
Engine Model	Kubota V3800-DI-T
Engine Power	85 hp
PTO Power	72 HP
Drive	4WD
Hydraulic System	Open Center
3-Point Hitch	Category II
Displacement	230 cu in (3.8 L)
