TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-M10
[2] POWER TRAIN

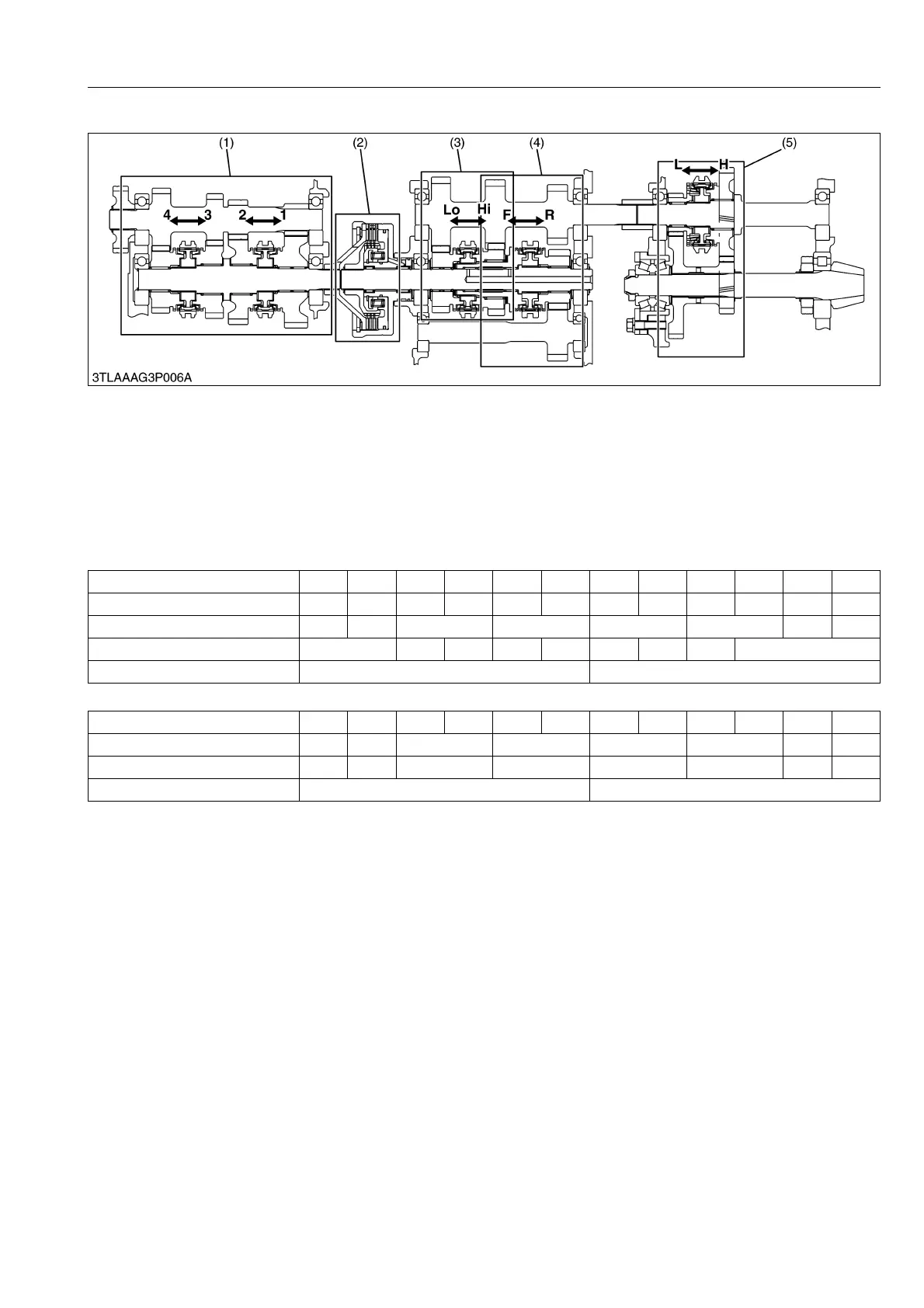

The transmission consists of the fully synchronized gear shifting and the hydraulic clutch as shown above figure.
And the double cone type synchromesh is adapted on L side of main range shift section (5).
As for the speed changing, only by operating the GST lever, the shifter of the gear changing is moved by hydraulic
operation which is electrically controlled. And as for each gear changing, each shift is moved according to the shift
pattern input to the electric control unit (ECU). The shift pattern is shown in the table below.
Front wheel drive section is basically similar to manual transmission model.
(Forward shift pattern)
(Reverse shift pattern)
9Y1211167TRM0016US0
(1) Main Shift Section
(2) GST Clutch Pack
(3) Sub-range Shift Section (4) Shuttle Shift Section (5) Main Range Shift Section
Lever Location at Lever Guide 1 2 3 4 5 6 7 8 9 10 11 12
Display on LCD 1 2 3 4 5 6 7 8 9 10 11 12
(1) Main Shift 1 2 3 4 1 2 3 4
(3) Sub-range Shift Hi Lo Hi Lo Hi Lo Hi Lo Hi
(5) Main Range Shift L H
Lever Location at Lever Guide 1 2 3 4 5 6 7 8 9 10 11 12
Display on LCD 1 2 3 4 5 6 7 8
(1) Main Shift 1 2 3 4 1 2 3 4
(5) Main Range Shift L H
