ELECTRICAL SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
9-M31

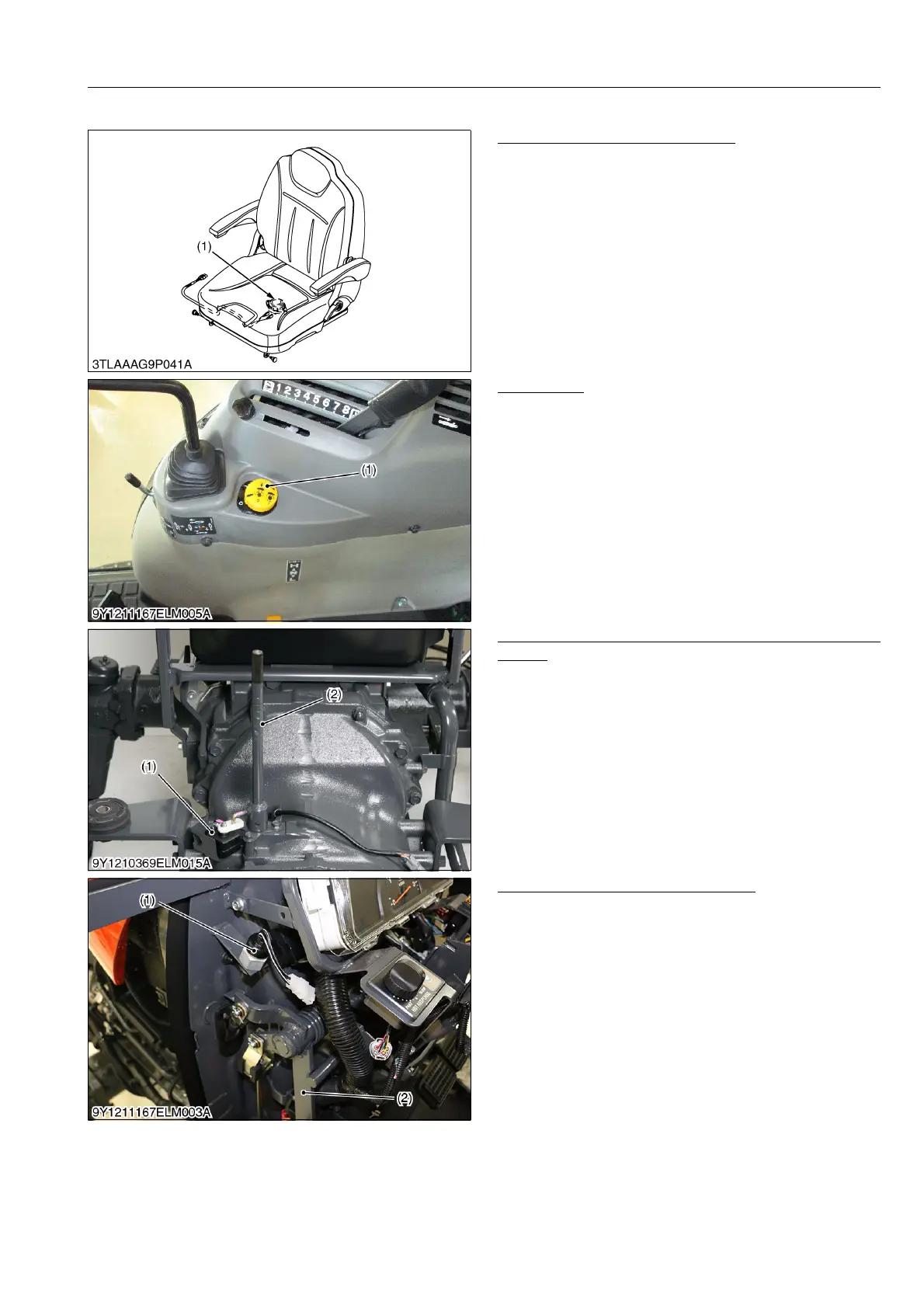

(1) Related Switches
Seat Switch and Seat Tilt Switch
These switches are located under the seat. When
sitting on the seat, the seat switch (1) is pushed in and
electrical circuit is closed. When the seat is vacant, this
switch is not pushed and electric circuit is opened.
9Y1211167ELM0069US0
PTO Switch
This switch is located right cover.
When the PTO lever is in "OFF" position, this switch
is pushed in and electric circuit is closed.
9Y1211167ELM0070US0
Shuttle Switch (Manual Transmission and GST
Model)
This switch is mounted on the clutch housing case.
When the shuttle lever is in "Neutral" position, the
electrical circuit is closed.
9Y1211167ELM0071US0
Clutch Pedal Switch for HST Model
This switch detects the clutch pedal whether being
depressed. When the clutch pedal is depressed and the
clutch disengaged, this switch is pushed in and electric
circuit is closed.
9Y1211167ELM0072US0
(1) Seat Switch
(1) PTO Switch
(1) Shuttle Switch (2) Shuttle Shift Shaft
(1) Clutch Pedal Switch (2) Clutch Pedal
