HYDRAULIC SYSTEM
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
8-S23
[5] FRONT LOADER CONTROL VALVE AND RELIEF VALVE

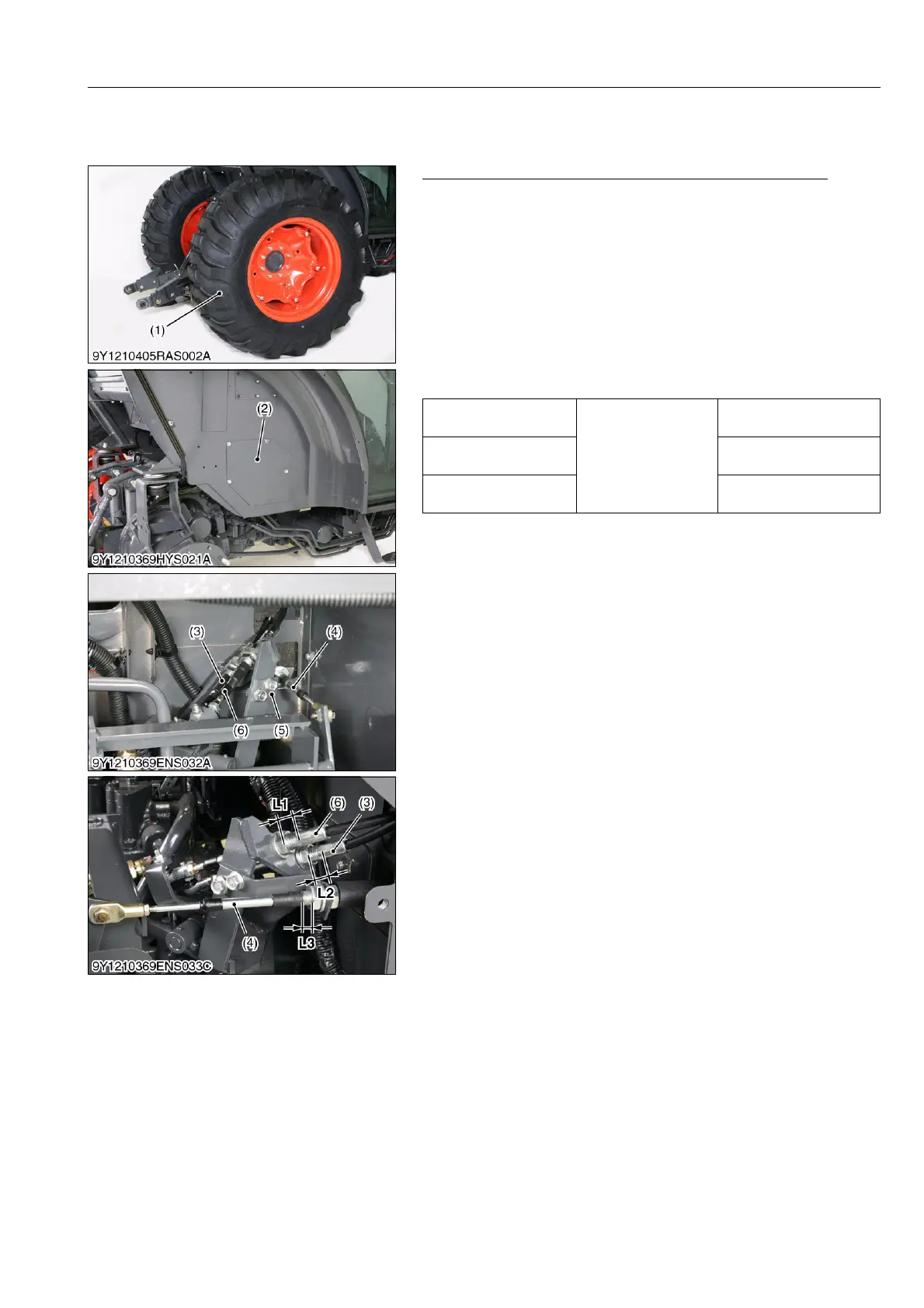

(1) Removing Front Loader Control Valve Assembly
Position Control Cable and Front Loader Control Cable
1. Place the disassembling stand under the transmission case.
2. Remove the rear wheel mounting screws and nuts.
3. Remove the rear wheel RH (1).
4. Remove the fender cover (2).
5. Remove the stay (5) and disconnect the position control cable
(4).
6. Disconnect the front loader control cables (3), (6).
(When reassembling)
• Lock the position cable at the center of the screw.
• Adjust the front loader cables, with the front loader control lever
in the locked position (Neutral position).
9Y1211167HYS0032US0
Length "L1"
Reference
9.0 mm
0.35 in.
Length "L2"
11 mm
0.43 in.
Length "L3"
8.0 mm
0.31 in.
(1) Rear Wheel RH
(2) Fender Cover
(3) Front Loader Control Cable
(4) Position Control Cable
(5) Stay
(6) Front Loader Control Valve
