TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-S60

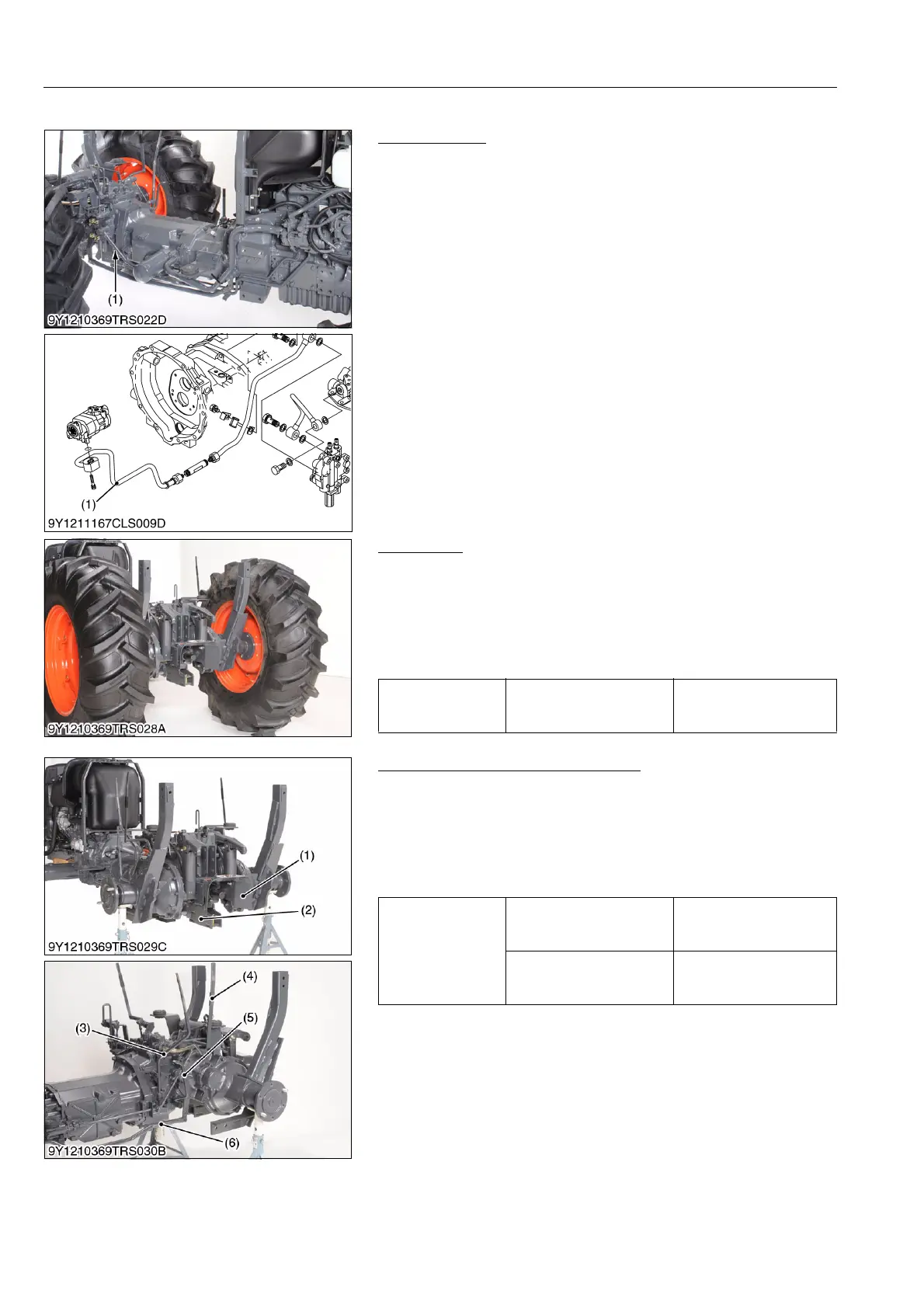

(3) Transmission Case
Hydraulic Pipe
1. Remove the main delivery pipe (1).
9Y1211167TRS0057US0
Rear Wheel
1. Place disassembling stand under the transmission case, and
support it with a jack.
2. Remove the rear wheels.
3. After removing the rear wheels, support it at both sides of rear
axle by stands.
(When reassembling)
9Y1211167TRS0058US0
ROPS, 3 Point Linkages and Others
1. Remove the PTO shaft cover (2).
2. Remove the drawbar frame (3).
3. Remove the main gear shift lever (4), range gear shift lever (5)
and four wheel drive lever (6).
4. Disconnect the brake rods (7).
(When reassembling)
9Y1211167TRS0059US0
(1) Main Delivery Pipe
Tightening torque
Rear wheel mounting
screw and nut
220 N·m
22 kgf·m
160 lbf·ft
Tightening torque
Drawbar frame mounting
screw (M12)
78 to 90 N·m
7.9 to 9.2 kgf·m
58 to 66 lbf·ft
Drawbar frame mounting
screw (M14)
167 to 196 N·m
17.0 to 20.0 kgf·m
123 to 144 lbf·ft
(1) PTO Shaft Cover
(2) Drawbar Frame
(3) Main Gear Shift Lever
(4) Range Gear Shift Lever
(5) Four Wheel Drive Lever
(6) Brake Rod
To Next Page
