(4) Glow Control System

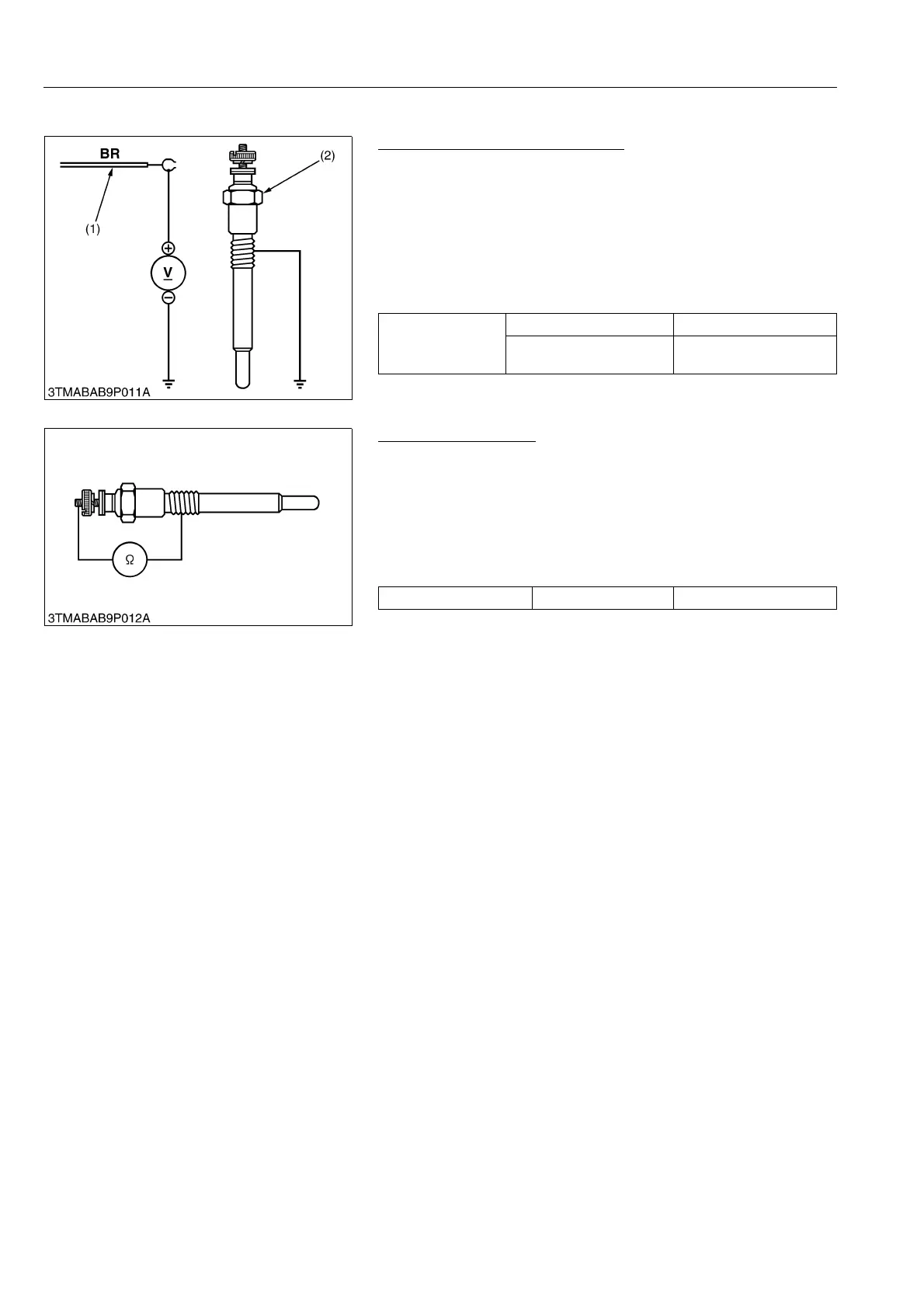

Glow Plug Lead Terminal Voltage
1. Disconnect the wiring lead (1) from the glow plug (2) after
turning the main switch off.
2. Turn the main switch key to the "ON" position, and measure the
voltage between the lead terminal and the chassis.
3. Turn the main switch key to the "START" position, and
measure the voltage between the lead terminal and the chassis.
4. If the voltage at either position differs from the battery voltage,
the wiring harness or main switch is faulty.
9Y1211167ELS0075US0
Glow Plug Continuity
1. Disconnect the lead from the glow plugs.
2. Measure the resistance between the glow plug terminal and the
chassis.
3. If 0 ohm is indicated, the screw at the tip of the glow plug and
the housing are short-circuited.
4. If the factory specification is not indicated, the glow plug is
faulty.
WSM000001ELS0012US0
Voltage
(Lead terminal –
Chassis
Main switch key at "ON" Approx. battery voltage
Main switch key at
"START"
Approx. battery voltage
(1) Wiring Lead (Positive) (2) Glow Plug
Glow plug resistance Factory specification Approx. 0.9 Ω
