CABIN
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
10-S53

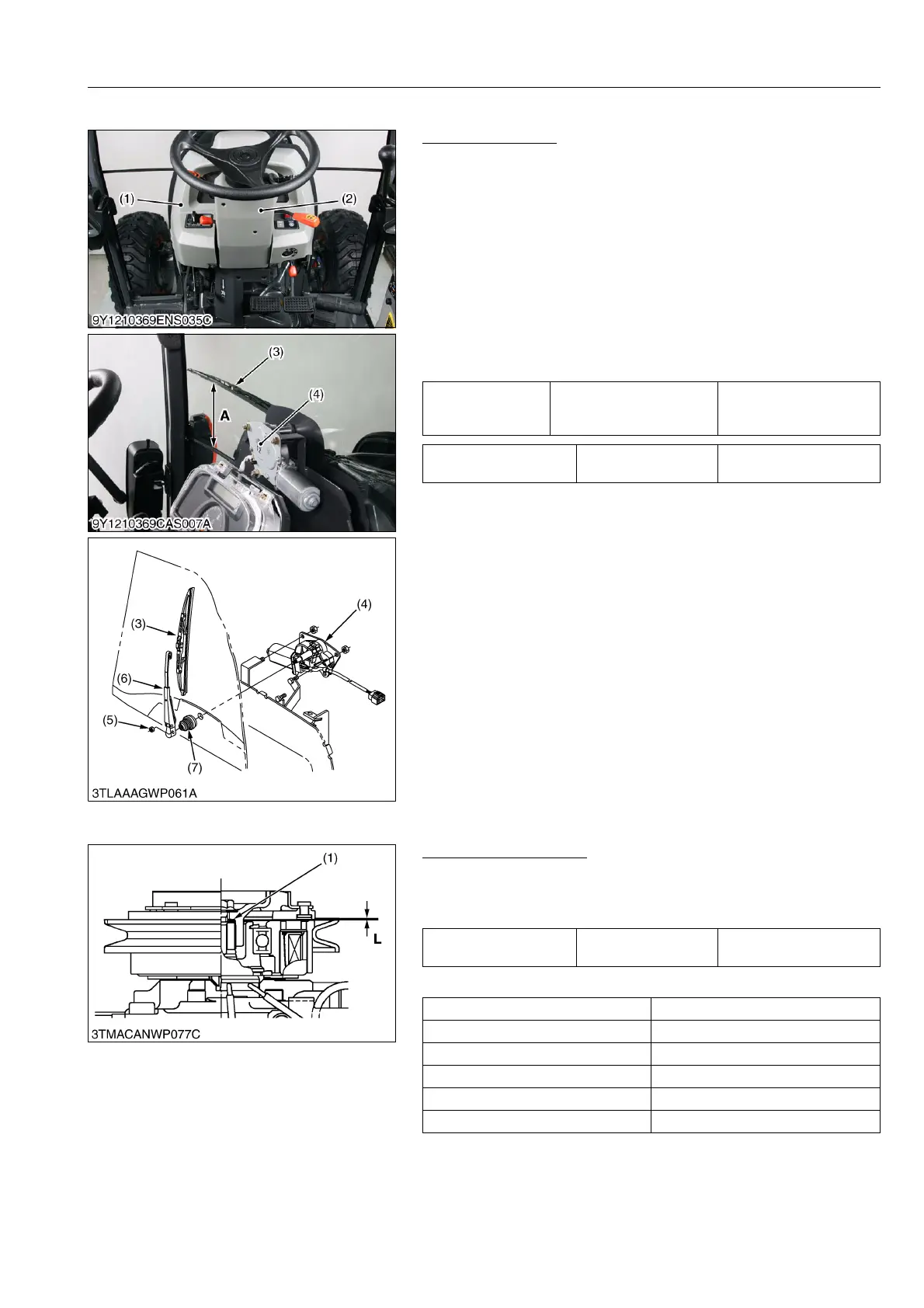

(7) Wiper Motor
Front Wiper Motor
1. Remove the steering post covers (2) and steering post under
cover.
2. Remove the meter panel (1).
3. Disconnect the front wiper motor 4P connector.
4. Remove the wiper arm mounting nut (5) and wiper arm (6).
5. Remove the wiper link cap (7).
6. Remove the front wiper motor (4).
(When reassembling)
• When attaching the wiper arm (6) to the wiper motor (4),
assemble so that the dimensions are as given in the photo on
the left. After doing so, check if the wiper wipes symmetrically
on the left and right (bilateral symmetry).
9Y1211167CAS0077US0
[3] SERVICING
Adjustment of Air Gap
1. Measure the air gap with a feeler gauge.
2. When the measurement value comes off from factory
specification, adjustment shim (3) is added or deleted.
(Reference)
9Y1211167CAS0078US0
Tightening torque Wiper motor mounting nut
6.4 to 9.3 N·m
0.65 to 0.95 kgf·m
4.7 to 6.8 lbf·ft
Distance "A" Factory specification
90 to 110 mm
3.5 to 4.3 in.
(1) Meter Panel
(2) Steering Post Cover
(3) Wiper Blade
(4) Front Wiper Motor
(5) Nut
(6) Wiper Arm
(7) Wiper Link Cap
Air gap (L) Factory specification
0.3 to 0.65 mm
0.020 to 0.025 in.
Adjusting Shim Size Code No.
0.10 mm (0.0039 in.) T1065-87340
0.15 mm (0.0059 in.) T1065-87350
0.40 mm (0.016 in.) T1065-87360
0.60 mm (0.024 in.) T1065-87370
1.00 mm (0.0394 in.) T1065-87380
(1) Shim L: Air Gap
