GENERAL
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
G-69

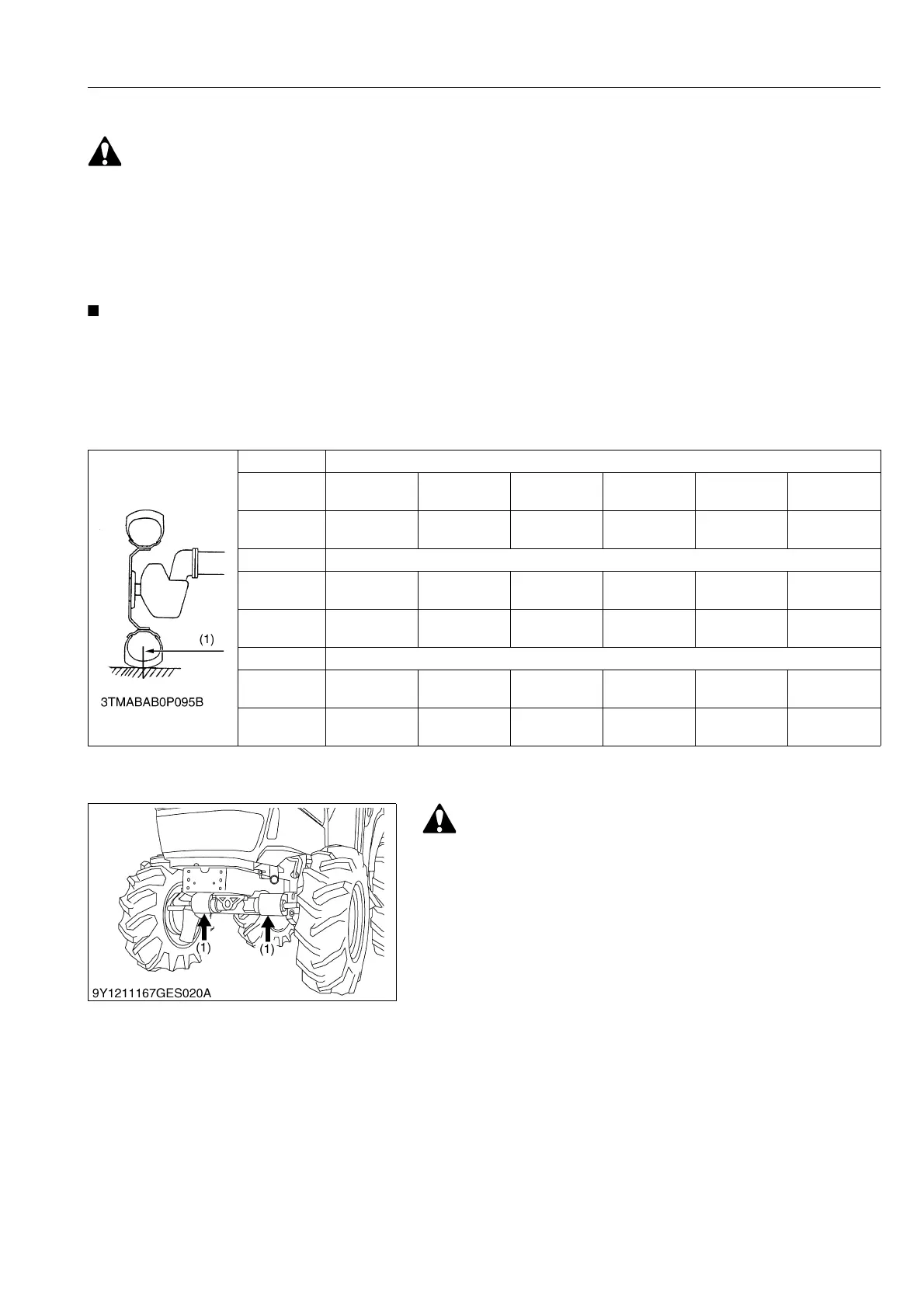

[2] TREADS ADJUSTMENT
• When working on slopes or working with trailer, set the wheel tread as wide as practice for the job for
maximum stability.
• Support tractor securely on stands before removing a wheel.
• Do not work under any hydraulically supported devices. They can settle, suddenly leak down, or be
accidentally lowered. If necessary to work under tractor or any machine elements for servicing or
adjustment, securely support them with stands or suitable blocking beforehand.
• Never operate tractor with a loose rim, wheel, or axle.
• Do not turn front discs to obtain wider tread.
• When re-fitting or adjusting a wheel, tighten the bolts to the specified torques then recheck after driving
the tractor 200 m (200 yards) and thereafter according to service interval. (Refer to G-23.)
9Y1211167GEG0102US0
(1) Front Wheels
Front axle is not adjustable
9Y1211167GEG0103US0
To avoid personal injury or death:
• Before jacking up the tractor, park it on a firm and level
ground and chock the rear wheels.
• Fix the front axle to keep it from swinging.
• Select jacks that withstand the machine weight and set
them up as shown below.
9Y1211167GEG0104US0
Models L3540-II
Tire
7.5R16,
Farm
––
7-16,
Farm
212/80-D15
Turf
–
Tread
1145 mm
(45.08 in.)
––
1150 mm
(45.28 in.)
1180 mm
(46.46 in.)
–
Models L4240-II
Tire
7.5R16,
Farm
– 8-16 Farm
7-16,
Farm
212/80-D15
Turf
29 × 12.00-
15 Turf
Tread
1145 mm
(45.08 in.)
–
1145 mm
(45.08 in.)
1150 mm
(45.28 in.)
1180 mm
(46.46 in.)
1270 mm
(50.0 in.)
Models L5040-II, L5240-II, L5740-II
Tire
7.5R16,
Farm
9.5-16
Farm
–––
29 × 12.00-
15 Turf
Tread
1090 mm
(42.91 in.)
1135 mm
(44.68 in.)
–––
1210 mm
(47.64 in.)
(1) Tread
