TRANSMISSION
L3540-II, L4240-II, L5040-II, L5240-II, L5740-II , WSM
3-M40
[2] SHIFT LINKAGE MECHANISM
The shift linkage mechanism of "Front Wheel Drive Lever", refer to page.
9Y1211167TRM0049US0
(1) Range Gear Shift Lever

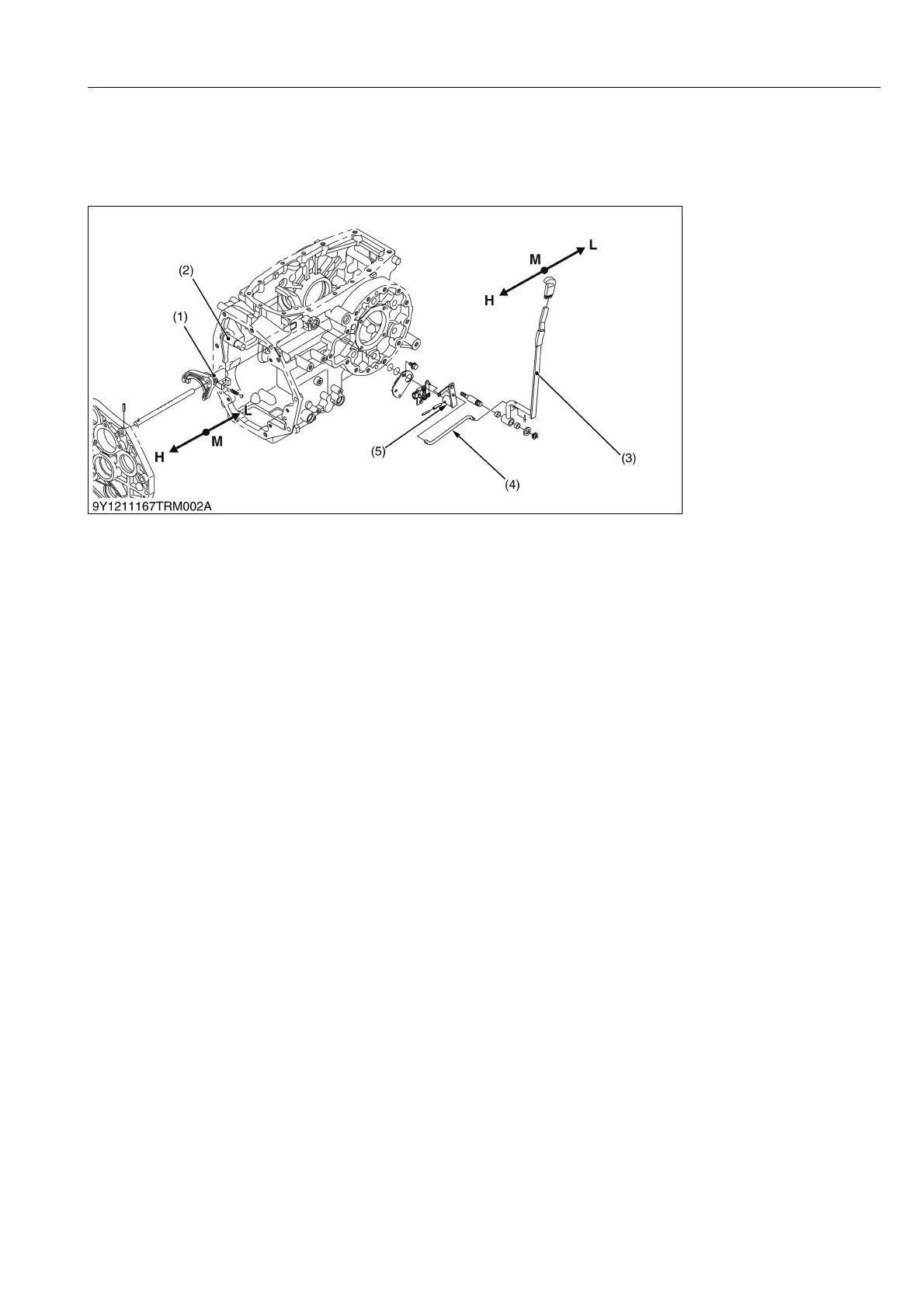

The links are connected from the shift lever (3) to the shift fork (1) as shown in figure.
9Y1211167TRM0050US0
(1) Shift Fork
(2) Shift Arm
(3) Range Gear Shift Lever
(4) Rod
(5) Sub-arm
