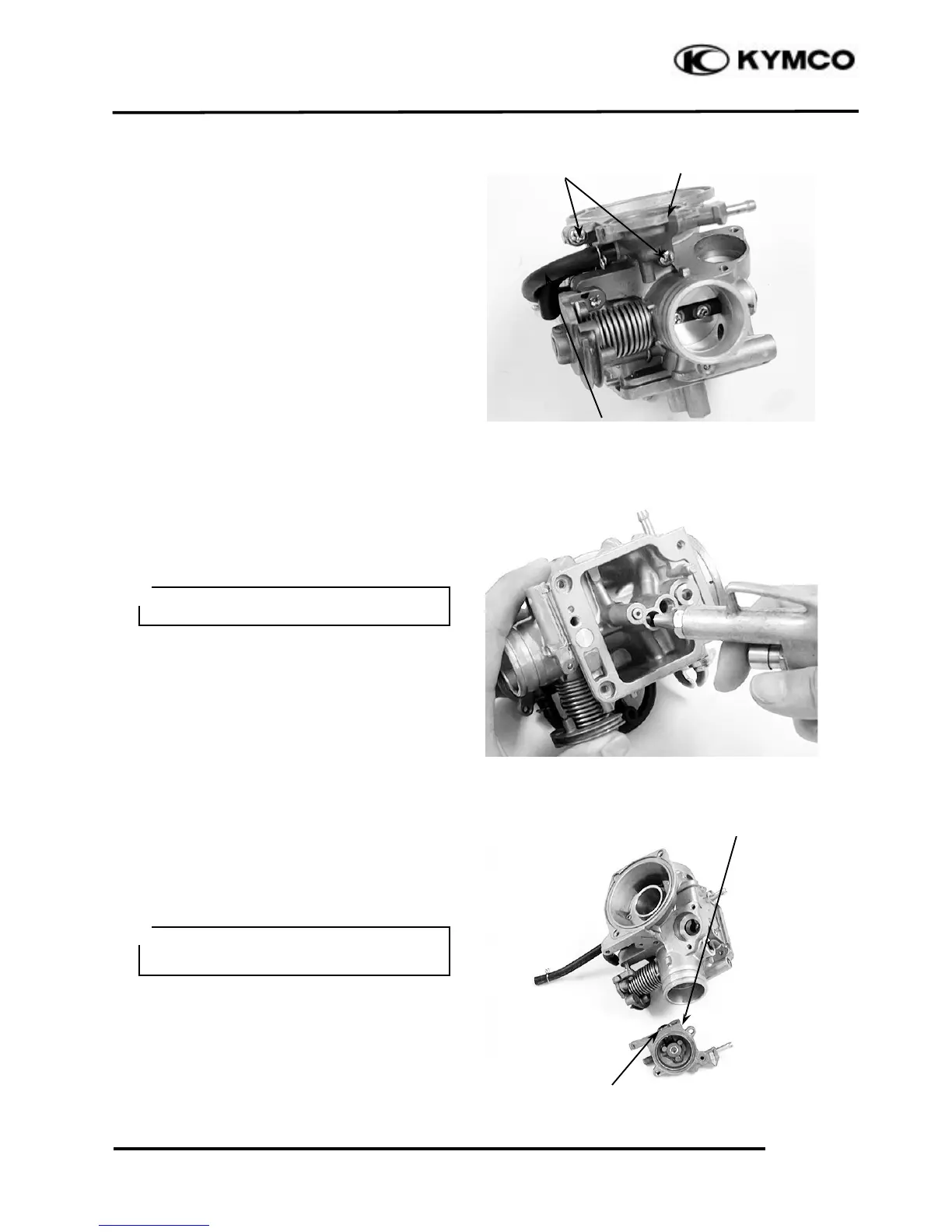

13. FUEL SYSTEM/CARBURETOR/FUEL PUMP
13-12
DINK 200
Disconnect the hose at the valve seat.
Remove the two screws and the air cut-off
valve body.
CARBURETOR BODY CLEANING
Blow compressed air through all passages of
the carburetor body.
A.C.V. ASSEMBLY
Install the O-ring onto the air-cut-off valve
body and then install the valve body to the
carburetor with the two screws.
Hose
O-ring
Air Cut-off Valve Body
• Make sure that no fuel jet is clogged.
＊
• Install the O-ring with the flat face
toward the valve body side.
＊
Air Cut-off Valve Body
Screws
