16. BATTERY/CHARGING SYSTEM
16-7
DINK 200

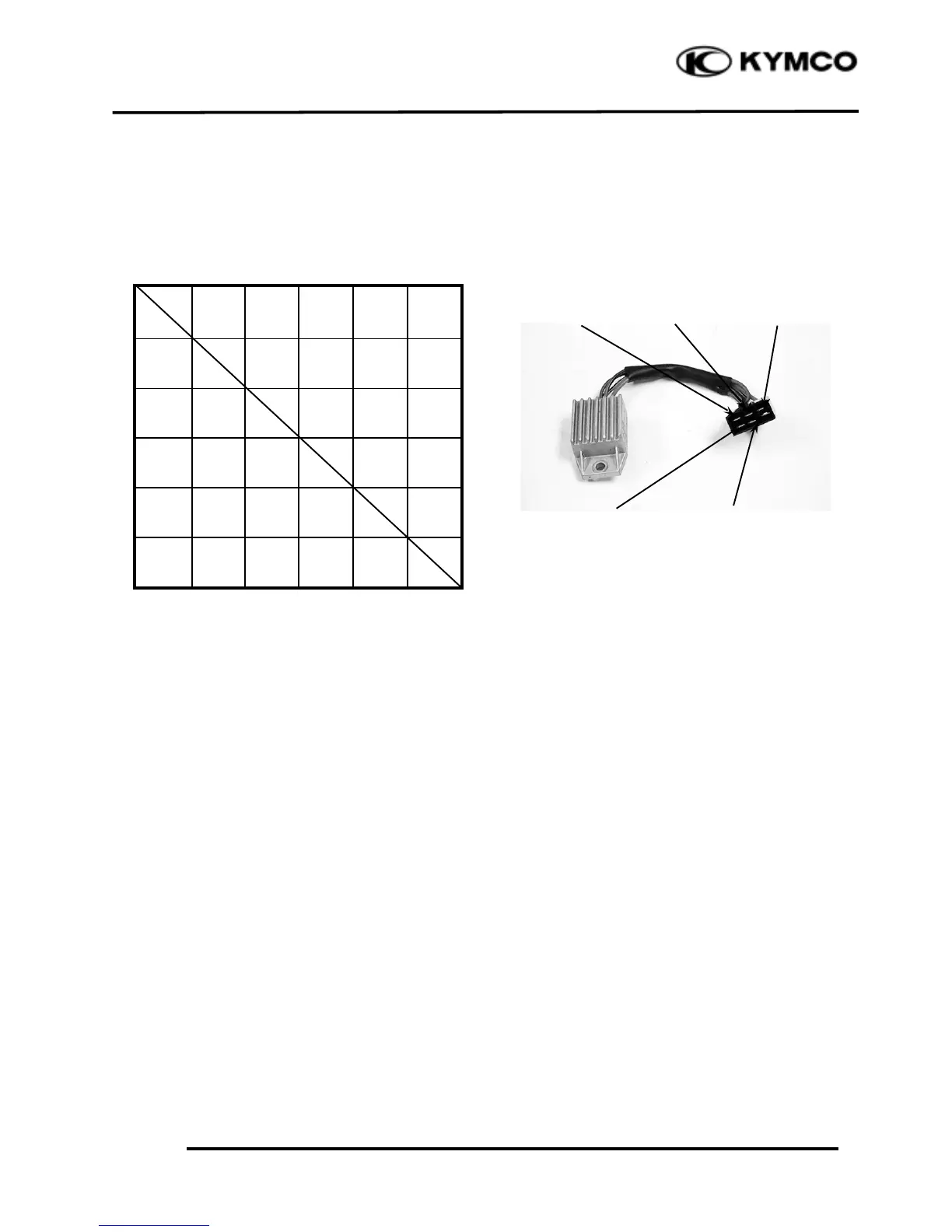

CHARGING INDICATOR
INSPECTION
Use Sanwa electric tester for testing.
Take readings in XKΩ range.
Unit: D401
Probe (+)
Probe
(-)
Red/
Black
Red
Brown
/Blue
Red/
Blue
Green
Red/
Black
∞
35~65
KΩ
∞
21~41
KΩ
Red
3.4~5.8
mΩ
3.4~5.8
mΩ
∞
3.4~5.8
mΩ
Brown/
Blue
35~65
KΩ
∞
∞
14_ 2
6 KΩ
Red/
Blue
∞
∞
∞
∞
Green
21~41
KΩ
∞
14_ 2
6 KΩ
∞
Charging indicator inspection：
1. Turn on the ignition switch. The Charging lamp should be lighten.
2. Start the engine. The Charging lamp should be went out.
3. Inspect the output voltage of Charging indicator：
~ Disconnect the battery（ +） cable.
~ Use the voltmeter.
~ Connect the voltage（ +） cable to the red wire of charging indicator.
~ Connect the voltage （ -） cable to the ground.
~ Start the engine. Open the throttle valve to keep at 8000 rpm.
~ Standard output voltage is 12~14V.
Red
Red/ Blue
Red/ Black
Brown/Blue
Green
