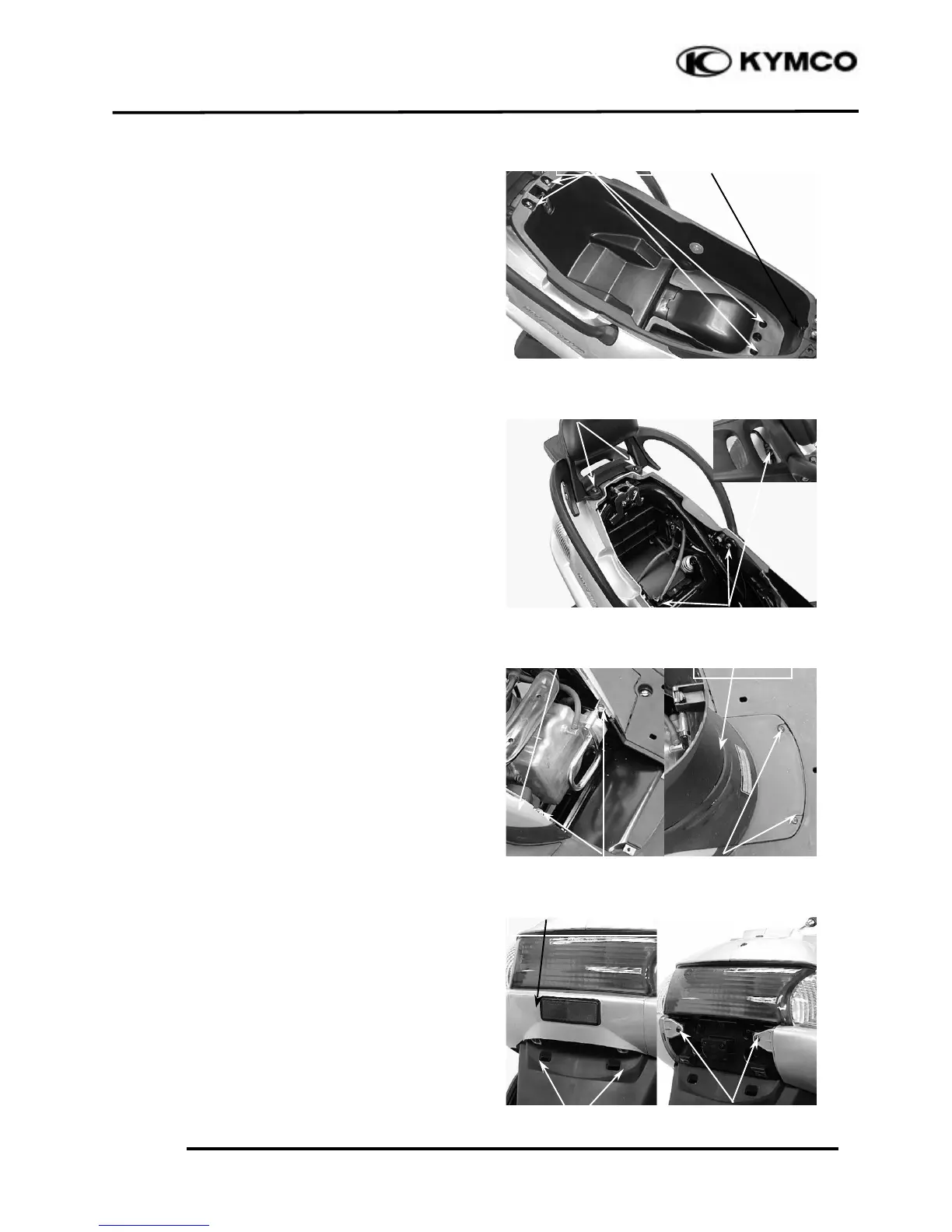

FRAME COVERS REMOVAL
REAR CARRIER & HAND RAIL
REMOVAL
Remove the met-in box:
First remove the two bolts and two nuts
attaching the met-in box.
Remove the bolt attaching the center cover.
Remove the met-in box.
Remove the hand rail right and left lock bolts.
Remove the two hex bolts and one stay bolt
attaching the rear carrier.
Disconnect the third stoplight wire connector
on the rear carrier.
Remove the rear carrier and hand rail.
FRAME BODY COVER REMOVAL
Remove the two screws on the bottom of the
center cover.
Remove the center cover.
Remove the two screws attaching the front
part of the frame body cover.
Remove the two screws attaching the rear
protective cover.
Remove the rear protective cover.
Remove the two screws attaching the rear
ends of the right and left side rails.
