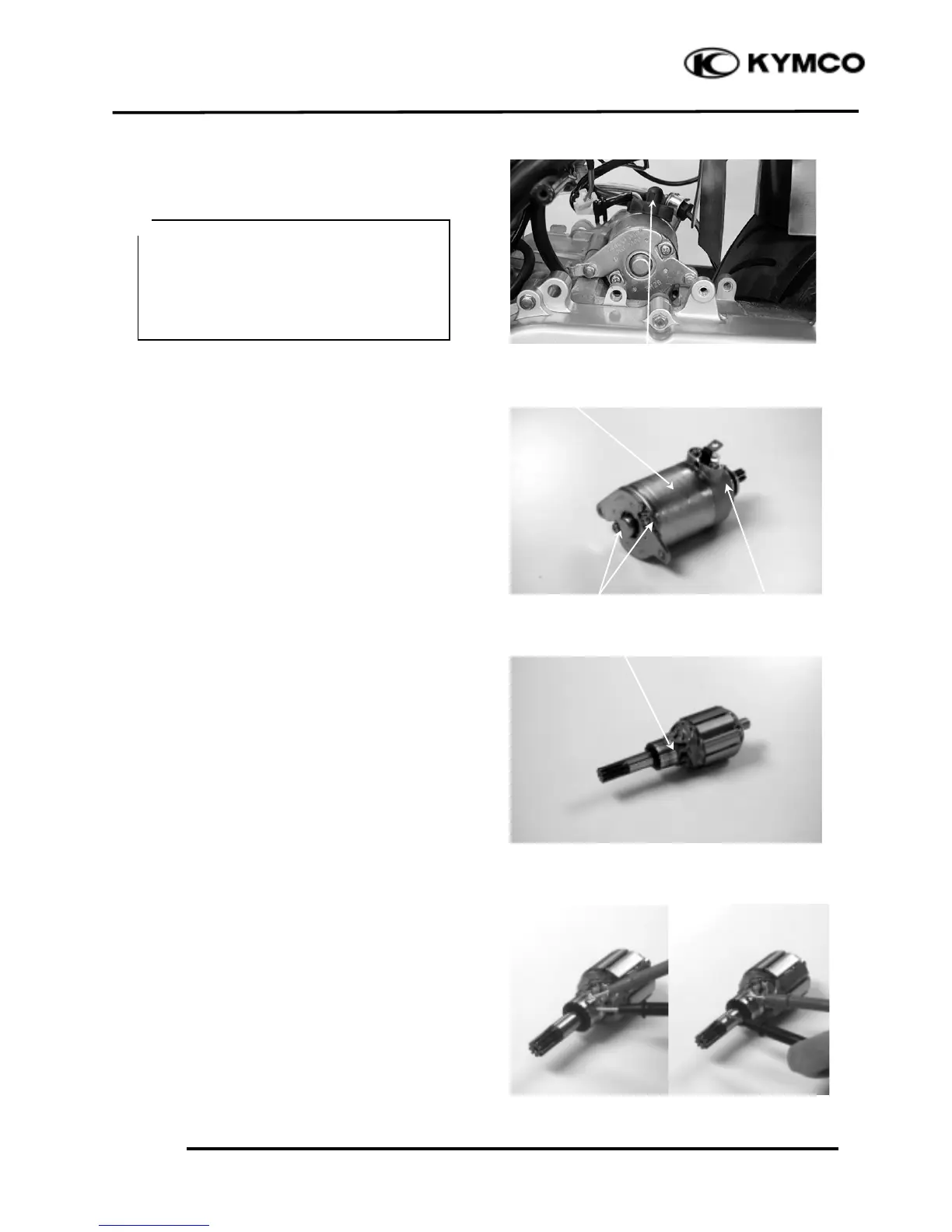

STARTER MOTOR
REMOVAL
Remove the seat, met-in box and frame center
cover. (
2-3)
Remove the waterproof rubber jacket and
disconnect the starter motor cable.
Remove the two starter motor mounting bolts
and the motor.
DISASSEMBLY
Remove the two starter motor case screws,
front cover, rear cover, motor case and other
parts.
INSPECTION
Inspect the removed parts for wear, damage
or discoloration. Replace if necessary.
Clean the commutator if there is metal
powder between the segments.
Check for continuity between pairs of the
commutator segments and there should be
continuity.
Also, make a continuity check between
individual commutator segments and the
armature shaft. There should be no
continuity.
• Before removing the starter motor, turn
the ignition switch OFF and remove
the battery ground. Then, turn on the
ignition switch and push the starter
button to see if the starter motor
operates properly.
