17. IGNITION SYSTEM
17-4
DINK 200

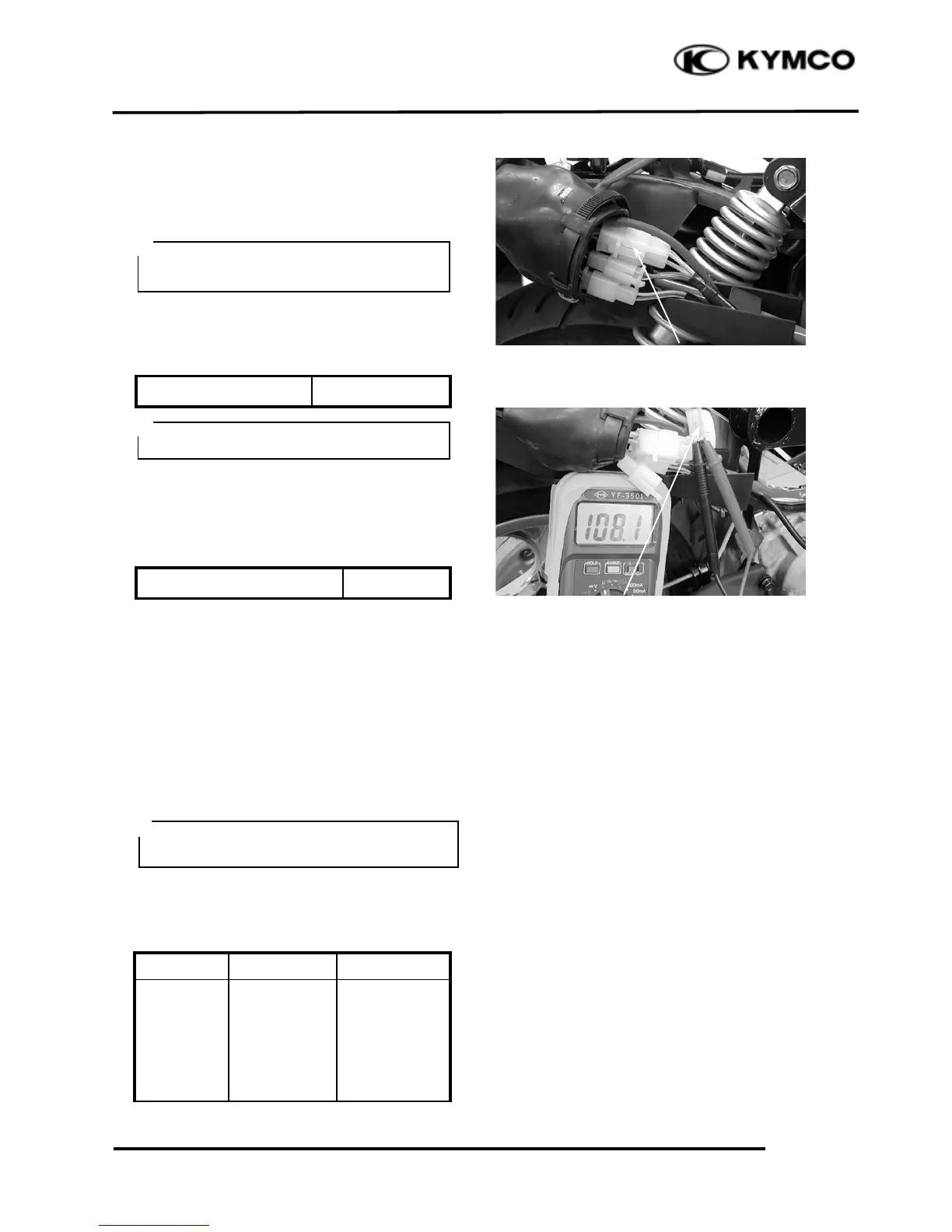

A.C. GENERATOR INSPECTION
EXCITER COIL/PULSER COIL
INSPECTION
Remove the frame right cover. (

2-4)
Disconnect the A.C. generator connector.
Measure the exciter coil resistance between
the black/red wire terminal and ground.
Black/red_ Ground
50_ 350Ω
For A.C. generator removal/installation, refer
to pages 10-3 and 10-6.
Disconnect the pulser coil wire coupler.
Measure the pulser coil resistance between
the blue/white and green/white wire terminals.
Blue/white_ Green/white
50_ 170Ω
For pulser coil replacement, refer to pages 10-
3 and 10-6.
CDI UNIT INSPECTION
Remove the met-in box. (

2-3)
Disconnect the CDI coupler and remove the
CDI unit.
Inspect the CDI unit performance using the
CDI tester.
Connect the CDI unit to the CDI tester
special coupler (KB7). Adjust the CDI tester
switch range.
Switch
Good CDI
Faulty CDI
1. OFF
2. P
3. EXT
4. ON1
5. ON2
No spark
↑
↑
Good spark
Good spark


Good spark
No spark
No spark
A.C. Generator Connector
This test is performed with the stator
installed in the engine.
＊
Correctly operate the CDI tester following
the manufacturer‘s instructions.
＊
Measure the resistance in the XΩ range.
＊
Pulser Coil Wire Coupler
