18. LIGHTS/INSTRUMENTS/SWITCHES/HORN
18
-
3

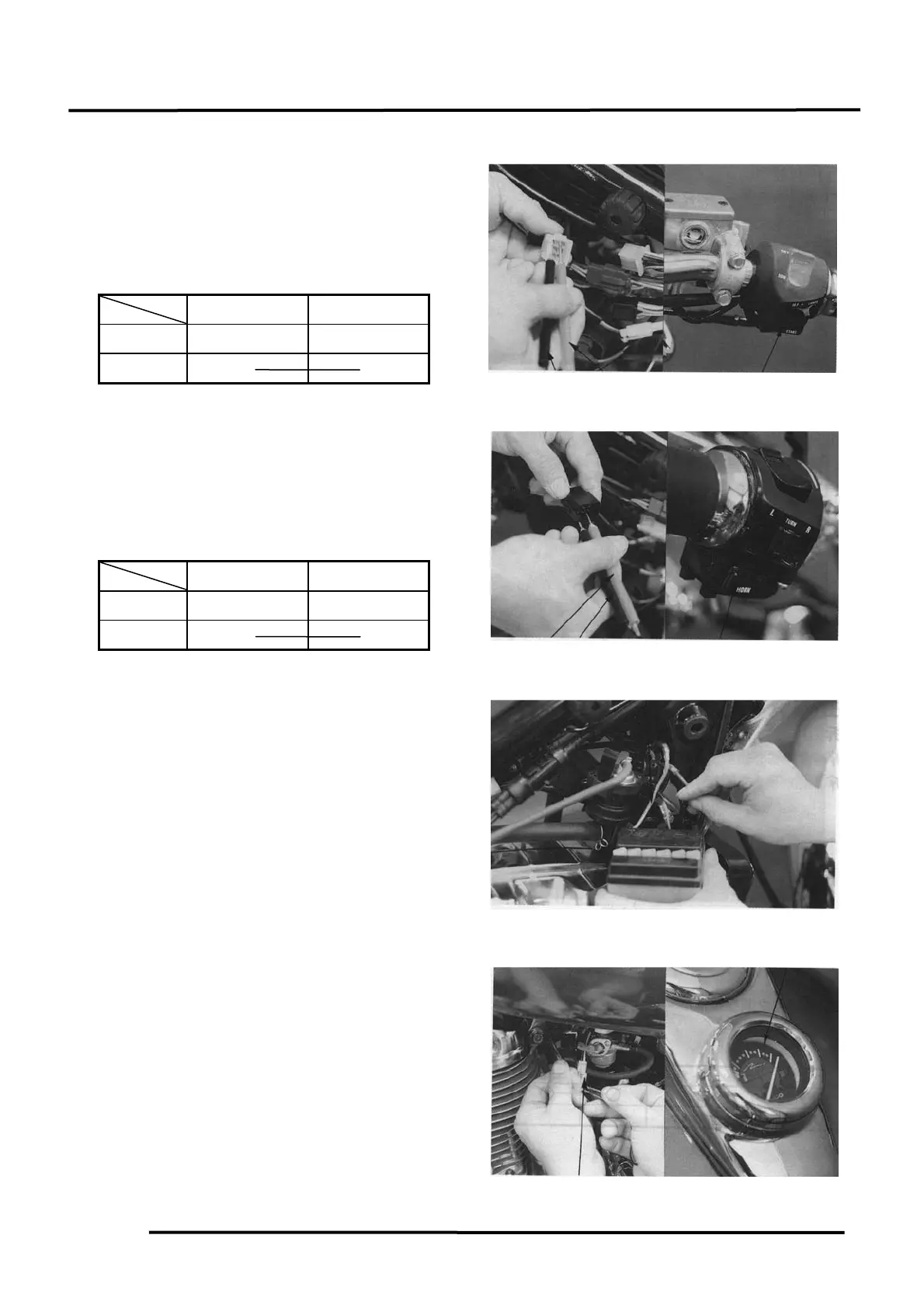

STARTER BUTTON
Remove the decorative covers under the fuel
tank.
Disconnect the right switch wire coupler.
Check for continuity between the black and
yellow/red wires.
Color
Position
Black Yellow/Red
FREE
PUSH ○
○○
○ ○
○○
○
HORN BUTTON
Remove the decorative covers under the fuel
tank.
Disconnect the left switch wire coupler.
Check for continuity between the black and
light green wires.
Color
Position
Black Light Green
FREE
PUSH ○
○○
○ ○
○○
○
HORN
Remove the steering head decorative cover.
Disconnect the horn wire coupler.
The horn is normal if it sounds when a 12V
battery is connected across the horn wire
terminals. Replace the horn if it does not
sound.
FUEL GAUGE
Disconnect the fuel gauge and fuel unit wire
couplers.
Connect the fuel gauge green wire with the
yellow/white wire. Turn the ignition switch
ON and the fuel gauge is normal if its needle
moves from E to F and then moves from F to
E when the ignition switch is turned OFF.
Yellow/Red
Horn Button
Fuel Gauge
Black
Fuel Gauge Wire Coupler
Starter Button
Black
Light Green
Black
Light Green
