2. INSPECTION/ADJUSTMENT
2-8
BRAKE SHOE
Inspect the front brake linings for wear.

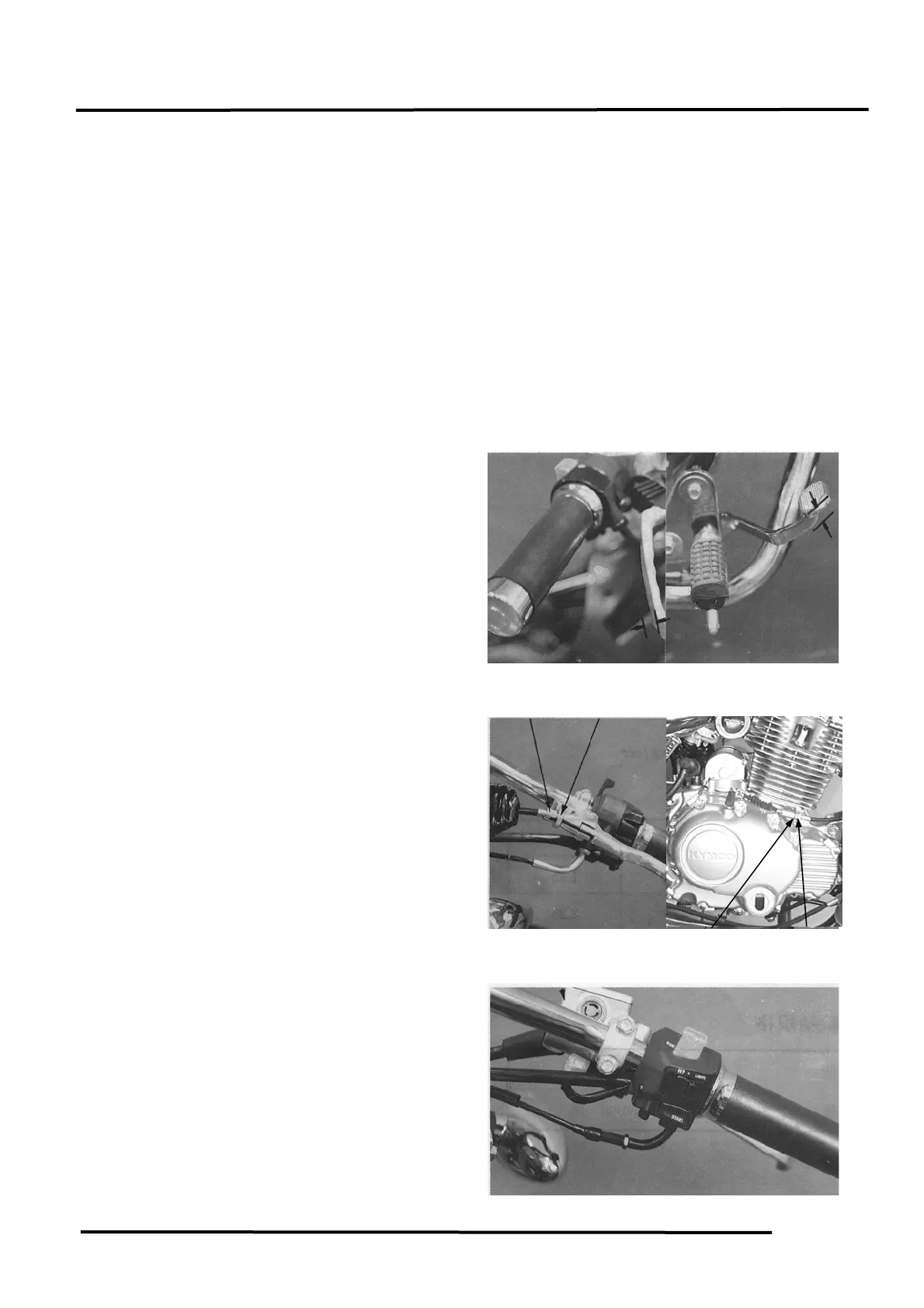

BRAKE LEVER/PEDAL
Measure the front brake lever free play.
Free Play: 10～20mm
Measure the rear brake pedal free play.
Free Play: 10～20mm
CLUTCH
Measure the clutch lever free play.
Free Play: 10～20mm
When minor adjustment is required, adjust
by turning the adjusting nut on the clutch
lever side.
When major adjustment is required, adjust
by turning the adjusting nut on the clutch
cable from the right crankcase cover.
Adjust by loosening the lock nut and turning
the adjusting nut. After adjustment, tighten
the lock nut.
BRAKE FLUID
Turn the steering handlebar upright and
check if the brake fluid level is between the
upper and lower limits.
Specified Brake Fluid: DOT-3
Adjusting Nu
Lock Nu
Adjusting Nu
Lock Nu
Lower Limi
