18. LIGHTS/INSTRUMENTS/SWITCHES/HORN
18
-
4

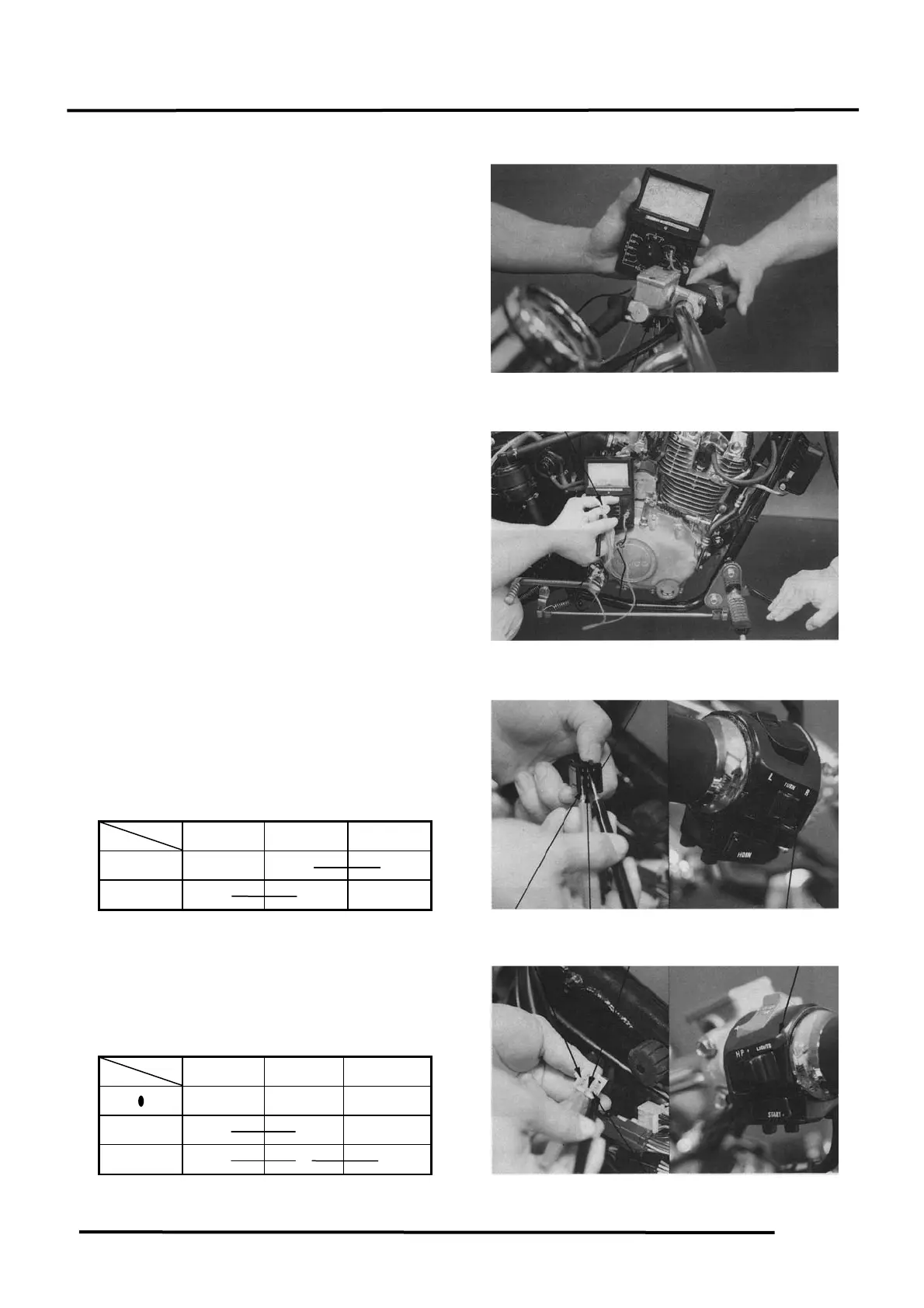

HANDLEBAR SWITCHES
FRONT STOP SWITCH
Disconnect the front stop switch wire
coupler.
Check for continuity between the front stop
switch wires.
Brake lever applied: There is continuity.
Brake lever released: There is no continuity.
REAR STOP SWITCH
Remove the right side cover.
Disconnect the rear stop switch wire coupler.
Check for continuity between the rear stop
switch wires.
Brake pedal depressed: There is continuity.
Brake pedal released: There is no continuity.
TURN SIGNAL SWITCH
Disconnect the turn signal switch wire
coupler.
Check for continuity between the turn signal
switch wires.
Color
Position
Orange Gray Light Blue
R ○
○○
○ ○
○○
○
L ○
○○
○ ○
○○
○
HEADLIGHT SWITCH
Disconnect the headlight switch wire coupler.
Check for continuity between the headlight
switch wires.
Color
Position
Black Brown Blue/White
P ○
○○
○ ○
○○
○
H ○
○○
○ ○
○○
○ ○
○○
○
Turn Signal Switch
Headlight Switch
Blue/White
Gr
ay
Front Stop Switch
Rear Stop Switch Wire
Orange
Light Blue
Black
Brown
