4. FUEL SYSTEM
4
-
4

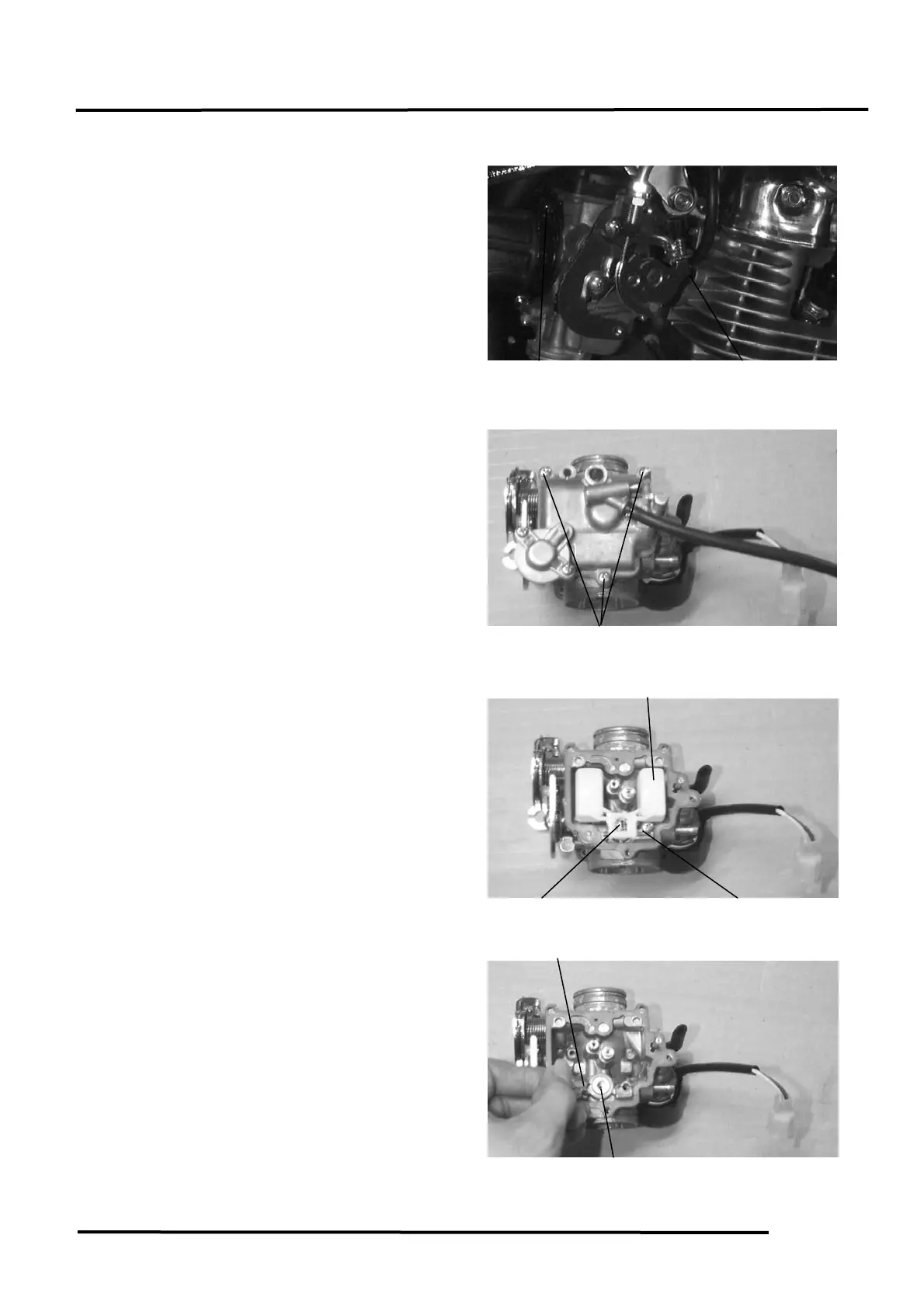

Loosen the air cleaner connector band screw.
Remove the two carburetor lock nuts.
Remove the carburetor
CARBURETOR DISASSEMBLY
FLOAT/FLOAT VALVE/JETS/
ACCELERATING PUMP
Float/Float Valve Disassembly
Remove the three float chamber attaching
screws and remove the float chamber.
Remove the float pin, float and float valve.
Float/Float Valve Inspection
Inspect the float valve seat for wear or
damage.
Inspect the float for damage or fuel level
inside the float chamber.
Float Valve
Screw
Float Pin
Float
Lock Nut
Screws
Float Valve
Float Valve Seat
