KYMCO ZING 150 User Manual

19. EVAPORATIVE/EXHAUST EMISSION
CONTROL SYSTEM
19
-
10
EXHAUST EMISSION RELATED
SYSTEM INSPECTION

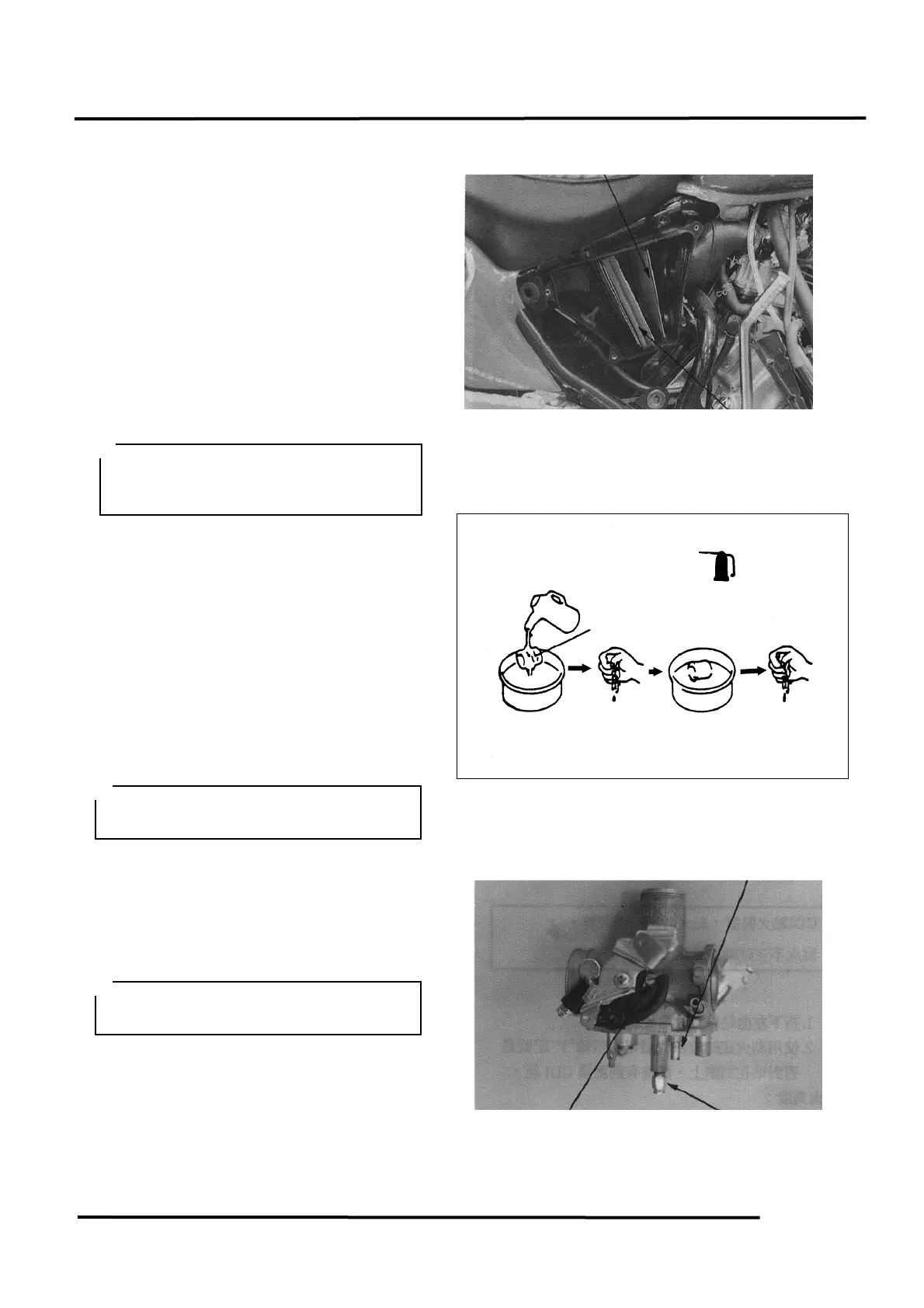

AIR CLEANER CLEANING
1. Remove the frame right side cover and
emission control system plate.
2. Remove the air cleaner cover screws
and the air cleaner cover.
3. Remove the air cleaner element.
4. Wash the element, squeeze out and
allow to dry. Soak the element in engine
oil and squeeze out the excess oil.
5. Install the air cleaner element in the
reverse of removal.
CARBURETOR REMOVAL/
CLEANING
1. Remove the throttle valve and spring.
2. Remove the accelerating pump.
3. Remove the four float chamber screws
and float chamber.
4. Remove the float pin and float.
5. Remove the main jet and slow jet.
Clean the jets with compressed air.
6. Remove the pilot screw and throttle
stop screw.
7. Clean all passages with compressed air.
CARBURETOR INSTALLATION
Install the carburetor in the reverse order
of removal.
•
Be sure to install the air cleaner
properly to avoid dust entering the
cylinder.
＊
＊＊
＊
Air Clea
ner Element
Slow Jet
Air Cleaner Element
When removing the pilot screw, record
the number of rotations.
＊
＊＊
＊
When removing the accelerating pump
diaphragm, do not twist or damage it.
＊
＊＊
＊
Squeeze out
and dry
Wash
Engine
oil
Squeeze out
and dry
Air Cleaner Screen
Main Jet
Throttle Stop Screw
