19. EVAPORATIVE/EXHAUST EMISSION
CONTROL SYSTEM

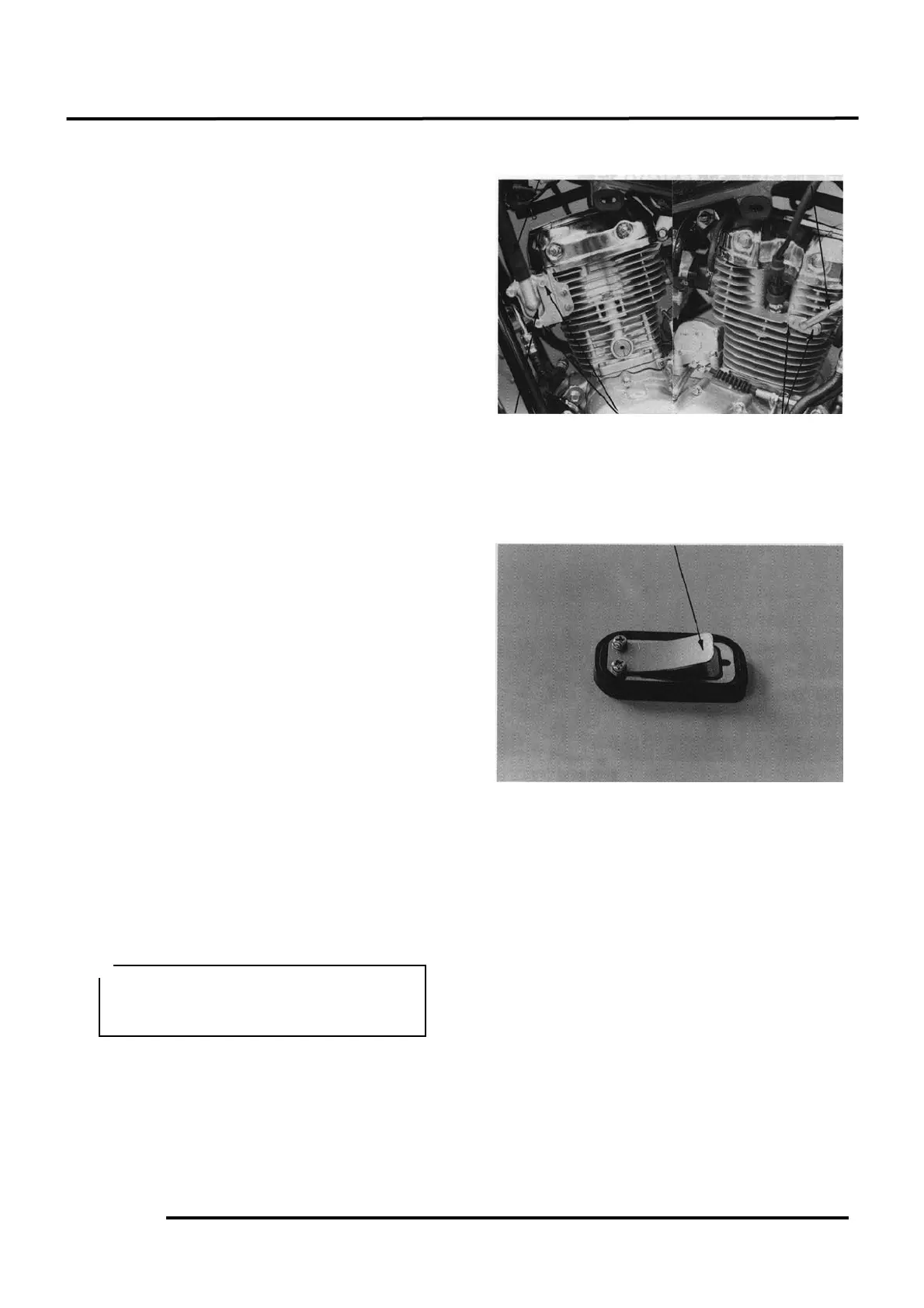

REED VALVE
REMOVAL
1. Disconnect the secondary air inlet tube and
connector.
2. Remove the two bolts attaching the
secondary air exhaust port duct.
3. Remove the two bolts attaching the reed
valve unit to remove the reed valve unit.
INSPECTION
1. Remove the three bolts attaching the reed
valve cover and take out the reed valve.
2. Check the reed valve for cracks, damage,
big clearance or weak reeds. Replace if
necessary.
3. Check the gasket and O-ring for damage or
deterioration and replace if necessary.
4. The reed stopper clearance should be
4.6mm
INSTALLATION
Install the reed valve in the reverse order of
removal.
installing, be careful not to
bend or twist the tubes and check for
proper installation.
