2NM/2NX/2NY/2NZ/2P0/2P6-1

2-2-21

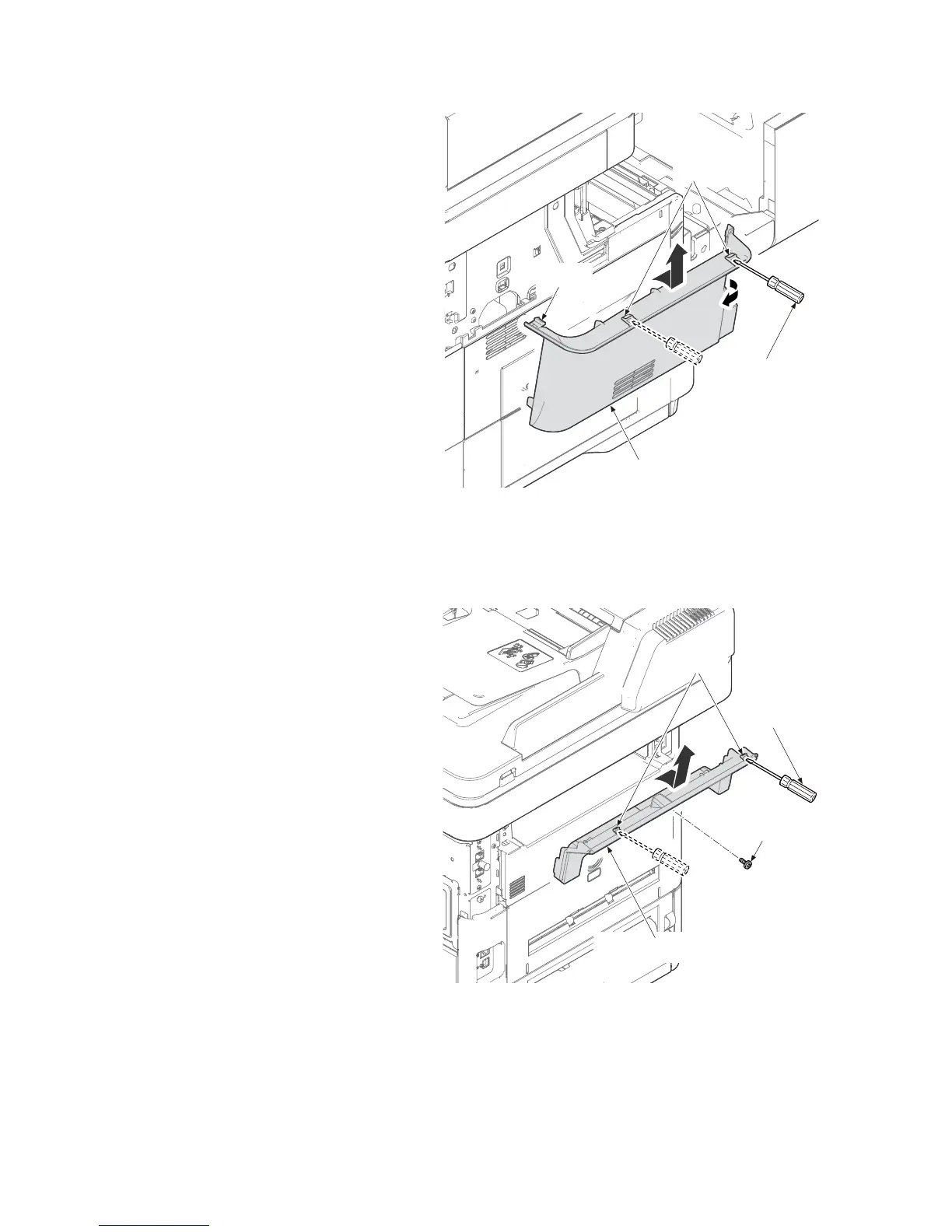

7. Release two hooks using a flat screw

driver and remove the left upper cover.

Figure 2-2-17

8. Remove the screw from the center stay

cover.

9. Release two hooks using a flat screw

driver and remove the center stay

cover.

Figure 2-2-18

Hook

Hooks

Left upper cover

Flat screw driver

Hooks

Center stay cover

Flat screw

driver

Screw
