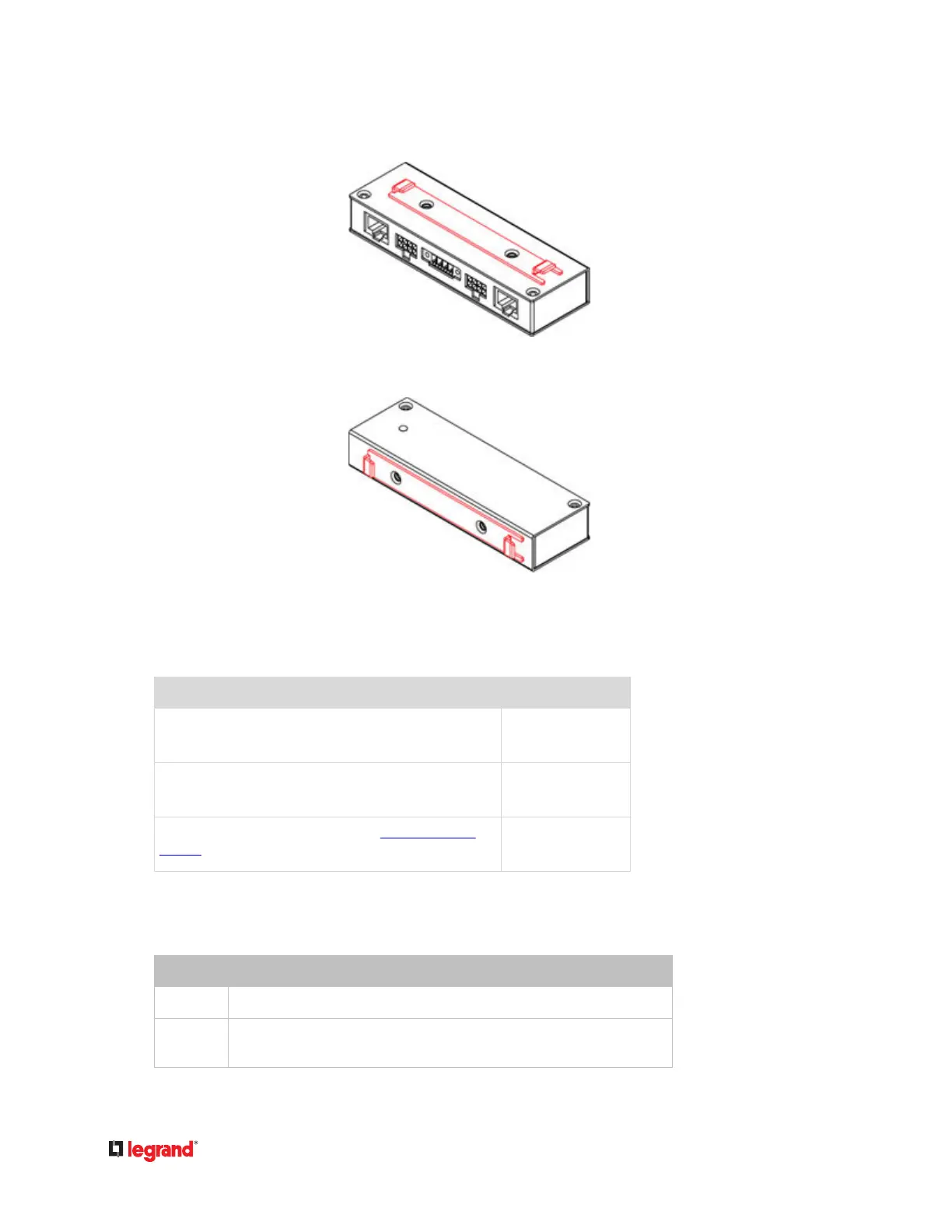

▶ Bracket installed onto DX2‑DH2C2's boom:
▶
Bracket installed onto the side of DX2‑DH2C2:
DX2-DH2C2 LED States
The DX2-DH2C2 controller's LED ashes when performing any of the following acons.
Acons LED states
A valid smart card is being scanned Fast blinking
• 5 Hz frequency•
The door handle lock is open Slow blinking
• 1 Hz frequency•
Sensor rmware is being updated. See
Sensor Firmware
Update (on page 58).
Slightly fast blinking
• 2.5 Hz frequency•
DX2 Temperature and Humidity Sensors
There are ve types of DX2 temperature and humidity sensor packages.
Package Package content
DX2‑T1
Contains one DX2
‑T1 sensor package, which detects the temperature.
DX2‑T1H1
Contains one DX2
‑T1H1 sensor package, which detects both the
temperature and humidity.
11
