LEGRAND DX2 Series User Manual

Numbers Components

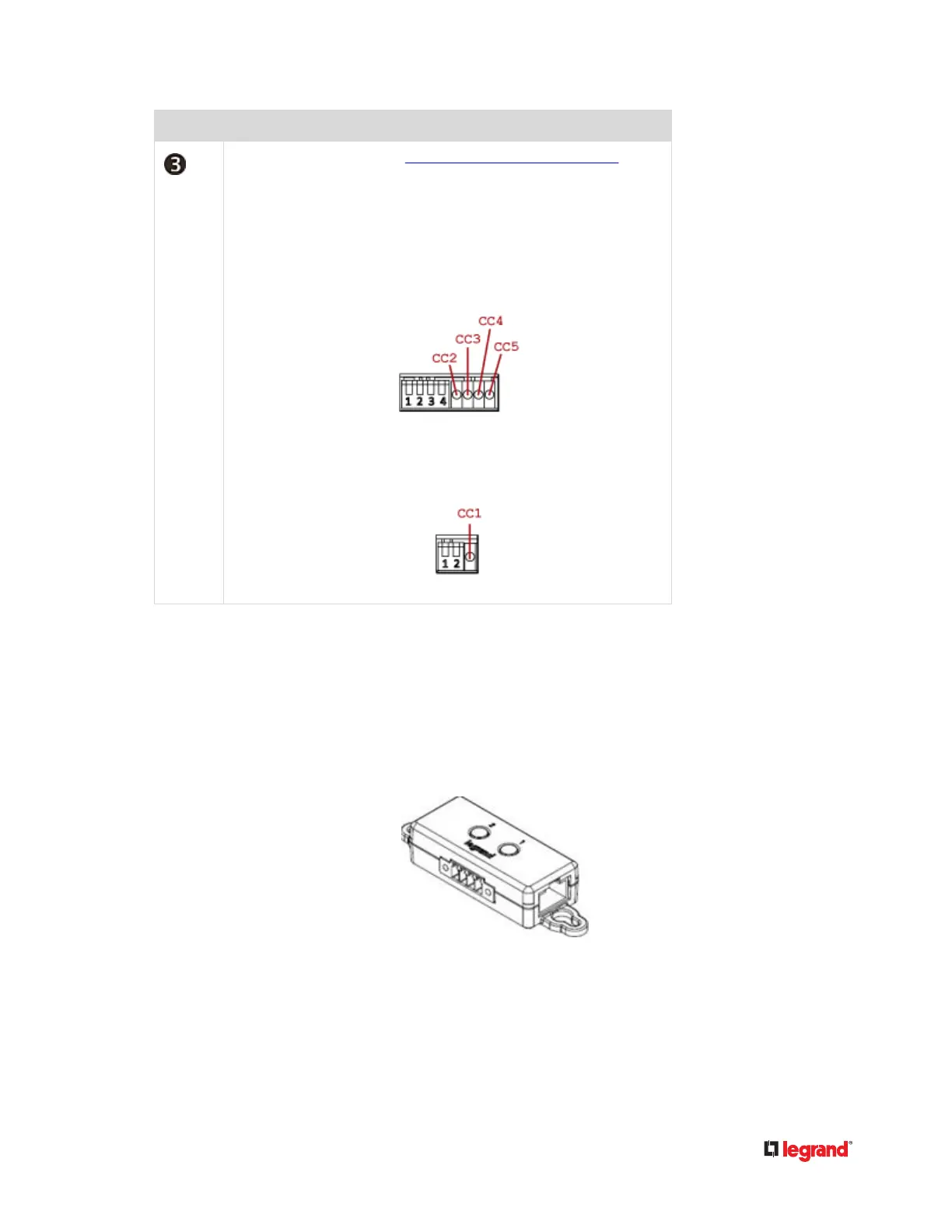

CC status LEDs. For details, see DX2-CC2 Contact Closure Sensor LEDs (on
page 25).
High-speed ashing of CC1 LED indicates that the sensor is currently
upgrading rmware.
• Top row:•
The four LEDs, from left to right, indicate the states of CC2,
CC3, CC4 and CC5 respectively.
• Boom row:•
The LED indicates the CC1 state.
DX2-PD2 - Dual Powered Dry-Contact Sensor
DX2‑PD2 provides:
• Two RJ45 connectors - for connecon to the Sensor port of the supported managing device and•
chaining
• Two LEDs•
• Two powered dry contacts•
▶
Details:
• Powered dry contact is a switchable•
• Used for low power control applicaons, such as indicator light, buzzer, or 12 volt relay•
• The inial state (aer power on) of a powered dry contact is OFF•
30
