Appendix A Supported Maximum Sensor Distance
▶ Maximum cable distance for most sensor packages:
DX and DX2 sensor packages support a total cabling length up to 98 feet (30 meters), except for door
handle sensors: DX‑PD2C5, DX2-DH2C2, and DX2-PD2C5.
▶ Excepon -- DX2-DH2C2, DX‑PD2C5, DX2-PD2C5:

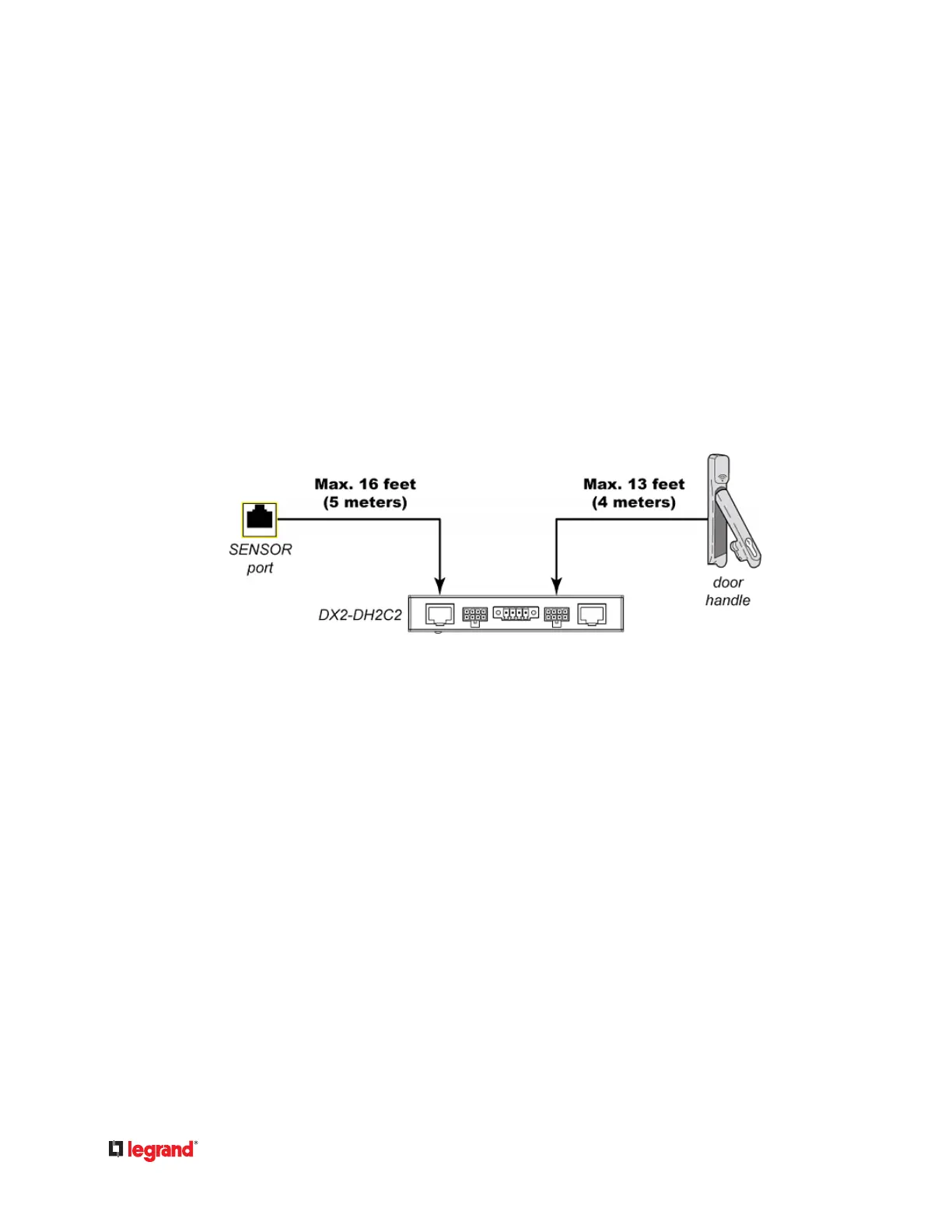

Maximum cabling length of 29 feet (9 meters) instead of 98 feet (30 meters). The following illustrates
DX2‑DH2C2 cabling restricon, but the same principle also applies to DX2-PD2C5/DX‑PD2C5.
• The length from the managing device to DX2‑DH2C2 is up to 16 feet (5 meters).•
• The length from DX2‑DH2C2 to the connected door handle is up to 13 feet (4 meters).•
▶
Sensor hubs:
A sensor hub is used to increase the total distance of a sensor package. DO NOT cascade sensor hubs.
Dierent sensor hubs support dierent sensor packages:
• DX2-REMHUB4 and DX2-ENVHUB4 both support all sensor packages.•
•
DX2-REMHUB4 is only supported with SRC 0800/0803.
•
55
