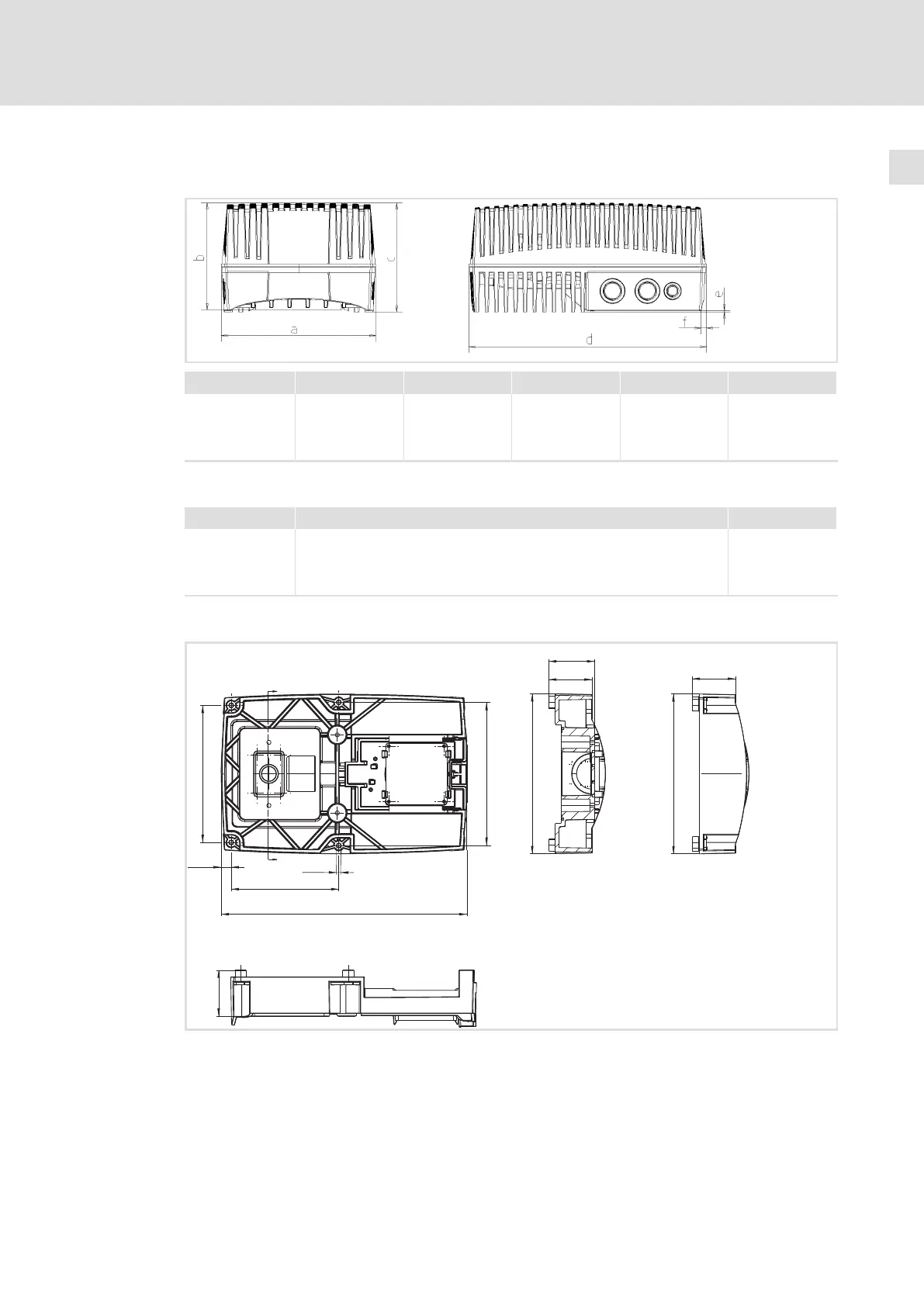

Technische Daten
Abmessungen
3
21
EDK82MV752 DE/EN/FR 7.2
3.3 Abmessungen
82mot443
Typ a [mm] b [mm] c [mm] d [mm] e [mm]
E82MV302_4B
E82MV402_4B
E82MV552_4B
E82MV752_4B
214
(incl. Dichtung)
163
(208, incl. Lüfterbau-
gruppe)
150
329
(incl. Dichtung)
15
Mechanische Ausführung
Typ Verschraubungen Gewicht
E82MV302_4B
E82MV402_4B
E82MV552_4B
E82MV752_4B
3 × M25, 4 × M16
(Gewindelänge 10 mm, ohne Gegenmutter)
9.9 kg
(11.7 kg incl. Lüfter-
baugruppe)
Abmessungen der Lüfterbaugruppe E82ZMV
82mot460
206
172
180
140
5.5
320
5656
60
60
16
206
