Mechanical installation
motec with motor or geared motor
Wiring according to EMC (CE−typical drive system)
4
81
EDK82MV752 DE/EN/FR 7.2

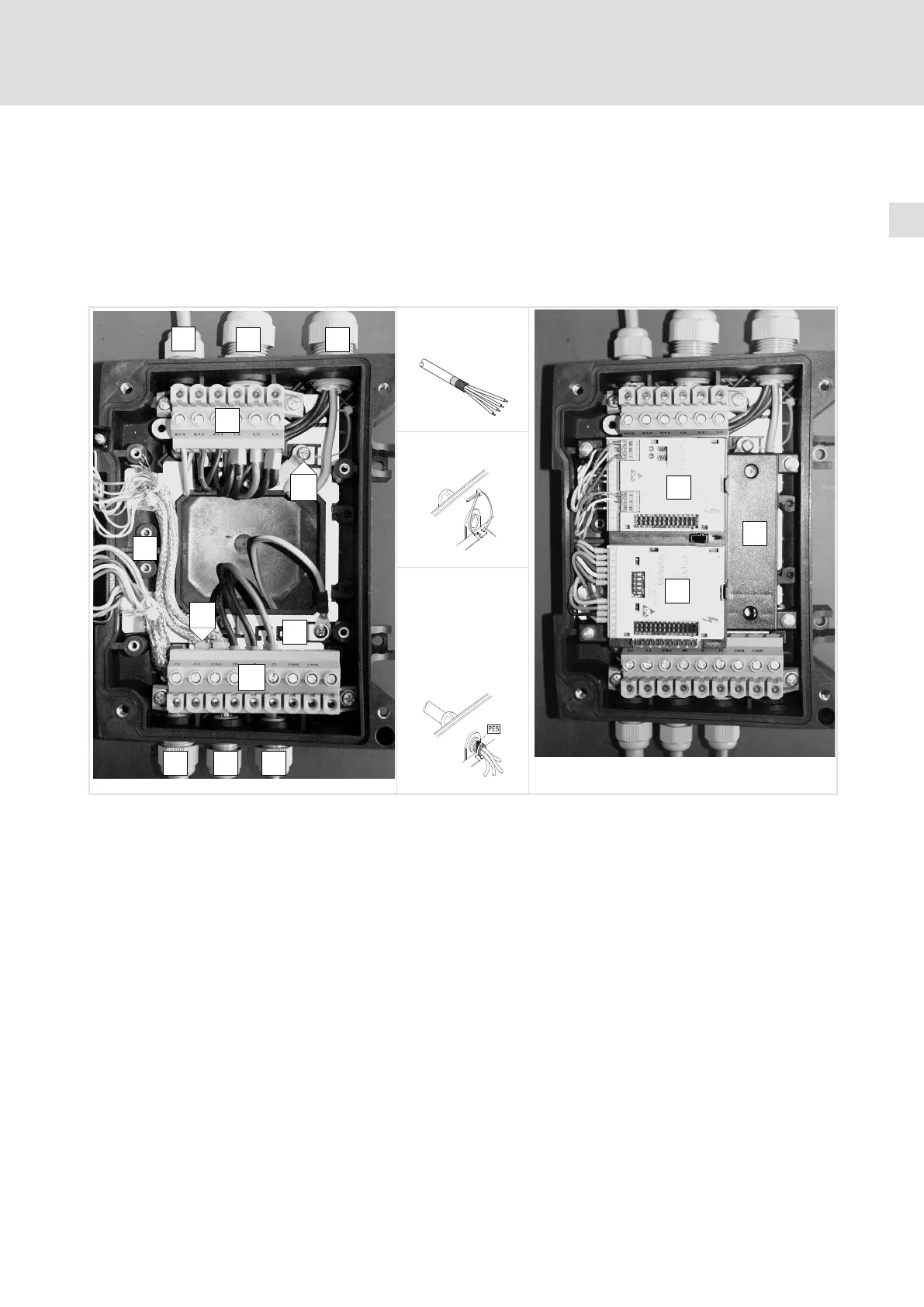

4.1.1 Wiring according to EMC (CE−typical drive system)
Conditions for trouble−free operation:
ƒ Except for the mains cable, use shielded cables only.
ƒ The shield must be carefully connected to PE (see below).
ƒ Connect motor and mains PE conductors to separate PE terminals.
A
C
X1
E
82mot395
X2
D
B B
E E
F
G
Shield connection:
1. Prepare the cable
82mot396
I
H
J
2. Insert the cable tie
3. Lay the cable into
the cable tie and
tighten it. The
shield must be
tightly connected
to the shield
sheet.
Connecting cable for X1 Terminal strip mains connection
l Relay (for device version 001 or 151) or X2 Terminal strip motor connection
l electronic switching output (in case of device versions
152)
PES HF shield connection by large surface connection to PE
Mains cables L1, L2, L3, PE (loop through 2 cables to the
mains)
PE connection for mains cables
Shielded control cables; fix the shield tightly to the sheet
with the cable tie
Shielded control cables
Isolated terminal (e.g. star point for star connected
motor)
PE connection of the motor cable
Bus−I/O function module in slot 1
Fieldbus function module in slot 2
FIF support
