5.5 motec assembly

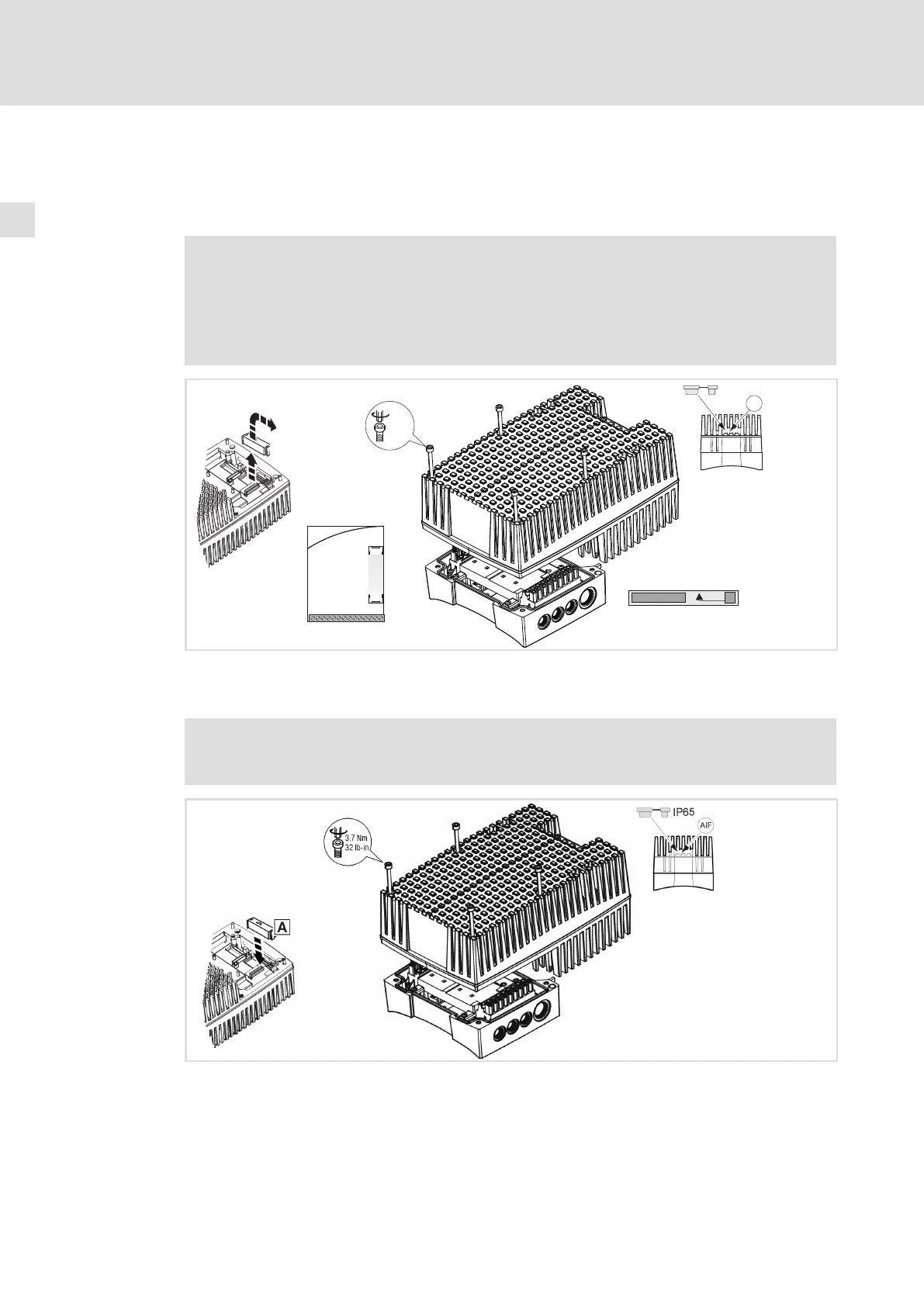

5.5.1 motec with function modules
Stop!
ƒ Before mounting, remove the protective cover of the function module and
FIF cover and keep them! Otherwise the motec can be damaged!
ƒ Before commissioning, complete the motec nameplate with the sticker
which comes with the function module.
8200mot459
2
3.7 Nm
32 lb-in
1
S
Standard-I/O
AIF
IP65
0
5.5.2 motec without function modules
Stop!
ƒ The FIF cover must be plugged on. Otherwise, the motec is inoperable!
8200mot438
