3.5.31 Delay elements (DIGDEL)
3−184
l
EDSVS9332P−EXT DE 2.0
3.5.31.3 General delay
A general delay causes any signal change at the input DIGDELx−IN to be passed onto the output
DIGDELx−OUT only after the time set under C0721 or C0726 has elapsed.
t
t
DIGDEL1−IN
DIGDEL1−OUT
t
DIGDEL1−TIMER
ÎÎÎ
C0721

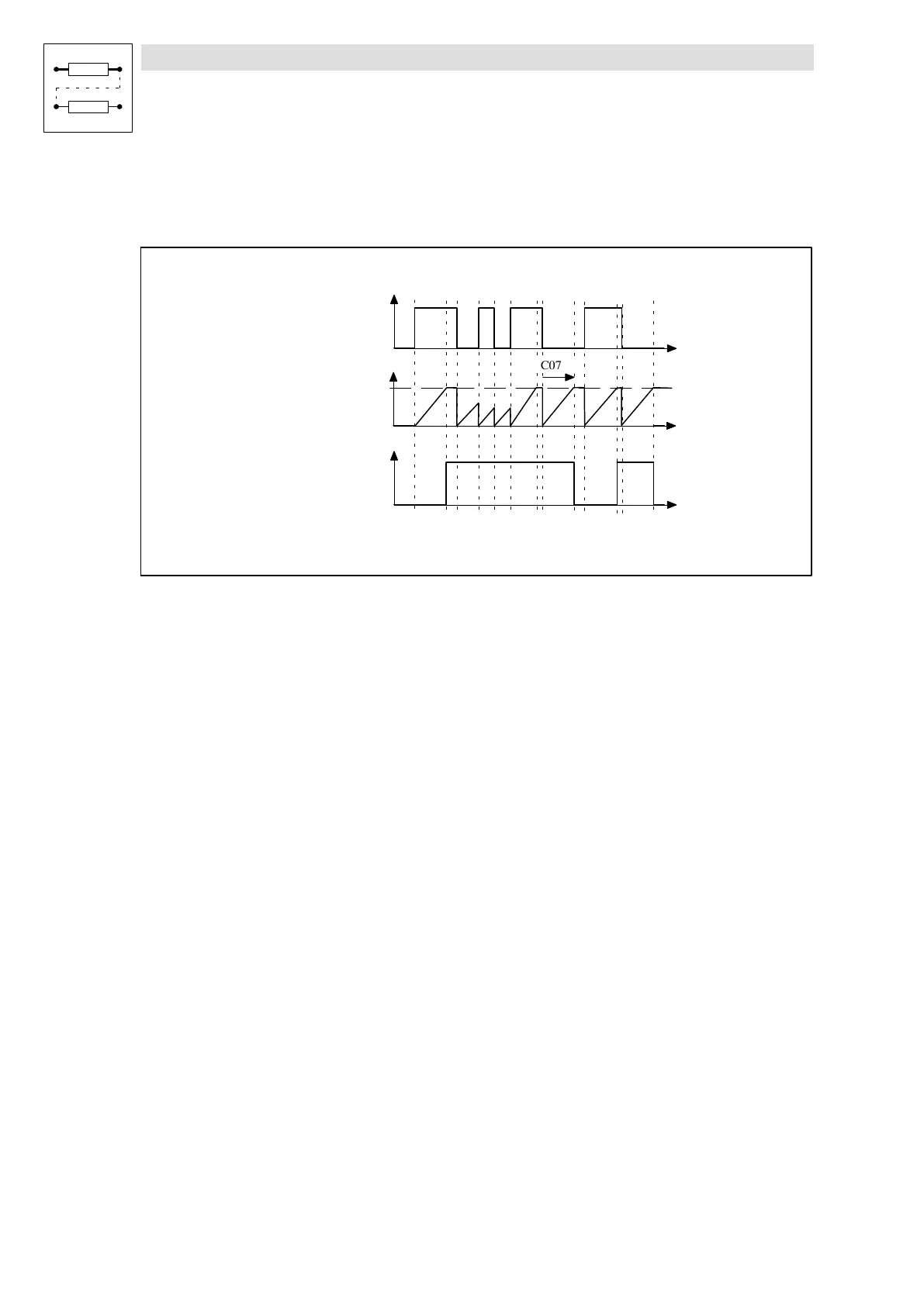

Fig. 3−134 General delay
l
The time element is started with any edge at the input DIGDELx−IN.
l When the timer (can be set under C0721 or C0726) has reached the upper limit, the output
DIGDELx−OUT is set to the same value as the input DIGDEL1−IN.
