3.5.27 Master frequency input (DFIN)
3−164
l
EDSVS9332P−EXT DE 2.0

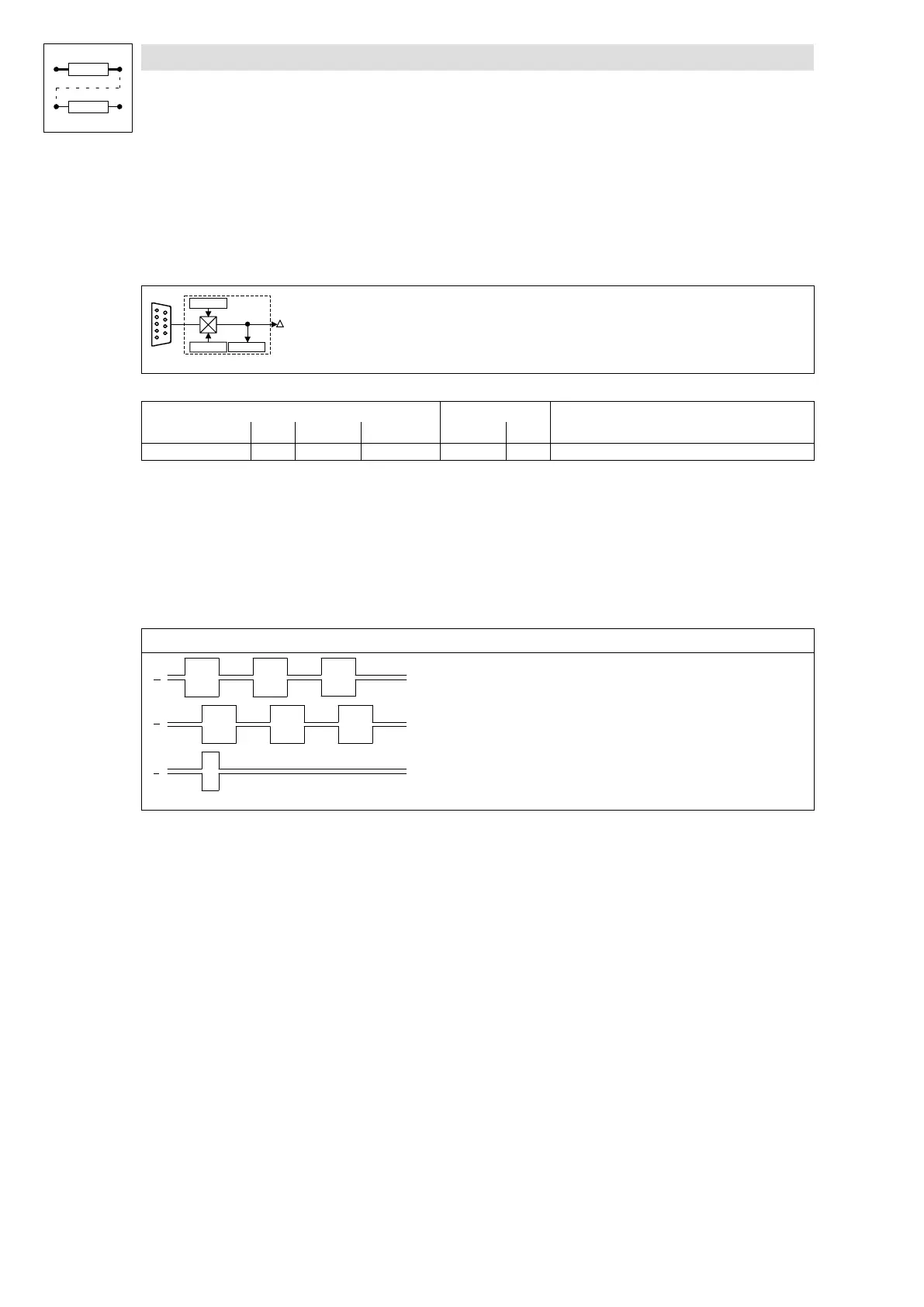

3.5.27 Master frequency input (DFIN)
Purpose
Converting and scaling a power pulse current at the digital frequency input X9 into a speed and phase
setpoint. The digital frequency is transferred in a high−precision mode (with offset and gain errors).
C0425
DFIN
DFIN-OUT
C0426
X9
C0427
Fig. 3−116 Digital frequency input (DFIN)
Signal
Source Note
Name Type DIS DIS format CFG List
DFIN−OUT phd C0426 dec [rpm] − −
Function
l The input X9 is designed for signals with TTL level.
l In the event of digital frequency cascade or digital frequency rail, adapt the drive to the
connected encoder or controller via C0425.
l The input of a zero track is optional.
l Via C0427 the following input signals can be evaluated:
C0427 = 0
O
O
B
B
Z
Z
Fig. 3−117 Phase−delayed signal sequence (CW rotation)
CW rotation Track A is leading track B by 90 (positive value at DFIN−OUT).
CCW rotation Track A is lagging track B by 90 (negative value at DFIN−OUT).
