Lenze EVS9323EP User Manual

Function library
Function blocks
3.5.64 Edge evaluation (TRANS)
3−270
l
EDSVS9332P−EXT DE 2.0
3.5.64 Edge evaluation (TRANS)
Purpose
This function is used to evaluate digital signal edges and convert them into pulses of a defined
duration.
t
0
TRANS1-IN
C0714
TRANS1-OUT
TRANS1
C0711
C0710
C0713

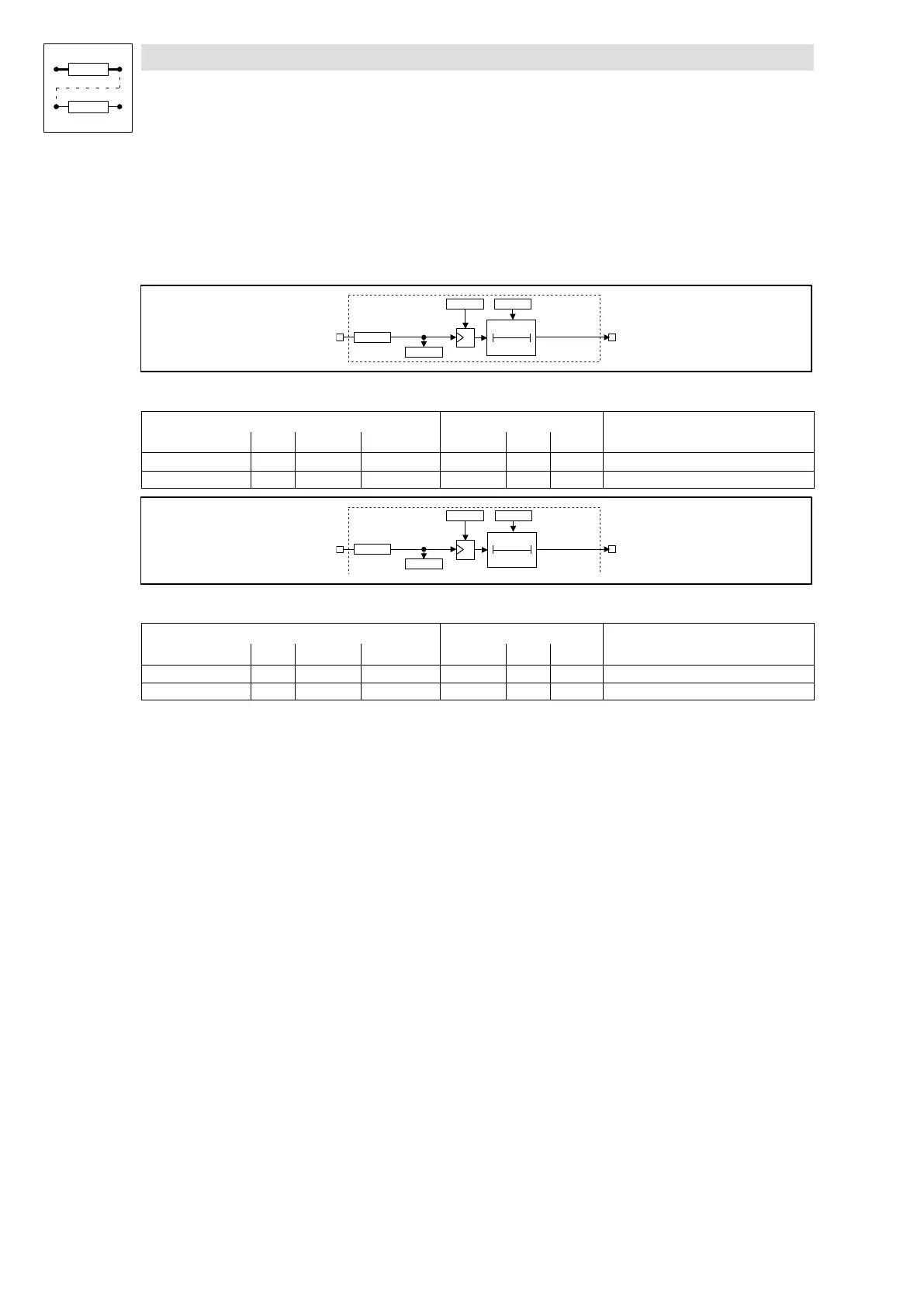

Fig. 3−213 Edge evaluation (TRANS1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS1−IN d C0714 bin C0713 2 1000 −
TRANS1−OUT d − − − − − −
t
0
TRANS2-IN
C0719
TRANS2-OUT
TRANS2
C0716
C0715
C0718
Fig. 3−214 Edge evaluation (TRANS2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
TRANS2−IN d C0719 bin C0718 2 1000 −
TRANS2−OUT d − − − − − −
Function
This FB is an edge evaluator which can be retriggered. This FB can react to different events. The
following functions can be selected under code C0710 or C0716:
l Positive edge
l Negative edge
l Positive or negative edge
