3.5.59 Switching points (SP)
Two FBs (SP1, SP2) are available.
Purpose
Switches an output signal if the drive moves within a certain range (achieving a camgroup, triggering
spray jets).
SP1
SP1
C1641/1
C1641/2
C1641/3
C1641/4
C1641/5
C1641/6
C1641/7
C1641/8
C1641/9
C1642/1
SP1-STAT1
SP1-STAT2
SP1-STAT3
SP1-STAT4
SP1-STAT5
SP1-STAT6
SP1-STAT7
SP1-STAT8
C1641/10
C1641/11
C1641/12
C1641/13
C1641/14
C1641/15
C1641/16
C1645
VTPOS
SP1-L-IN
IN1-1
IN1-2
IN2-1
IN2-2
IN3-1
IN3-2
IN4-1
IN4-2
IN5-1
IN5-2
IN6-1
IN6-2
IN7-1
IN7-2
IN8-1
IN8-2
C1644/1
C1640/1
SP1-RESET
C1643/1

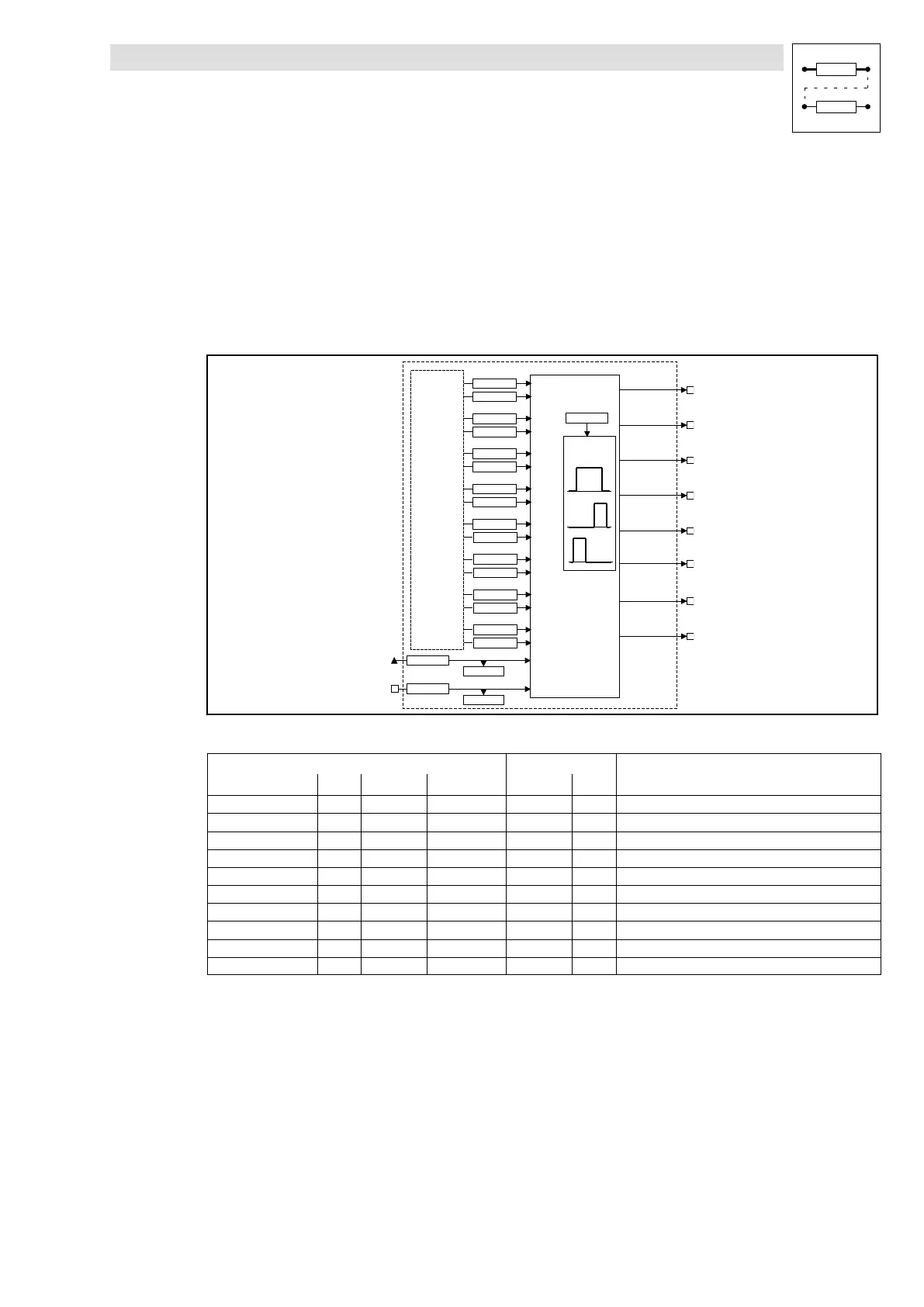

Fig. 3−199 Function block SP1
Signal
Source Note
Name Type DIS DIS format CFG List
SP1−L−IN ph C1644/1 dec [inc] C1642/1 3 65536 inc = 1 revolution
SP1−RESET d C1643/1 bin C1640/1 2 −
SP1−STAT1 d − − − − −
SP1−STAT2 d − − − − −
SP1−STAT3 d − − − − −
SP1−STAT4 d − − − − −
SP1−STAT5 d − − − − −
SP1−STAT6 d − − − − −
SP1−STAT7 d − − − − −
SP1−STAT8 d − − − − −
