Lenze EVS9323EP User Manual

Function library
Function blocks
3.5.34 Free analog display code (DISA)
3−187
l
EDSVS9332P−EXT DE 2.0
3.5.34 Free analog display code (DISA)
One function block (DISA) is available.
Purpose
Display analog values in the following formats:
l Analog (%)
l Decimal (dec)
l Hexadecimal (hex)
DISA-IN1
C1690/1 C1691/1 C1692/1 C1693/1
DISA-IN2
C1690/2 C1691/2 C1692/2 C1693/2
DISA-IN3
C1690/3 C1691/3 C1692/3 C1693/3
DISA-IN4
C1690/4 C1691/4 C1692/4 C1693/4
DISA-IN5
C1690/5 C1691/5 C1692/5 C1693/5
DISA-IN6
C1690/6 C1691/6 C1692/6 C1693/6
DISA-IN7
C1690/7 C1691/7 C1692/7 C1693/7
DISA-IN8
C1690/8 C1691/8 C1692/8 C1693/8
DISA-IN9
C1690/9 C1691/9 C1692/9 C1693/9
DISA-IN10
C1690/10
C1691/10 C1692/10 C1693/10
%dechex
DISA

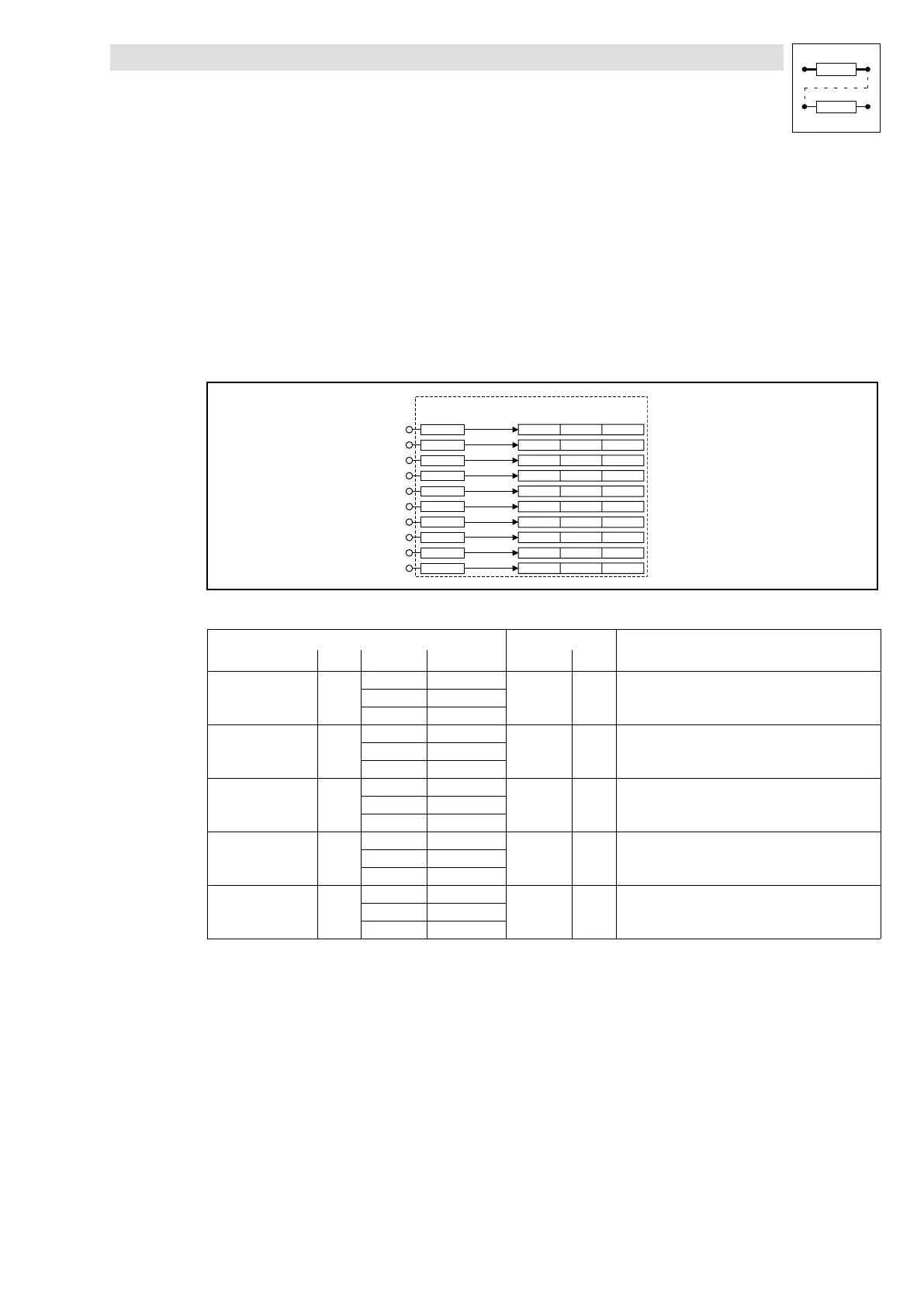

Fig. 3−137 Function block DISA
Signal
Source Note
Name Type DIS DIS format CFG List
DISA−IN1 a
C1691/1 dec [%]
C1690/1 1 −
C1692/1 dec
C1693/1 hex
DISA−IN2 a
C1691/2 dec [%]
C1690/2 1 −
C1692/2 dec
C1693/2 hex
DISA−IN3 a
C1691/3 dec [%]
C1690/3 1 −
C1692/3 dec
C1693/3 hex
DISA−IN4 a
C1691/4 dec [%]
C1690/4 1 −
C1692/4 dec
C1693/4 hex
DISA−IN5 a
C1691/5 dec [%]
C1690/5 1 −
C1692/5 dec
C1693/5 hex
