3.5.58 Angle value selection (SELPH)
3−249
l
EDSVS9332P−EXT DE 2.0
3.5.58 Angle value selection (SELPH)
Two FBs (SELPH1, SELPH2) are available.
Purpose
Select one angle value from nine angle values and switch it to the output.
SELPH1
SELPH1-IN1
SELPH1
C1662/1
C1664/1
SELPH1-OUT
SELPH1-SELECT
C1661
C1663
SELPH1-IN2
C1662/2
C1664/2
SELPH1-IN3
C1662/3
C1664/3
SELPH1-IN4
C1662/4
C1664/4
SELPH1-IN5
C1662/5
C1664/5
SELPH1-IN6
C1662/6
C1664/6
SELPH1-IN7
C1662/7
C1664/7
SELPH1-IN8
C1662/8
C1664/8
FIXED0INC
1
2
3
4
5
6
7
8
0
8
C1660
0

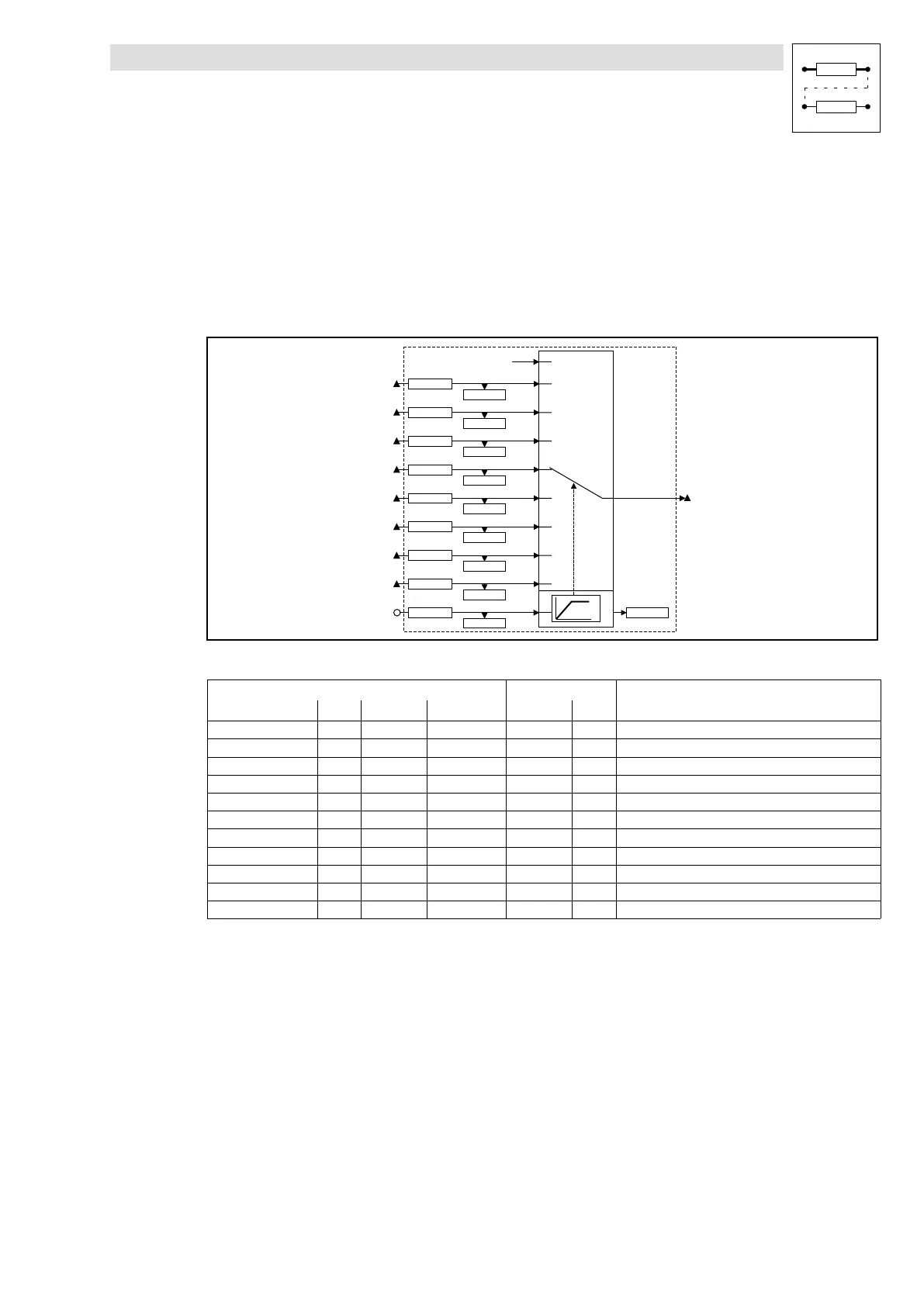

Fig. 3−197 Function block SELPH1
Signal
Source Note
Name Type DIS DIS format CFG List
SELPH1−SELECT a C1663 dec C1661 1 −
SELPH1−IN1 ph C1664/1 dec [inc] C1662/1 3 −
SELPH1−IN2 ph C1664/2 dec [inc] C1662/2 3 −
SELPH1−IN3 ph C1664/3 dec [inc] C1662/3 3 −
SELPH1−IN4 ph C1664/4 dec [inc] C1662/4 3 −
SELPH1−IN5 ph C1664/5 dec [inc] C1662/5 3 −
SELPH1−IN6 ph C1664/6 dec [inc] C1662/6 3 −
SELPH1−IN7 ph C1664/7 dec [inc] C1662/7 3 −
SELPH1−IN8 ph C1664/8 dec [inc] C1662/8 3 −
SELPH1−OUT ph − − − − −
− − C1660 dec − − Displays the current selection
