3.5.35 Free phase display code (DISPH)
One function block (DISPH) is available.
Purpose
Display phase values.
DISPH-IN1
C1695/1
DISPH-IN2
C1695/2
DISPH-IN3
C1695/3
DISPH-IN4
C1695/4
DISPH-IN5
C1695/5
DISPH-IN6
C1695/6
DISPH-IN7
C1695/7
DISPH-IN8
C1695/8
DISPH-IN9
C1695/9
DISPH-IN10
C1695/10
DISPH
C1696/1
C1696/2
C1696/3
C1696/4
C1696/5
C1696/6
C1696/7
C1696/8
C1696/9
C1696/10

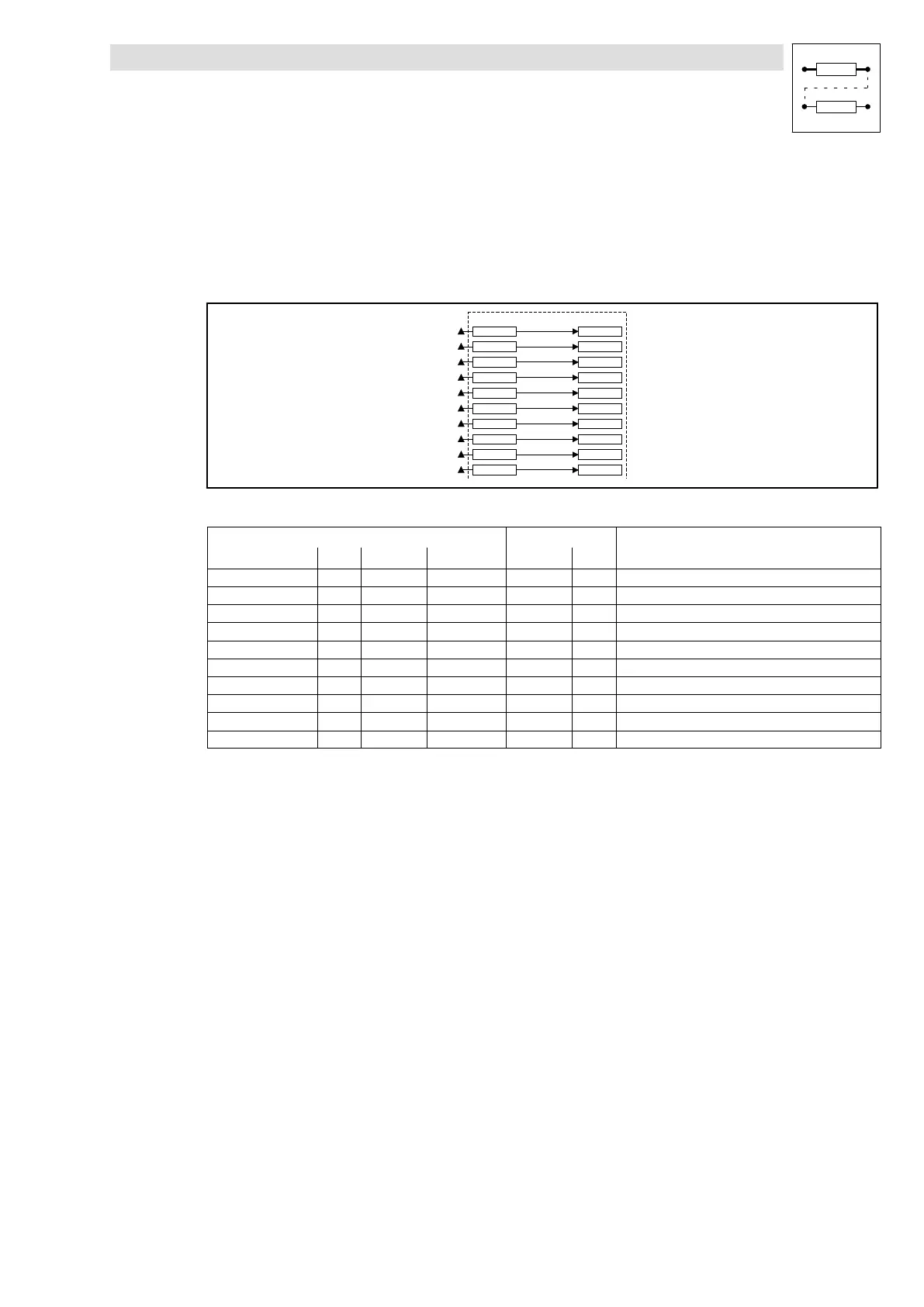

Fig. 3−138 Function block DISPH
Signal
Source Note
Name Type DIS DIS format CFG List
DISPH−IN1 ph C1696/1 dec [inc] C1695/1 3 −
DISPH−IN2 ph C1696/2 dec [inc] C1695/2 3 −
DISPH−IN3 ph C1696/3 dec [inc] C1695/3 3 −
DISPH−IN4 ph C1696/4 dec [inc] C1695/4 3 −
DISPH−IN5 ph C1696/5 dec [inc] C1695/5 3 −
DISPH−IN6 ph C1696/6 dec [inc] C1695/6 3 −
DISPH−IN7 ph C1696/7 dec [inc] C1695/7 3 −
DISPH−IN8 ph C1696/8 dec [inc] C1695/8 3 −
DISPH−IN9 ph C1696/9 dec [inc] C1695/9 3 −
DISPH−IN10 ph C1696/10 dec [inc] C1695/10 3 −
