Lenze EVS9323EP User Manual

Function library
Function blocks
3.5.51 Process controller (PCTRL1)
3−237
l
EDSVS9332P−EXT DE 2.0
3.5.51 Process controller (PCTRL1)
Purpose
The FB is used, for instance, as a higher−level controller (dancer position controller, tension controller,
pressure controller etc.).
The control characteristic follows the ideal PID algorithm, but it can also be changed over to a PI or
P characteristic.
1
0
2
Vp
Vp2
Vp3
Vp2
Vp
+
-
C0222
soll1
soll2
C0329
C0223
C0224
PCTRL1-SET
C0808/1
PCTRL1-INACT
C0808/2
C0333
C0332
3
2
PCTRL1-OUT
C0808/4
C0337
C0809/1
PCTRL1-INFLU
C0808/3
PCTRL1-ACT
PCTRL1-I-OFF
C0809/2
3
C0803
C0800
C0801
C0804
C0805
C0802
PCTRL1-ADAPT
C0336
PCTRL1
±100%
C0222
C0325
C0222
C0325
C0326
C0327
C0328
RESET

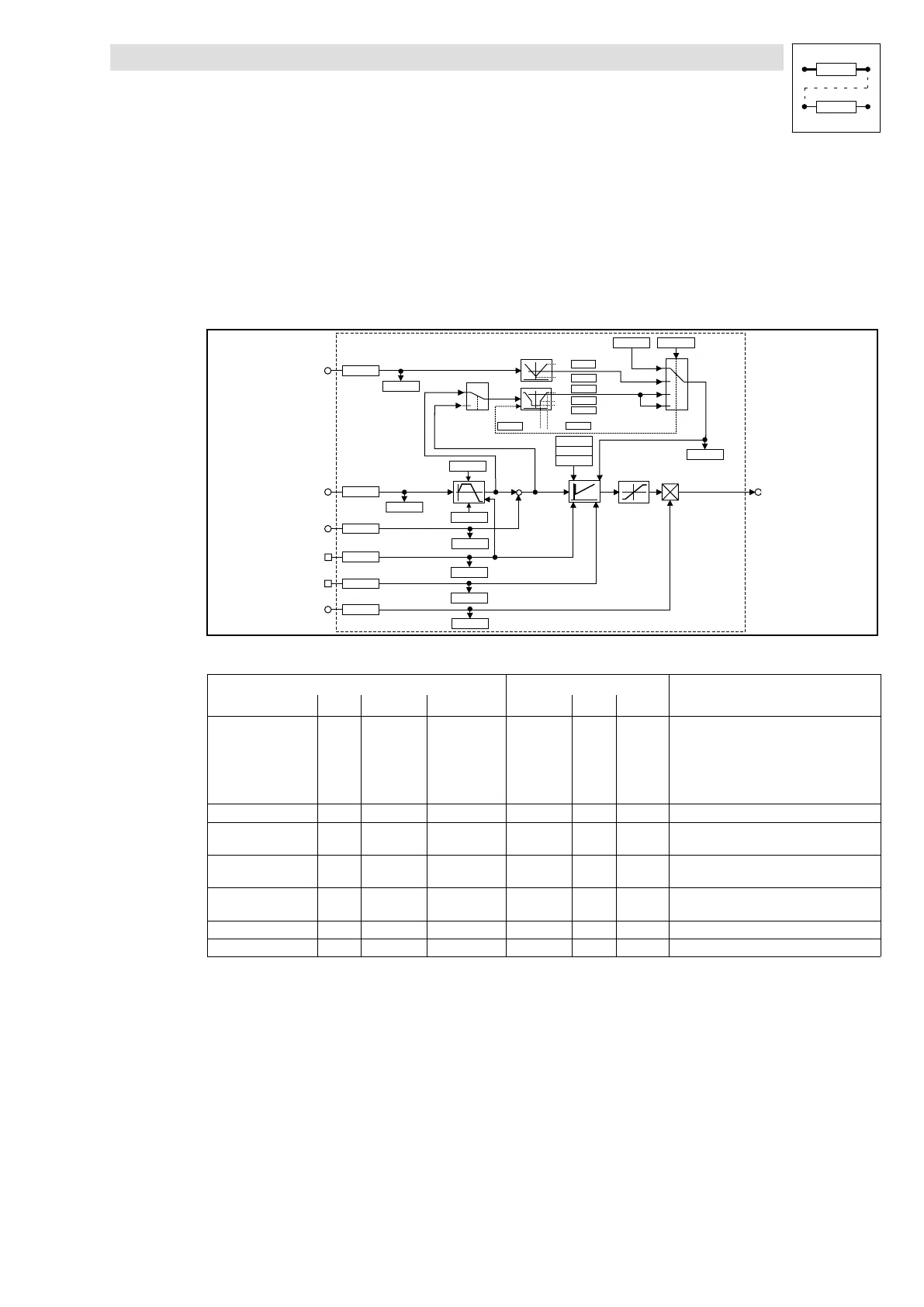

Fig. 3−184 Process controller (PCTRL1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
PCTRL1−SET a C0808/1 dec [%] C0800 1 1000 Input of the process setpoint. Possible
value range: ±200%. The time
characteristic of step−change signals can
be affected via the ramp function generator
(C0332 for the acceleration time; C0333 for
the deceleration time).
PCTRL1−ACT a C0808/2 dec [%] C0801 1 1000 Actual value input; value range ±200%
PCTRL1−INFLU a C0808/3 dec [%] C0802 1 1000 Evaluation or suppression of the output
signal; value range ±200%
PCTRL1−ADAPT a C0808/4 dec [%] C0803 1 1000 Online change of the P gain;
value range ±200%
PCTRL1−INACT d C0809/1 bin C0804 2 1000 Online deactivation of the process
controller
PCTRL1−I−OFF d C0809/2 bin C0805 2 1000 Online setting of the I component to zero
PCTRL1−OUT a − − − − − −
Function
Setpoint and actual value are sent to the process controller via the corresponding inputs and
processed according to the selected control algorithm (control chararacteristic).
