3.5.47 Logic NOT
3−223
l
EDSVS9332P−EXT DE 2.0
3.5.47 Logic NOT
Purpose
Logic inversion of digital signals. The inversion can be used to control functions or generate status
information.
NOT1
1
NOT1-OUT
NOT1-IN
C0841
C0840

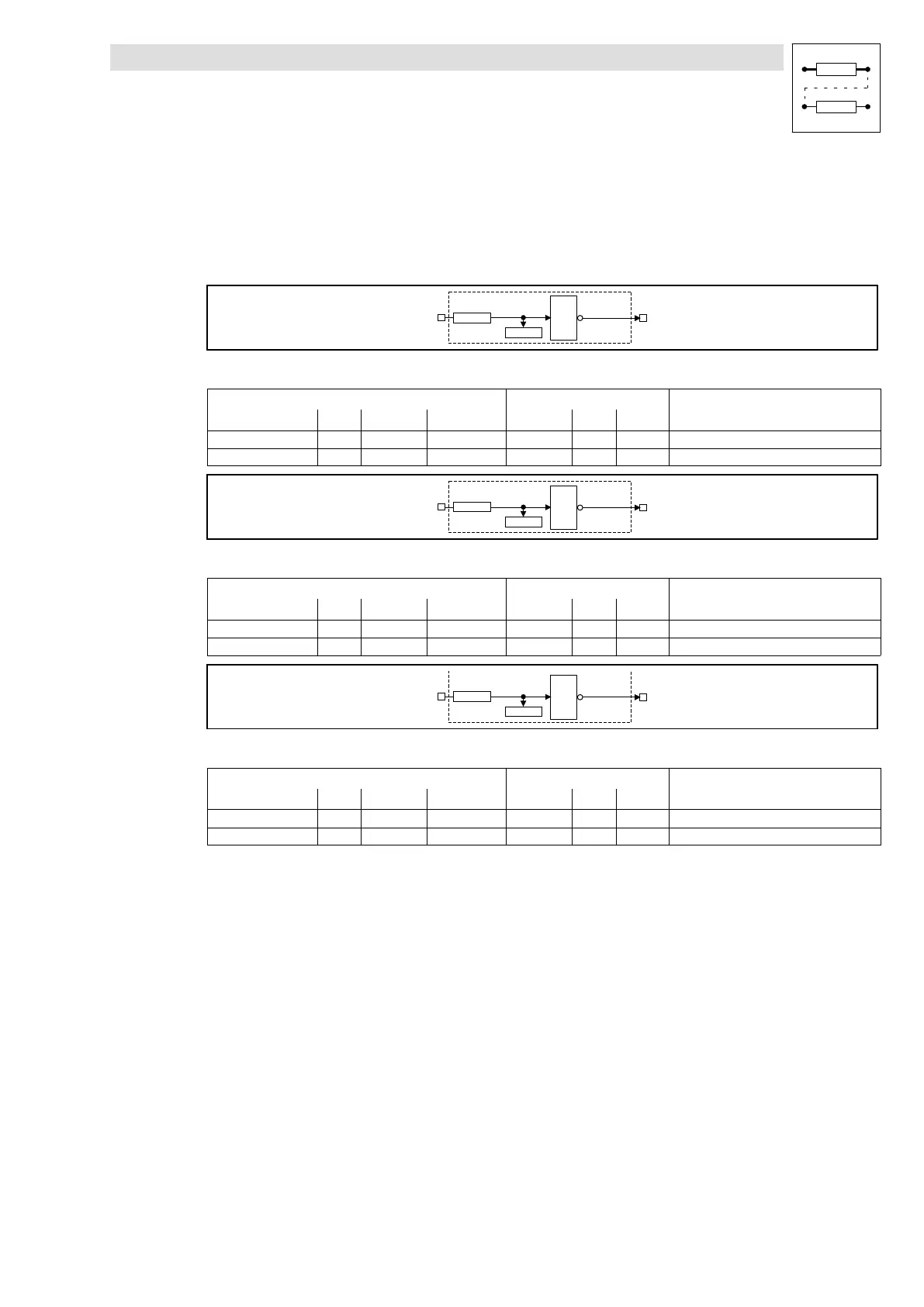

Fig. 3−167 Logic NOT (NOT1)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT1−IN d C0841 bin C0840 2 1000 −
NOT1−OUT d − − − − − −
NOT2
1
NOT2-OUT
NOT2-IN
C0843
C0842
Fig. 3−168 Logic NOT (NOT2)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT2−IN d C0843 bin C0842 2 1000 −
NOT2−OUT d − − − − − −
NOT3
1
NOT3-OUT
NOT3-IN
C0845
C0844
Fig. 3−169 Logic NOT (NOT3)
Signal
Source Note
Name Type DIS DIS format CFG List Lenze
NOT3−IN d C0845 bin C0844 2 1000 −
NOT3−OUT d − − − − − −
